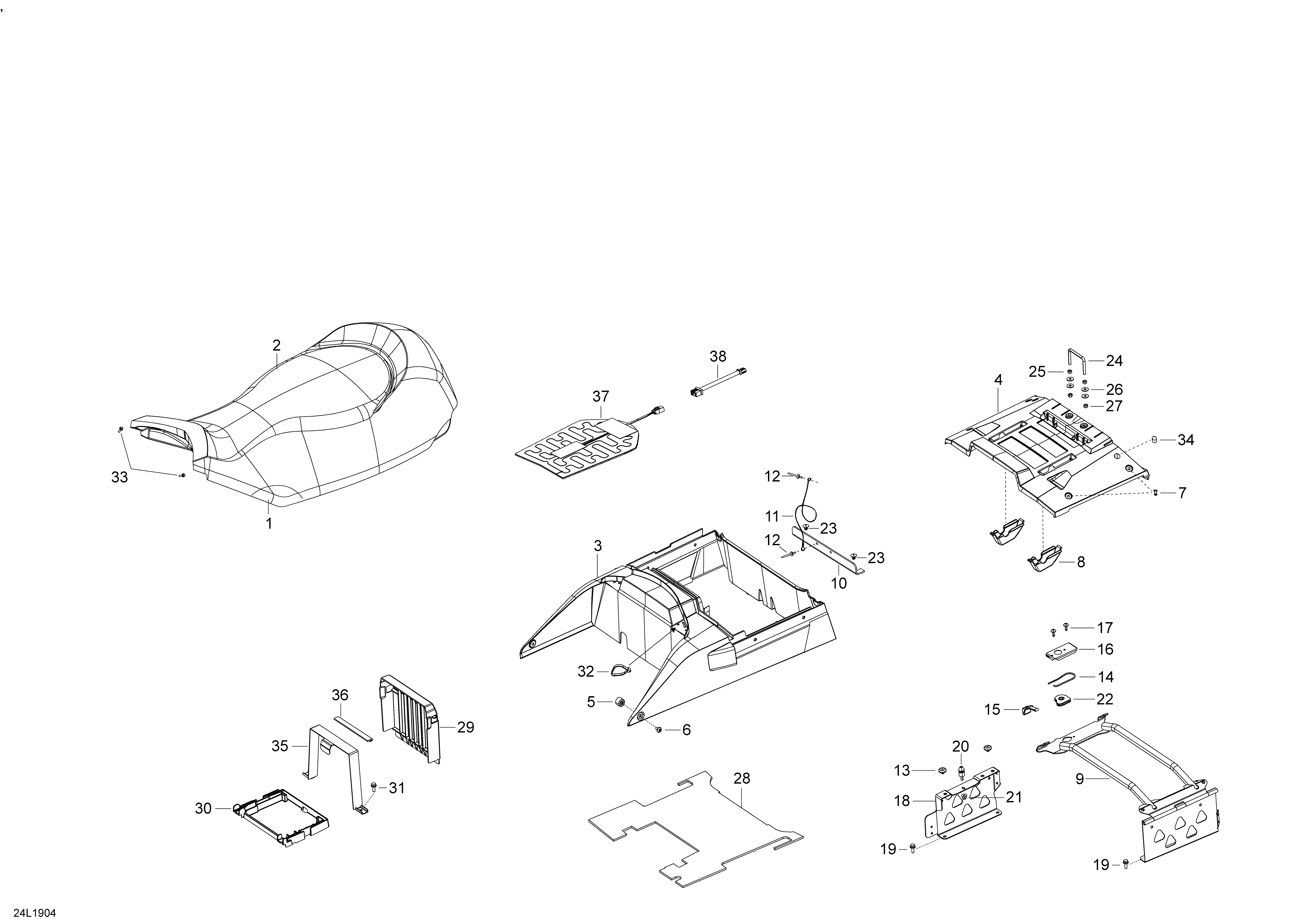

09- Seat Commander - 800R E-TEC для BRP Lynx 002 - Commander 800R E-TEC - 2019
-
№АртикулНазвание
-
1510006315 Front Seat FoamFront Seat Foam
-
2510006371 Front CoverFront Cover
-
2.5515178222 Heated Film. Not ShownHeated Film. Not Shown
-
3510006243 Storage BoxStorage Box
-
4510006244 Storage Box CoverStorage Box Cover
-
5510005147 BushingBushing
-
6250000675 Torx Truss Screw M6 x 12Torx Truss Screw M6 x 12
-
7293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
8510004999 CoverCover
-
9510005714 Lock tubeLock tube
-
10510005156 Cable Support PlateCable Support Plate
-
11293750070 Seat Retainer CableSeat Retainer Cable
-
12293150163 Rivet HucklokRivet Hucklok
-
13605452114 PlugPlug
-
14269700017 Latch SpringLatch Spring
-
15510005072 PullerPuller
-
16510005698 Lock Pin CoverLock Pin Cover
-
17250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
18510005845 Locking PlateLocking Plate
-
19207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
20605452035 Lock PinLock Pin
-
21233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
22510005044 Lock Pin GuideLock Pin Guide
-
23250000675 Torx Truss Screw M6 x 12Torx Truss Screw M6 x 12
-
24510004876 Fastener PinFastener Pin
-
25250000135 Hex. Nut M6Hex. Nut M6
-
2620117 WasherWasher
-
27232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
28510005043 FoamFoam
-
29510005079 Battery CoverBattery Cover
-
30515176804 Battery SupportBattery Support
-
31207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
32605627000 Tie-RapTie-Rap
-
33250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
34572051500 CapCap
-
35510005143 Battery StrapBattery Strap
-
36510005146 Strap CoverStrap Cover
