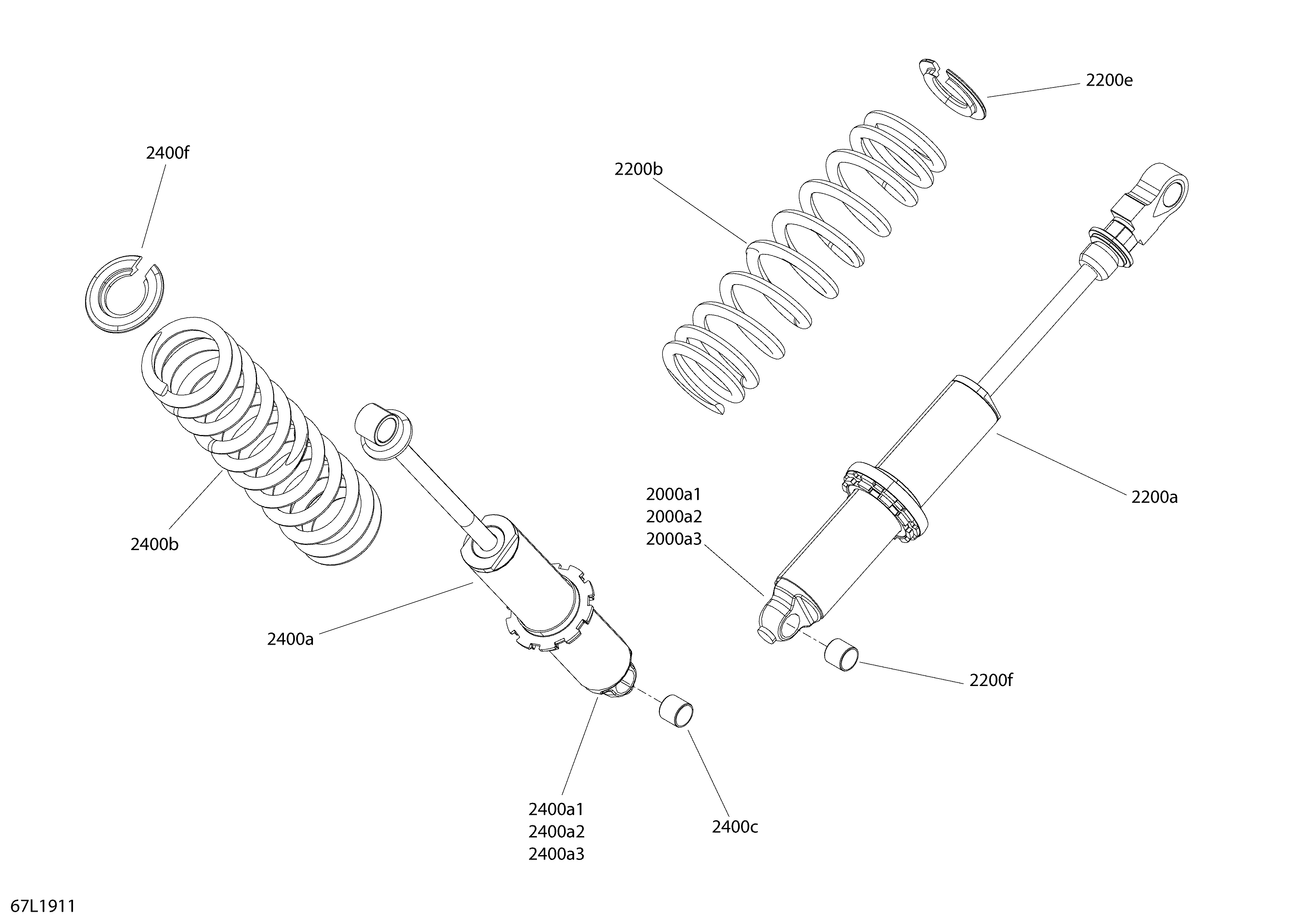

08- Rear Shocks - Commander 800 для BRP Lynx 002 - Commander 800R E-TEC - 2019
-
№АртикулНазвание
-
2200a503194899 Shock. Includes 2200a to 2200a3Shock. Includes 2200a to 2200a3
-
2200a1505070398 Air ValveAir Valve
-
2200a2505070399 ScrewScrew
-
2200a3505070400 O-RingO-Ring
-
2200b503194931 Spring 350 MM-40 N/MMSpring 350 MM-40 N/MM
-
2200e503194922 Spring StopperSpring Stopper
-
2200f503195134 Glide BearingGlide Bearing
-
2400a503194898 Shock. Includes 2400a to 2400a3Shock. Includes 2400a to 2400a3
-
2400a1505070398 Air ValveAir Valve
-
2400a2505070399 ScrewScrew
-
2400a3505070400 O-RingO-Ring
-
2400b503193294 Spring 220 MM-40 N/MMSpring 220 MM-40 N/MM
-
2400c503195134 Glide BearingGlide Bearing
-
2400f503194922 Spring StopperSpring Stopper
-
2400g5346754 Shock protector. not shownShock protector. not shown
