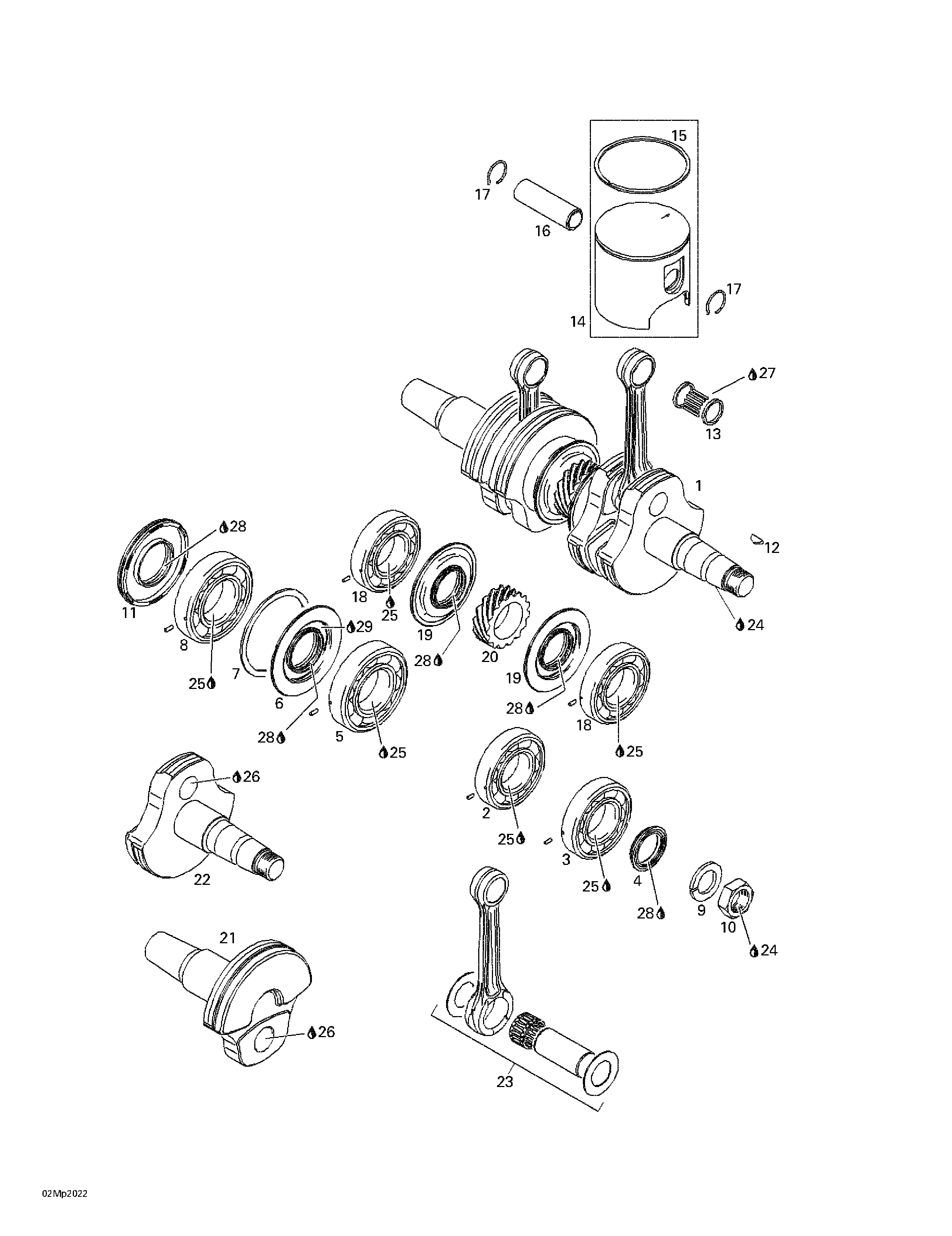

01- Crankshaft And Pistons для BRP Ski-Doo MX Z 800 - 2000
-
№АртикулНазвание
-
1420888401 CrankshaftAss'yCrankshaftAss'y
-
2420832635 Ball Bearing 6207Ball Bearing 6207
-
3420832576 Ball Bearing 6207Ball Bearing 6207
-
4420931790 Oil SealOil Seal
-
5420832601 Ball Bearing 6208Ball Bearing 6208
-
6420931910 Oil SealOil Seal
-
7420926190 WasherWasher
-
8420832601 Ball Bearing 6208Ball Bearing 6208
-
9420945759 Lock Washer 22 mmLock Washer 22 mm
-
10420842230 Hex. Nut M22Hex. Nut M22
-
11420931285 Oil SealOil Seal
-
12420246015 Woodruff KeyWoodruff Key
-
13420832425 Needle BearingNeedle Bearing
-
14420888431 Piston Ass'y (1 Ring 81.85 mm)Piston Ass'y (1 Ring 81.85 mm)
-
15420815215 ET RingET Ring
-
16420916370 Gudgeon PinGudgeon Pin
-
17420845106 Piston CirclipPiston Circlip
-
18420832576 Ball Bearing 6207Ball Bearing 6207
-
19290931455 Oil SealOil Seal
-
20420834355 Central Gear 15 TeethCentral Gear 15 Teeth
-
21420819030 Crankshaft (PTO side)Crankshaft (PTO side)
-
22420819060 Crankshaft (MAG side)Crankshaft (MAG side)
-
23420888403 RodRepairKit(MAGside)RodRepairKit(MAGside)
-
420888404 RodRepairKit(PTOside)RodRepairKit(PTOside)
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25293800023 Loctite 767, Antiseize Lubricant, 454 gLoctite 767, Antiseize Lubricant, 454 g
-
26413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
27413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
28420899271 Petamo Grease, GHY133N, 400 gPetamo Grease, GHY133N, 400 g
-
29293550021 Isoflex Grease, 45 gIsoflex Grease, 45 g
