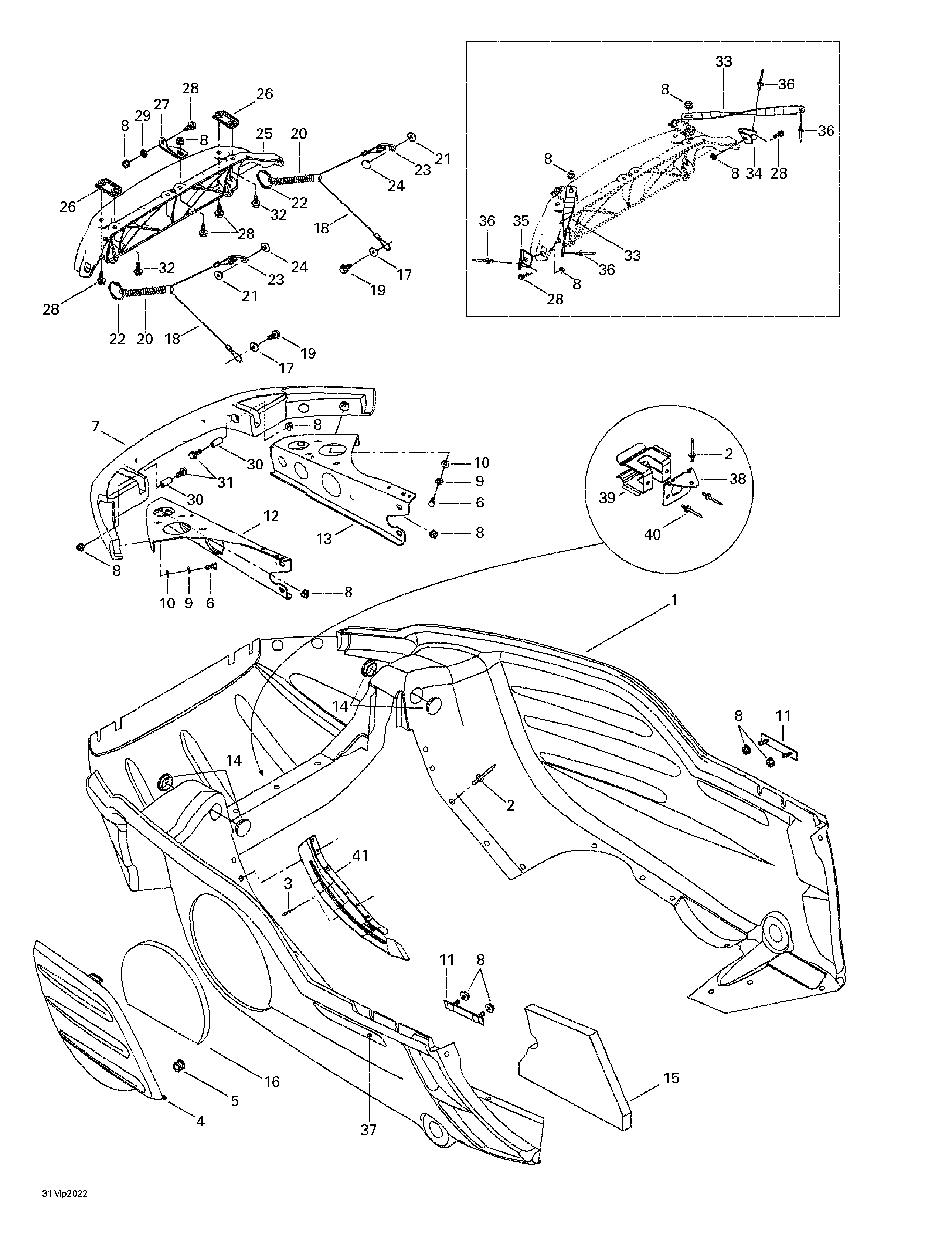

09- Bottom Pan для BRP Ski-Doo MX Z 800 - 2000
-
№АртикулНазвание
-
1502006588 Bottom Pan (Yellow)Bottom Pan (Yellow)
-
2390910200 Rivet (Yellow)Rivet (Yellow)
-
3390402200 Pop Rivet 3/16Pop Rivet 3/16
-
4502006511 Bottom Pan Door (Yellow) B-190Bottom Pan Door (Yellow) B-190
-
5414036300 GrommetGrommet
-
6207161444 Hex. Screw M6 x 14Hex. Screw M6 x 14
-
7502006535 Bumper (Yellow)Bumper (Yellow)
-
8233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
9234161471 Lock Washer 6 mmLock Washer 6 mm
-
10224061121 Flat WasherFlat Washer
-
11502006500 BracketBracket
-
12502006597 L.H. SupportL.H. Support
-
13502006596 R.H. SupportR.H. Support
-
14414916600 Nylon CapNylon Cap
-
15502006558 Bottom FoamBottom Foam
-
16502006559 Bottom Pan Door FoamBottom Pan Door Foam
-
17391301600 Flat WasherFlat Washer
-
18415093900 Cable RetainerCable Retainer
-
20415043300 SpringSpring
-
21517124300 WasherWasher
-
22415058300 RingRing
-
23517262800 BracketBracket
-
24390409600 RivetRivet
-
25517302004 HingeHinge
-
26517302176 Hinge Side PlateHinge Side Plate
-
27517302045 Hinge Center PlateHinge Center Plate
-
28207661684 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
29250200000 Lock WasherLock Washer
-
30517302179 BushingBushing
-
31207663544 Hex. Flanged Screw M6 x 35Hex. Flanged Screw M6 x 35
-
32207662544 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
33517302256 Hood ClampHood Clamp
-
34517302254 R.H. Corner SupportR.H. Corner Support
-
35517302255 L.H. Corner SupportL.H. Corner Support
-
36390406500 RivetRivet
-
37415064400 R.H. ReflectorR.H. Reflector
-
415064401 L.H. ReflectorL.H. Reflector
-
38502006599 Belt SupportBelt Support
-
39517281905 BracketBracket
-
40390402400 Pop Rivet 3/16Pop Rivet 3/16
-
41502006593 Bottom Pan ProtectorBottom Pan Protector
