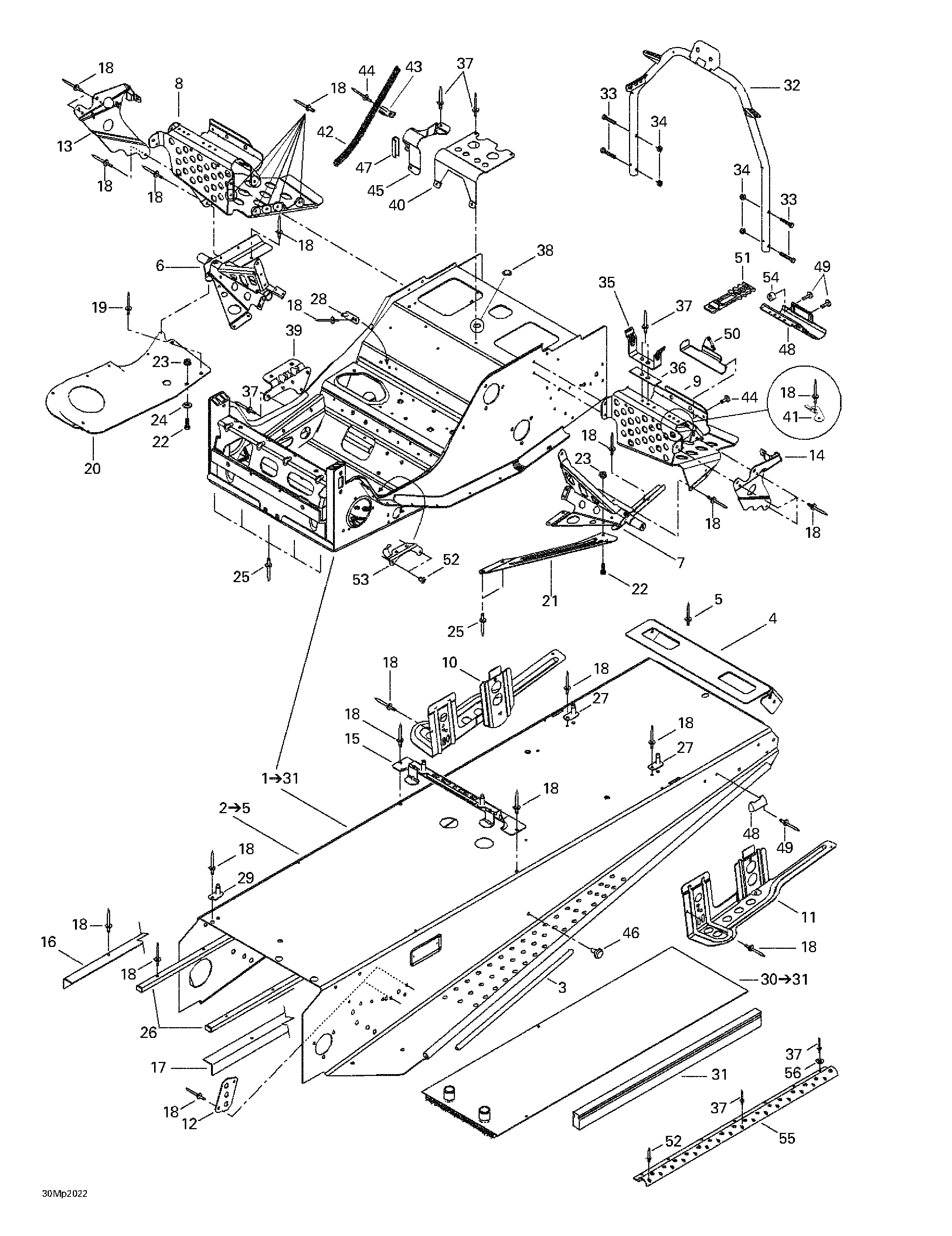

09- Frame And Accessories для BRP Ski-Doo MX Z 800 - 2000
-
№АртикулНазвание
-
1518322091 Frame. Includes 1 - 11.Frame. Includes 1 - 11.
-
2518322115 Forming FrameForming Frame
-
3518304746 Footrest ReinforcementFootrest Reinforcement
-
4518321303 Rear CapRear Cap
-
5390402200 Pop Rivet 3/16Pop Rivet 3/16
-
6518320506 R.H. Footrest SupportR.H. Footrest Support
-
7518320507 L.H. Footrest SupportL.H. Footrest Support
-
8518319722 R.H. FootrestR.H. Footrest
-
9518319723 L.H. FootrestL.H. Footrest
-
10518319742 R.H. Slide BracketR.H. Slide Bracket
-
11518319743 L.H. Slide BracketL.H. Slide Bracket
-
12518201321 Reinforcement PlateReinforcement Plate
-
13518321305 R.H. Footrest ReinforcementR.H. Footrest Reinforcement
-
14518321307 L.H. Footrest ReinforcementL.H. Footrest Reinforcement
-
15518321510 Fuel Tank BracketFuel Tank Bracket
-
16518321561 R.H. Frame ReinforcementR.H. Frame Reinforcement
-
17518321562 L.H. Frame ReinforcementL.H. Frame Reinforcement
-
18390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
19390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
20518319760 R.H. Bottom Pan PlateR.H. Bottom Pan Plate
-
21518322119 L.H. Reinforcement PlateL.H. Reinforcement Plate
-
22207152044 Hex. Screw M5 x 20Hex. Screw M5 x 20
-
23233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
24391301700 Flat WasherFlat Washer
-
25390910300 Rivet HenrobRivet Henrob
-
26518321543 Frame ProtectorFrame Protector
-
27518319730 Seat BracketSeat Bracket
-
28518319728 Double BracketDouble Bracket
-
29518321604 GuideGuide
-
30517296300 Rear Radiator. Includes 30 - 31.Rear Radiator. Includes 30 - 31.
-
31518321655 Radiator ProtectorRadiator Protector
-
32518321957 Handle SupportHandle Support
-
33207663544 Hex. Flanged Screw M6 x 35Hex. Flanged Screw M6 x 35
-
34233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
35518202100 Pulley Guard BracketPulley Guard Bracket
-
36518207500 ReinforcementReinforcement
-
37390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
38414859400 CapCap
-
39518206300 Muffler SupportMuffler Support
-
40518310400 Air Intake SupportAir Intake Support
-
41518322031 Tool Kit BracketTool Kit Bracket
-
42518321569 Rope GuideRope Guide
-
43518321570 ClipClip
-
44390406500 Pop RivetPop Rivet
-
45518319762 Hose SupportHose Support
-
46518321954 Fastener PanelFastener Panel
-
47271000110 Protection TrimProtection Trim
-
49207661644 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
50518321999 Tool Kit SupportTool Kit Support
-
51570069700 LatchLatch
-
52390402300 RivetRivet
-
53515175254 Cable SupportCable Support
-
54415107300 InsertInsert
-
55518321714 Non Skid StripNon Skid Strip
-
56517225900 Flat WasherFlat Washer
