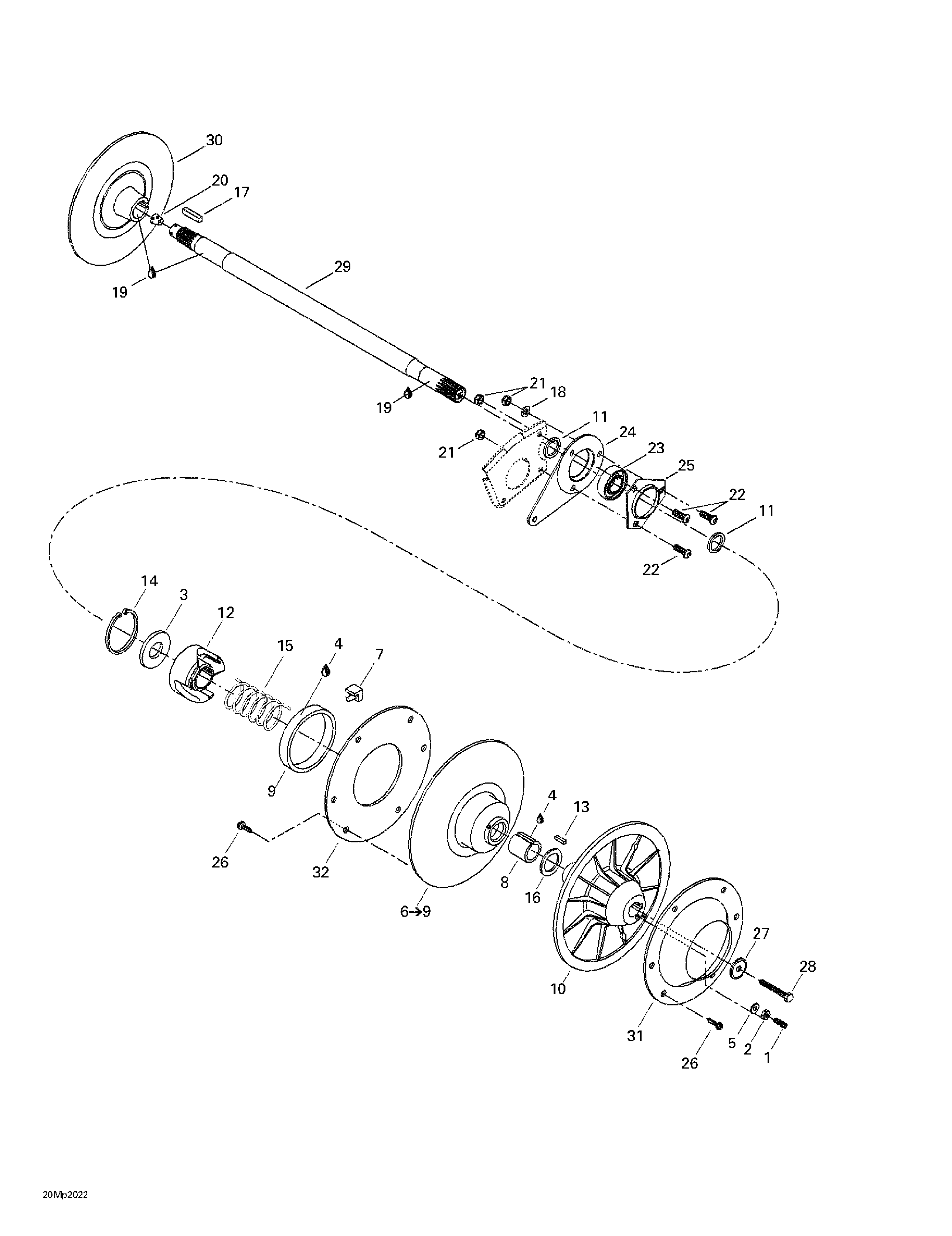

05- Driven Pulley для BRP Ski-Doo MX Z 800 - 2000
-
№АртикулНазвание
-
1206263044 Socket Set Screw M6 x 30Socket Set Screw M6 x 30
-
2232061414 Nut M6Nut M6
-
3504141800 WasherWasher
-
4413703100 Loctite 609, 10 c.cLoctite 609, 10 c.c
-
5420245370 WasherWasher
-
6504143400 Sliding Flange Ass'ySliding Flange Ass'y
-
7414918000 Cam Slider ShoeCam Slider Shoe
-
8415011200 BushingBushing
-
9414876600 Bushing GarlockBushing Garlock
-
10417010200 Fixed FlangeFixed Flange
-
11504149100 SpacerSpacer
-
12417126380 CamCam
-
13414820800 KeyKey
-
14371903100 CirclipCirclip
-
15414558900 Release Spring (Beige)Release Spring (Beige)
-
16504141900 Thrust WasherThrust Washer
-
17507021300 KeyKey
-
18234081410 Washer 8 mmWasher 8 mm
-
19293800023 Loctite 767, Antiseize Lube, 454 grLoctite 767, Antiseize Lube, 454 gr
-
20414784800 CorkCork
-
21232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
22205482546 Socket Head Screw M8 x 25Socket Head Screw M8 x 25
-
23405408200 Ball BearingBall Bearing
-
24080044200 Casting SpacerCasting Spacer
-
25501025000 FlangeFlange
-
26210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
27517302322 Strenght WasherStrenght Washer
-
28207087544 Hex. Screw M8 x 75Hex. Screw M8 x 75
-
29501026300 CountershaftCountershaft
-
30507031300 Brake DiskBrake Disk
-
31504142000 CupCup
-
32504142100 RingRing
