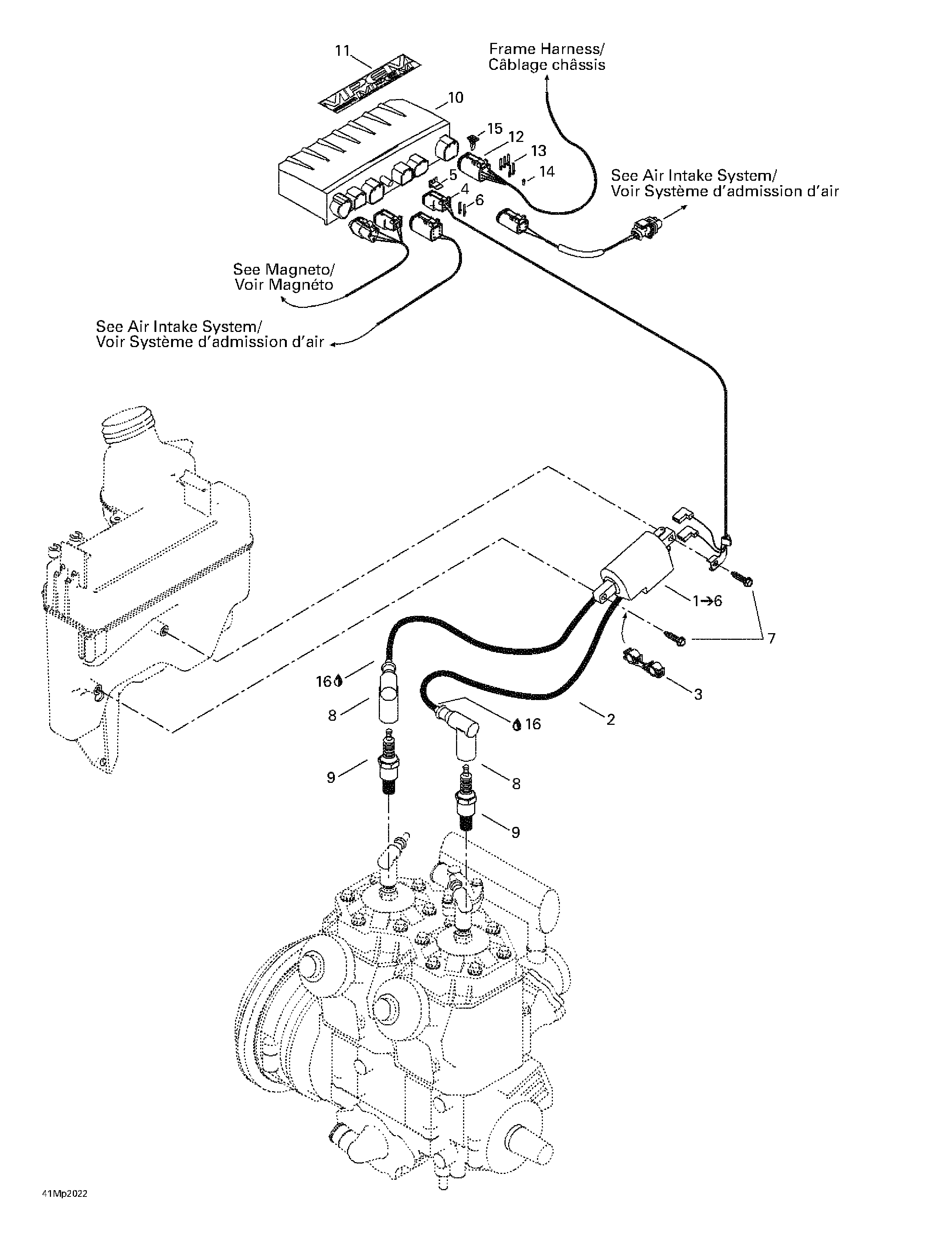

03- Ignition для BRP Ski-Doo MX Z 800 - 2000
-
№АртикулНазвание
-
1512059039 IgnitionCoilIgnitionCoil
-
2278001268 Spark Plug WireSpark Plug Wire
-
3410914600 Plastic ClipPlastic Clip
-
4409207300 Female Terminal Housing (2 circuits)Female Terminal Housing (2 circuits)
-
5409207100 Female Lock (2 circuits)Female Lock (2 circuits)
-
6278000632 Female TerminalFemale Terminal
-
7250000005 Hex. Tapping ScrewHex. Tapping Screw
-
8278000237 Spark Plug ProtectorSpark Plug Protector
-
9414961100 Spark Plug (NGK BR9ES)Spark Plug (NGK BR9ES)
-
10515175375 Calibration ModuleCalibration Module
-
11516000245 Electrical Box DecalElectrical Box Decal
-
12278000736 Female Terminal Housing (6 circuits)Female Terminal Housing (6 circuits)
-
13278000632 Female TerminalFemale Terminal
-
14293000052 PlugPlug
-
15278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
16293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
