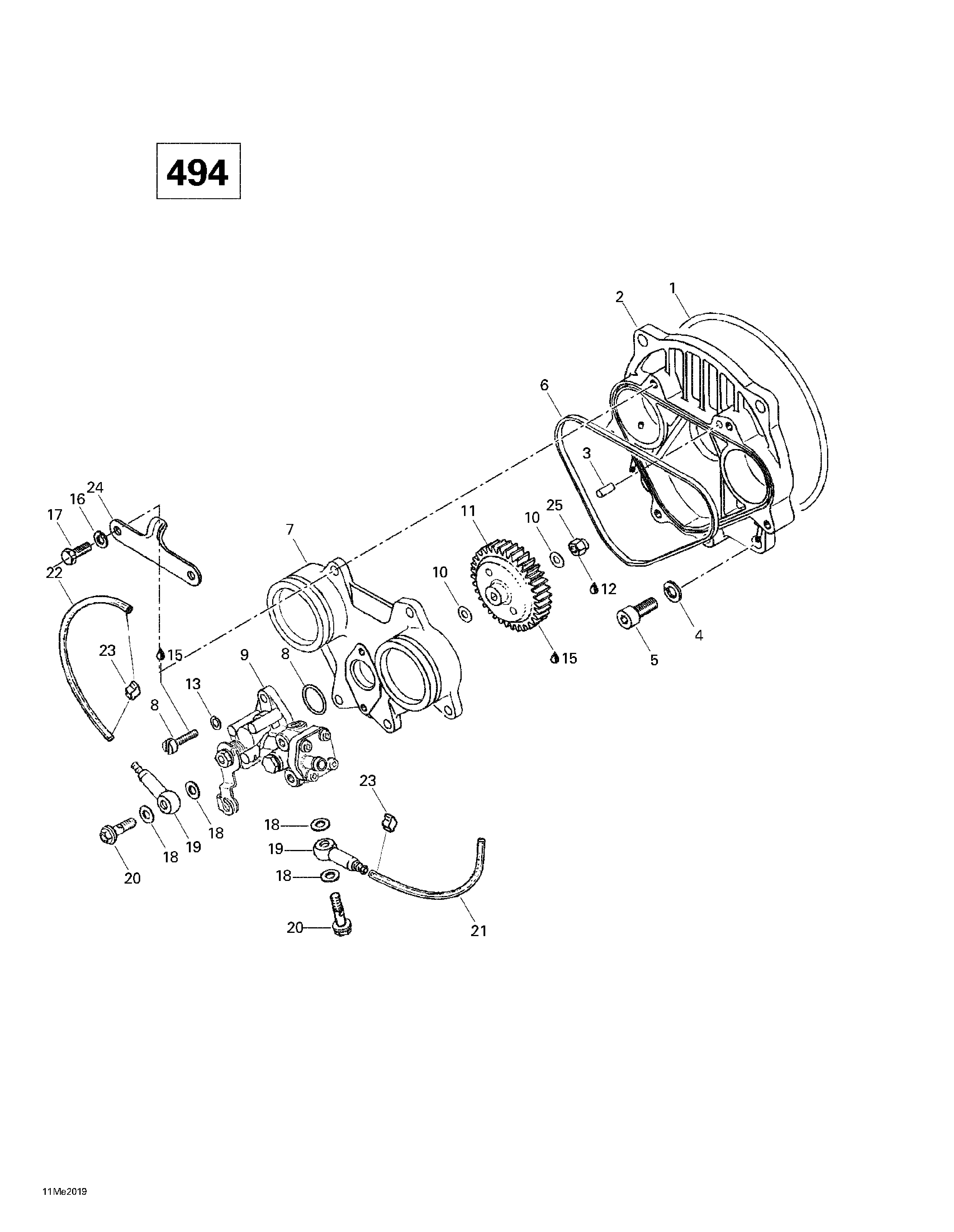

02- Oil Injection System (494) для BRP Ski-Doo Skandic Wide Track LC - 2000
-
№АртикулНазвание
-
1420831360 O-Ring. Skandic WT LC.O-Ring. Skandic WT LC.
-
2420810486 Rotary Valve Cover Ass'y. Includes 2 - 3. Skandic WT LC.Rotary Valve Cover Ass'y. Includes 2 - 3. Skandic WT LC.
-
3420929650 Dowel Pin. Skandic WT LC.Dowel Pin. Skandic WT LC.
-
4420945752 Lock Washer 8 mm. Skandic WT LC.Lock Washer 8 mm. Skandic WT LC.
-
5205082044 Socket Head Screw M8 x 20. Skandic WT LC.Socket Head Screw M8 x 20. Skandic WT LC.
-
6420831707 Rubber Ring. Skandic WT LC.Rubber Ring. Skandic WT LC.
-
7420810490 Oil Pump Mounting Flanged. Skandic WT LC.Oil Pump Mounting Flanged. Skandic WT LC.
-
8420230370 O-Ring. Skandic WT LC.O-Ring. Skandic WT LC.
-
9420887931 Oil Pump Ass'y. Skandic WT LC.Oil Pump Ass'y. Skandic WT LC.
-
10420927945 Washer 6.2 mm. Skandic WT LC.Washer 6.2 mm. Skandic WT LC.
-
11420935945 Oil Pump Gear 41 Teeth. Skandic WT LC.Oil Pump Gear 41 Teeth. Skandic WT LC.
-
12232561414 Elastic Stop Nut M6. Skandic WT LC.Elastic Stop Nut M6. Skandic WT LC.
-
13420945750 Lock Washer 5 mm. Skandic WT LC.Lock Washer 5 mm. Skandic WT LC.
-
14420240761 Cylindrical Slotted Screw M5 x 16. Skandic WT LC.Cylindrical Slotted Screw M5 x 16. Skandic WT LC.
-
15413707000 Molykote 111. Skandic WT LC.Molykote 111. Skandic WT LC.
-
16420945751 Lock Washer 6 mm. Skandic WT LC.Lock Washer 6 mm. Skandic WT LC.
-
17207162044 Hex. Screw M6 x 20. Skandic WT LC.Hex. Screw M6 x 20. Skandic WT LC.
-
18404146600 Oil Banjo Gasket. Skandic WT LC.Oil Banjo Gasket. Skandic WT LC.
-
19420956010 Valve Ass'y. Skandic WT LC.Valve Ass'y. Skandic WT LC.
-
20404146800 Banjo Bolt M6 x 16. Skandic WT LC.Banjo Bolt M6 x 16. Skandic WT LC.
-
21414413800 Oil Line (MAG Side). Skandic WT LC.Oil Line (MAG Side). Skandic WT LC.
-
22414413800 Oil Line (PTO Side). Skandic WT LC.Oil Line (PTO Side). Skandic WT LC.
-
23420853840 Clamp. Skandic WT LC.Clamp. Skandic WT LC.
-
24420851340 Plate (Intake Silencer). Skandic WT LC.Plate (Intake Silencer). Skandic WT LC.
-
25293800060 Loctite 243, 10 ml. Skandic WT LC.Loctite 243, 10 ml. Skandic WT LC.
