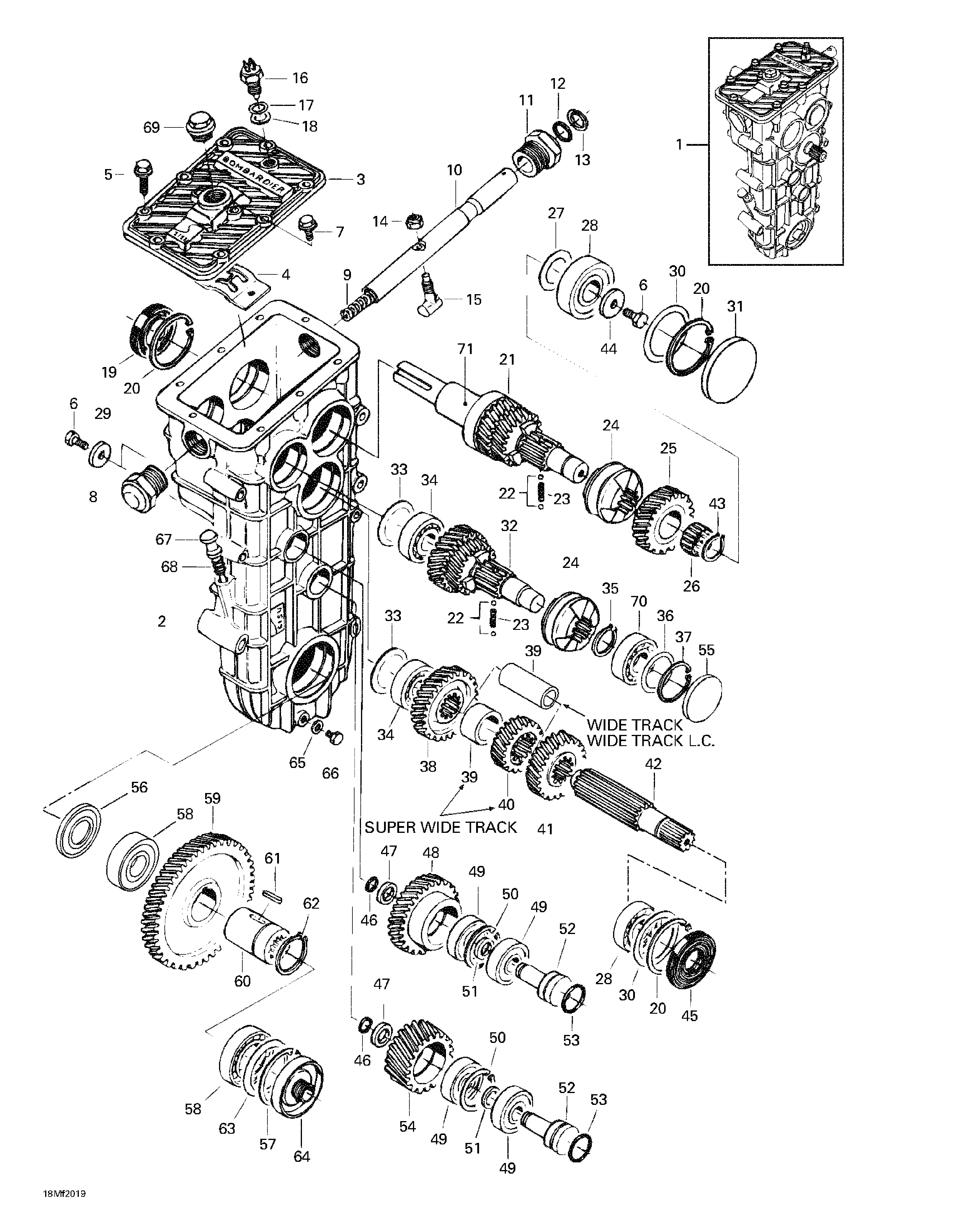

05- Transmission для BRP Ski-Doo Skandic Wide Track LC - 2000
-
№АртикулНазвание
-
1M870156074 Transmission Ass'y. Includes 1 - 70. Skandic WT.Transmission Ass'y. Includes 1 - 70. Skandic WT.
-
1M870156145 Transmission Ass'y. Includes 1 - 71. Skandic SWT.Transmission Ass'y. Includes 1 - 71. Skandic SWT.
-
1M870156100 Transmission Ass'y. Includes 1 - 70. Skandic WT LC.Transmission Ass'y. Includes 1 - 70. Skandic WT LC.
-
2M875156138 ChaincaseChaincase
-
3M875156043 CoverCover
-
4M875156075 H-SchemeH-Scheme
-
5M537001402 ScrewScrew
-
6207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
7M534801362 ScrewScrew
-
8M875156076 Sleeve NutSleeve Nut
-
9M875156078 SpringSpring
-
10M875156072 ShaftShaft
-
11M875156077 Sleeve NutSleeve Nut
-
12M614601523 O-RingO-Ring
-
13M614102031 Ring LockRing Lock
-
14M510611002 NutNut
-
15M875156073 PinPin
-
16M654100224 SenderSender
-
17M617391218 ShimShim
-
18M615581216 Sealing RingSealing Ring
-
19M614103562 Oil SealOil Seal
-
20M617330062 Ring LockRing Lock
-
21M875156063 Shaft. Skandic WT. Skandic WT LC.Shaft. Skandic WT. Skandic WT LC.
-
M875156155 Shaft. Skandic SWT.Shaft. Skandic SWT.
-
22M616810064 BallBall
-
23M875156105 SpringSpring
-
24M875156005 Wheel ClutchWheel Clutch
-
25M875156052 Sprocket (27 Tooth). Skandic WT.Sprocket (27 Tooth). Skandic WT.
-
M875156135 Sprocket (29 Tooth). Skandic SWT.Sprocket (29 Tooth). Skandic SWT.
-
M875156115 Sprocket (28 Tooth). Skandic WT LC.Sprocket (28 Tooth). Skandic WT LC.
-
26M611002529 Needle BearingNeedle Bearing
-
27M616092542 WasherWasher
-
28M610063050 Ball BearingBall Bearing
-
29M875156099 WasherWasher
-
30M617395065 ShimShim
-
31M614100062 PlugPlug
-
32M875156068 Reverse ShaftReverse Shaft
-
33M875152953 PlugPlug
-
34M610063044 Ball BearingBall Bearing
-
35M617450028 CirclipCirclip
-
36M617394252 ShimShim
-
37M31002 CirclipCirclip
-
38M875156054 Sprocket (34 Tooth)Sprocket (34 Tooth)
-
39M875156087 Sleeve. Skandic WT. Skandic WT LC.Sleeve. Skandic WT. Skandic WT LC.
-
M875156088 Sleeve. Skandic SWT.Sleeve. Skandic SWT.
-
40M875156060 Sprocket (24 Tooth). Skandic SWT.Sprocket (24 Tooth). Skandic SWT.
-
41M875156051 Sprocket (29 Tooth). Skandic WT. Skandic WT LC.Sprocket (29 Tooth). Skandic WT. Skandic WT LC.
-
M875156136 Sprocket (27 Tooth). Skandic SWT.Sprocket (27 Tooth). Skandic SWT.
-
42M875156069 ShaftShaft
-
43M617450025 CirclipCirclip
-
44M875156112 WasherWasher
-
45M614102562 Oil SealOil Seal
-
46M614601224 O-RingO-Ring
-
47M875156094 RingRing
-
48M875156050 Sprocket (28 Tooth). Skandic WT. Skandic WT LC.Sprocket (28 Tooth). Skandic WT. Skandic WT LC.
-
M875156059 Sprocket (33 Tooth). Skandic SWT.Sprocket (33 Tooth). Skandic SWT.
-
49M610063035 Ball BearingBall Bearing
-
50M617330047 CirclipCirclip
-
51M875147205 WasherWasher
-
52M875147204 ShaftShaft
-
53M614602431 O-RingO-Ring
-
54M875156049 Sprocket (31 Tooth). Skandic WT. Skandic WT LC.Sprocket (31 Tooth). Skandic WT. Skandic WT LC.
-
M875156058 Sprocket (26 Tooth). Skandic SWT.Sprocket (26 Tooth). Skandic SWT.
-
55M614100052 PlugPlug
-
56M2652101 Oil SealOil Seal
-
57M617330068 CirclipCirclip
-
58M610060080 Ball BearingBall Bearing
-
59M875156048 Sprocket (55 Tooth). Skandic WT.Sprocket (55 Tooth). Skandic WT.
-
M875156057 Sprocket (59 Tooth). Skandic SWT.Sprocket (59 Tooth). Skandic SWT.
-
M875156114 Sprocket (53 Tooth). Skandic WT LC.Sprocket (53 Tooth). Skandic WT LC.
-
60M875136962 Lower ShaftLower Shaft
-
61M603345070 KeyKey
-
62M617300040 CirclipCirclip
-
63M617395568 ShimShim
-
64M875156104 PlugPlug
-
65M615580812 Ring GasketRing Gasket
-
66M528801342 PlugPlug
-
67M875156097 Filler CapFiller Cap
-
68M614600725 O-RingO-Ring
-
69M875156098 PlugPlug
-
70M610063040 Ball BearingBall Bearing
-
71M875156153 Sleeve. Skandic SWT.Sleeve. Skandic SWT.
