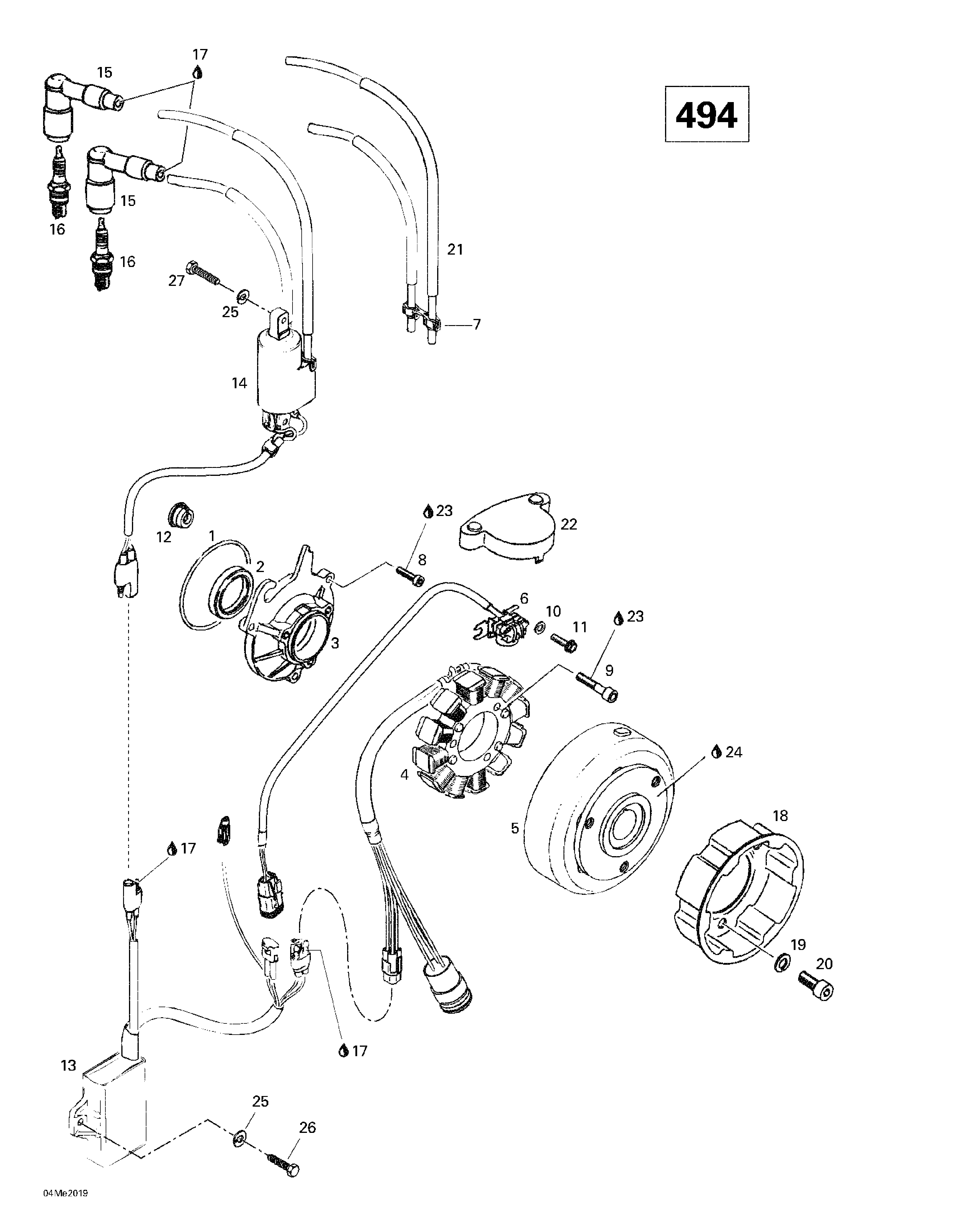

03- Magneto 12V 220W (494) для BRP Ski-Doo Skandic Wide Track LC - 2000
-
№АртикулНазвание
-
1420850430 O-Ring. Skandic WT LC.O-Ring. Skandic WT LC.
-
2420930695 Seal-Oil. Skandic WT LC.Seal-Oil. Skandic WT LC.
-
3420810265 Armature Plate. Skandic WT LC.Armature Plate. Skandic WT LC.
-
4410922905 Stator Plate. Skandic WT LC.Stator Plate. Skandic WT LC.
-
5410922906 Magneto Flywheel. Skandic WT LC.Magneto Flywheel. Skandic WT LC.
-
6420965642 Pick Up Ass'y. Skandic WT LC.Pick Up Ass'y. Skandic WT LC.
-
7410914600 Clip (PQG. 5). Skandic WT LC.Clip (PQG. 5). Skandic WT LC.
-
8420941540 Socket Head Screw M5 x 20. Skandic WT LC.Socket Head Screw M5 x 20. Skandic WT LC.
-
9420840886 Socket Head Screw M6 x 30. Skandic WT LC.Socket Head Screw M6 x 30. Skandic WT LC.
-
10420827800 Washer 5.5 mm. Skandic WT LC.Washer 5.5 mm. Skandic WT LC.
-
11420840511 Socket Head Screw M5 x 16. Skandic WT LC.Socket Head Screw M5 x 16. Skandic WT LC.
-
12420860965 Cable Grommet. Skandic WT LC.Cable Grommet. Skandic WT LC.
-
13415085300 Amplifier-Box. Skandic WT LC.Amplifier-Box. Skandic WT LC.
-
14415085400 Ignition Coil. Skandic WT LC.Ignition Coil. Skandic WT LC.
-
15278000237 Spark Plug Protector. Skandic WT LC.Spark Plug Protector. Skandic WT LC.
-
16414961100 Spark Plug (NGK BR9ES). Skandic WT LC.Spark Plug (NGK BR9ES). Skandic WT LC.
-
17413706100 Lithium Grease, 400gr. Skandic WT LC.Lithium Grease, 400gr. Skandic WT LC.
-
18420852416 Starting Pulley. Skandic WT LC.Starting Pulley. Skandic WT LC.
-
19420945752 Lock Washer 8 mm. Skandic WT LC.Lock Washer 8 mm. Skandic WT LC.
-
20420841520 Socket Head Screw M8 x 12. Skandic WT LC.Socket Head Screw M8 x 12. Skandic WT LC.
-
21278001268 Spark Plug Cable. Skandic WT LC.Spark Plug Cable. Skandic WT LC.
-
22420810700 Pick-Up Cover. Skandic WT LC.Pick-Up Cover. Skandic WT LC.
-
23293800060 Loctite 243, 10 ml. Skandic WT LC.Loctite 243, 10 ml. Skandic WT LC.
-
24413711400 Loctite 648, 10 ml. Skandic WT LC.Loctite 648, 10 ml. Skandic WT LC.
-
25234161471 Lock Washer 6 mm. Skandic WT LC.Lock Washer 6 mm. Skandic WT LC.
-
26207161244 Hex. Screw M6 x 12. Skandic WT LC.Hex. Screw M6 x 12. Skandic WT LC.
-
27207162044 Hex. Screw M6 x 20. Skandic WT LC.Hex. Screw M6 x 20. Skandic WT LC.
