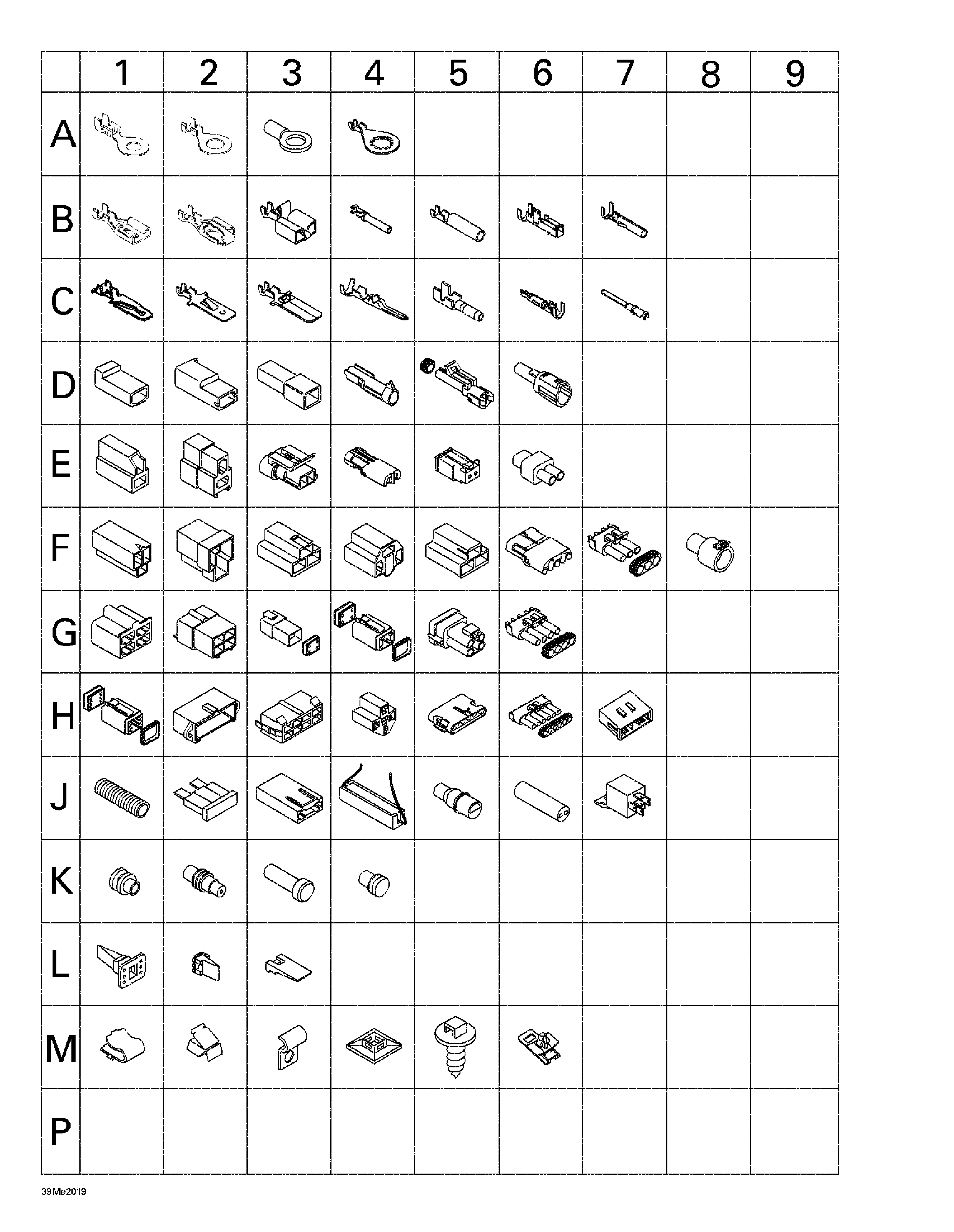

10- Electrical Accessories для BRP Ski-Doo Skandic Wide Track LC - 2000
-
№АртикулНазвание
-
A1409012500 Open Barrel. (12/10 gauge-10 mm stud)Open Barrel. (12/10 gauge-10 mm stud)
-
A1409012600 Open Barrel. (12/10 gauge-.257'' stud)Open Barrel. (12/10 gauge-.257'' stud)
-
A2561502700 Open Barrel. (16/14 gauge-5/16'' stud)Open Barrel. (16/14 gauge-5/16'' stud)
-
A2409003200 Open Barrel. (16/14 gauge-1/4'' stud)Open Barrel. (16/14 gauge-1/4'' stud)
-
A3278000992 Open Barrel 1/4'' (14-18 Gauge)Open Barrel 1/4'' (14-18 Gauge)
-
A4561502800 Open Barrel. (16/14 gauge-10 mm stud)Open Barrel. (16/14 gauge-10 mm stud)
-
B1561503100 Female Terminal. (Single 14 / Double 18/18 gauge)Female Terminal. (Single 14 / Double 18/18 gauge)
-
B1515175252 Female TerminalFemale Terminal
-
B1515175253 Female TerminalFemale Terminal
-
B2515175313 Female TerminalFemale Terminal
-
B2515175320 Female TerminalFemale Terminal
-
B2409011400 Female Terminal (3,13/2,03 mm)Female Terminal (3,13/2,03 mm)
-
B2409011500 Female Terminal (2,40/2,03 mm)Female Terminal (2,40/2,03 mm)
-
B2561503200 Female Terminal. (Single 14 / Double 18/18 gauge)Female Terminal. (Single 14 / Double 18/18 gauge)
-
B2561503800 Female Terminal (16/14 gauge)Female Terminal (16/14 gauge)
-
B3409010100 Female Terminal (18 Gauge)Female Terminal (18 Gauge)
-
B3409010600 Female TerminalFemale Terminal
-
B4278000632 Female Terminal (16/18 Gauge)Female Terminal (16/18 Gauge)
-
B5278001009 Female Terminal (14-18 Gauge)Female Terminal (14-18 Gauge)
-
B6278001114 Female Terminal (18 Gauge)Female Terminal (18 Gauge)
-
B6278001014 Female TerminalFemale Terminal
-
B7278000223 Female Terminal (18 Gauge)Female Terminal (18 Gauge)
-
C1409206100 Male Terminal (20/18 gauge)Male Terminal (20/18 gauge)
-
C1561503400 Male Terminal (18/16 gauge)Male Terminal (18/16 gauge)
-
C1409210000 Male Terminal (14/18 gauge)Male Terminal (14/18 gauge)
-
C1515175273 Male TerminalMale Terminal
-
C2409201000 Male TerminalMale Terminal
-
C3409011100 Male Terminal (14/12 Gauge)Male Terminal (14/12 Gauge)
-
C3409010900 Male Terminal (14/12 Gauge)Male Terminal (14/12 Gauge)
-
C4409011300 Male TerminalMale Terminal
-
C4515175232 Male Terminal (16/20 Gauge)Male Terminal (16/20 Gauge)
-
C4515175234 Male Terminal (14 Gauge)Male Terminal (14 Gauge)
-
C5278000230 Male Terminal (20 Gauge)Male Terminal (20 Gauge)
-
C6278000222 Male Terminal (18 Gauge)Male Terminal (18 Gauge)
-
C7278000631 Male Terminal (16/18 Gauge)Male Terminal (16/18 Gauge)
-
D1409204800 Female Connector Housing (Single)Female Connector Housing (Single)
-
D2409010400 Female Connector Housing (Single)Female Connector Housing (Single)
-
D3409204700 Male Connector Housing (Single)Male Connector Housing (Single)
-
D4278000161 Female Connector Housing (Single)Female Connector Housing (Single)
-
D5278000219 Male Connector Housing (Single)Male Connector Housing (Single)
-
D6409208800 Male Connector Housing (Single)Male Connector Housing (Single)
-
E1409204600 Female Connector Housing (Double)Female Connector Housing (Double)
-
E2409204500 Male Connector Housing (Double)Male Connector Housing (Double)
-
E3278001113 Male Connector Housing (Double)Male Connector Housing (Double)
-
E3278000220 Male Connector Housing (Double)Male Connector Housing (Double)
-
E4278000217 Female Connector Housing (Double)Female Connector Housing (Double)
-
E5409207300 Female Connector Housing (Double)Female Connector Housing (Double)
-
E6409206500 Female Connector Housing (Double)Female Connector Housing (Double)
-
F1409204300 Female Connector Housing (Triple)Female Connector Housing (Triple)
-
F2409204200 Male Connector Housing (Triple)Male Connector Housing (Triple)
-
F3409008500 Female Connector Housing (Triple)Female Connector Housing (Triple)
-
F4409202700 Female Connector Housing (Triple)Female Connector Housing (Triple)
-
F5409008600 Male Connector Housing (Triple)Male Connector Housing (Triple)
-
F6278000281 Female Connector Housing (Triple)Female Connector Housing (Triple)
-
F6278000394 Female Connector Housing (Triple)Female Connector Housing (Triple)
-
F7278000273 Male Connector Housing (Triple)Male Connector Housing (Triple)
-
F8409207900 Male Connector Housing (Triple)Male Connector Housing (Triple)
-
G1409204900 Female Connector Housing (4)Female Connector Housing (4)
-
G2409209300 Male Connector Housing (4)Male Connector Housing (4)
-
G3278000635 Female Connector Housing (4)Female Connector Housing (4)
-
G4278000739 Male Connector Housing (4)Male Connector Housing (4)
-
G5409207700 Male Connector Housing (4)Male Connector Housing (4)
-
G6278000395 Female Connector Housing (4)Female Connector Housing (4)
-
H1270000137 Male Connector Housing (6)Male Connector Housing (6)
-
H1278000736 Male Connector Housing (6) DeutschMale Connector Housing (6) Deutsch
-
H2572151500 Male Connector Housing (8)Male Connector Housing (8)
-
H3572151200 Female Connector Housing (8)Female Connector Housing (8)
-
H4409209900 Female Connector Housing (5)Female Connector Housing (5)
-
H5278000156 Female Connector Housing (6)Female Connector Housing (6)
-
H6278000221 Male Connector Housing (6)Male Connector Housing (6)
-
H7515175352 Male Connector Housing (13)Male Connector Housing (13)
-
J1409901600 Tubing (19 mm)Tubing (19 mm)
-
J1409901700 Tubing (10 mm)Tubing (10 mm)
-
J1409901800 Tubing (13 mm)Tubing (13 mm)
-
J1415079900 Tubing (10 mm)Tubing (10 mm)
-
J1410112800 Tubing (12 mm x 40 mm)Tubing (12 mm x 40 mm)
-
J1410112900 Tubing (Meter)Tubing (Meter)
-
J1415080000 Tubing (16 mm)Tubing (16 mm)
-
J1409902100 TubingTubing
-
J2410917200 Fuse 30 ampFuse 30 amp
-
J3409004000 Fuse HolderFuse Holder
-
J4410911000 Resistance 30 ohmsResistance 30 ohms
-
J4515175241 Resistance 50 ohmsResistance 50 ohms
-
J5278001008 Insulating Sheath (Male Terminal)Insulating Sheath (Male Terminal)
-
J6278001007 Insulating Sheath (Single)Insulating Sheath (Single)
-
J7410113200 Light RelayLight Relay
-
K1409208500 Seal WireSeal Wire
-
K1409012300 SealSeal
-
K1278000218 Seal WireSeal Wire
-
K1278000996 Seal WireSeal Wire
-
K1409208300 Seal WireSeal Wire
-
K1278001013 Seal WireSeal Wire
-
K2278000216 Wire Seal (Cap)Wire Seal (Cap)
-
K3293000052 Sealing Cap (Deutsch)Sealing Cap (Deutsch)
-
K4409013900 Plug (AMP)Plug (AMP)
-
L1278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
L1278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
L2278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
L2278000738 Secondary Lock (Male)Secondary Lock (Male)
-
L3409013100 Male Lock (4)Male Lock (4)
-
L3409207600 Male Lock (3)Male Lock (3)
-
M1409205600 ClipClip
-
M2414227300 ClipClip
-
M3415018200 ClipClip
-
M4293750015 Tie Rap MountTie Rap Mount
-
M5293730018 DartDart
-
M6515175283 Housing SupportHousing Support
