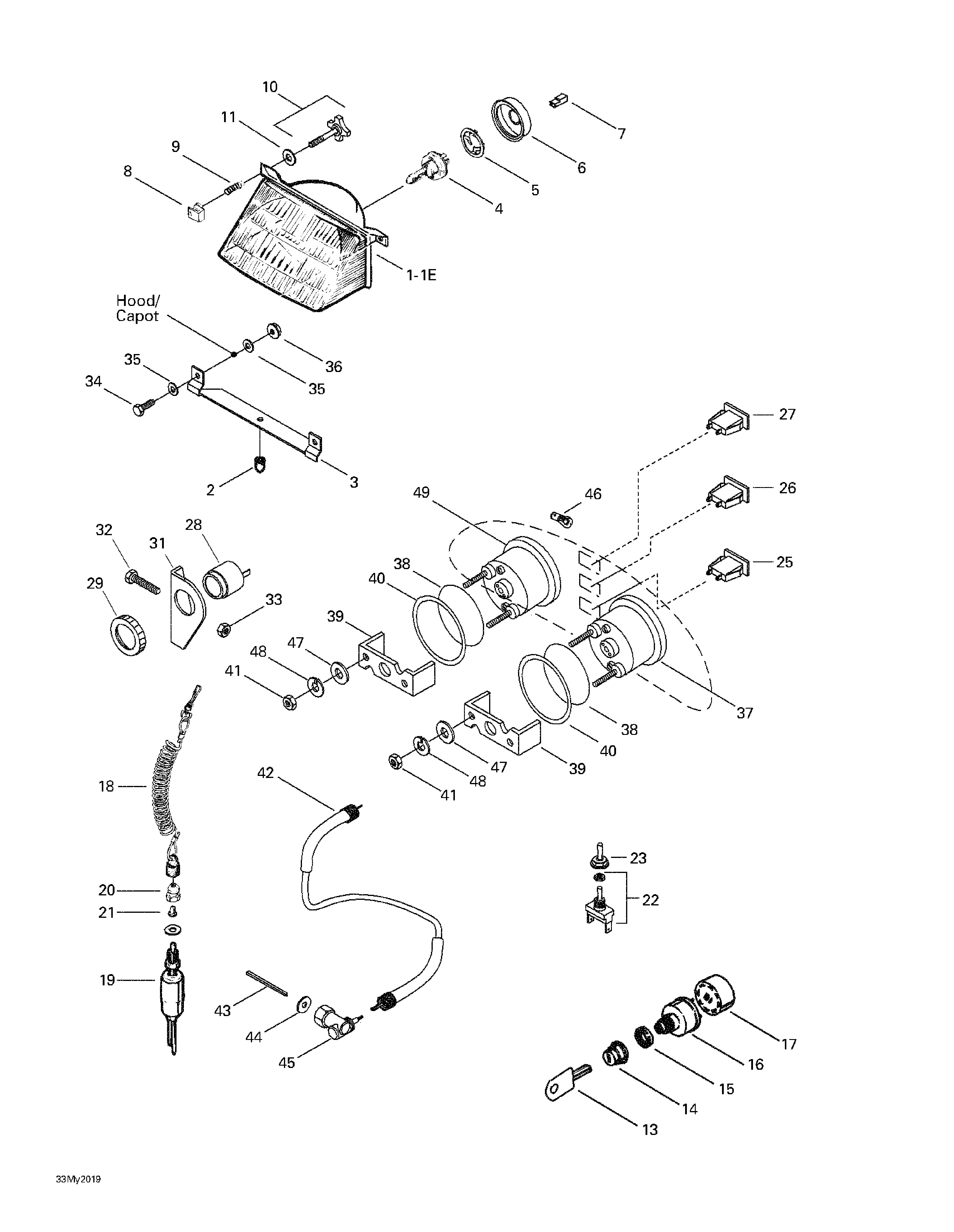

10- Electrical System для BRP Ski-Doo Skandic Wide Track LC - 2000
-
№АртикулНазвание
-
1410609100 Headlamp Ass'y. Includes 1 - 1E.Headlamp Ass'y. Includes 1 - 1E.
-
1b410503700 Halogen Bulb 60/55 WHalogen Bulb 60/55 W
-
1c410607100 Protector CapProtector Cap
-
1d410608300 Bulb HolderBulb Holder
-
1e410609300 HeadlampHeadlamp
-
2410608200 Rubber StopperRubber Stopper
-
3M539864 HolderHolder
-
4410503700 Halogen Bulb 60/55 WHalogen Bulb 60/55 W
-
5410608300 Bulb HolderBulb Holder
-
6410607100 Protector CapProtector Cap
-
7M1200909 Tab Connector HousingTab Connector Housing
-
8572078600 Projector NutProjector Nut
-
9517168600 SpringSpring
-
10243244040 Plastite Phillips Screw M4 x 40Plastite Phillips Screw M4 x 40
-
11M20001 WasherWasher
-
13414991700 Blank Key (Plastic, Pkg of 5)Blank Key (Plastic, Pkg of 5)
-
14570013700 BootBoot
-
15410112100 Face NutFace Nut
-
16410111300 Ignition SwitchIgnition Switch
-
17572150700 Ignition BlockIgnition Block
-
18515151500 Cap Ass'yCap Ass'y
-
19410106700 SwitchSwitch
-
20515145900 Switch NutSwitch Nut
-
21570151100 Plunger CapPlunger Cap
-
22410110700 Heat Grip SwitchHeat Grip Switch
-
23515175281 Switch CoverSwitch Cover
-
25410109600 Pilot Lamp (Headlamp)Pilot Lamp (Headlamp)
-
26410109500 Pilot Lamp (Oil Level)Pilot Lamp (Oil Level)
-
27410109700 Pilot Lamp (Engine Temperature). Skandic WT. Skandic WT LC.Pilot Lamp (Engine Temperature). Skandic WT. Skandic WT LC.
-
28414792102 Back-Up AlarmBack-Up Alarm
-
29414805101 Plastic NutPlastic Nut
-
32207161644 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
33M33200 NutNut
-
34M40247 Hex. Screw M5 x 16Hex. Screw M5 x 16
-
35M20008 WasherWasher
-
36232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
37515175338 Speedometer (MPH) (US). Includes 37 - 39.Speedometer (MPH) (US). Includes 37 - 39.
-
515175337 Speedometer (KM/H) (CDN)Speedometer (KM/H) (CDN)
-
38414807100 O-RingO-Ring
-
39414806500 Case HolderCase Holder
-
40517258500 WasherWasher
-
41232551414 Nut M5Nut M5
-
42M5344162 Speedometer CableSpeedometer Cable
-
43M45075 Square Pin-SpeedometerSquare Pin-Speedometer
-
44M5444186 WasherWasher
-
45M35021 Drive AngleDrive Angle
-
46410504200 Instrumentation BulbInstrumentation Bulb
-
47414806800 WasherWasher
-
48414806700 Lock WasherLock Washer
