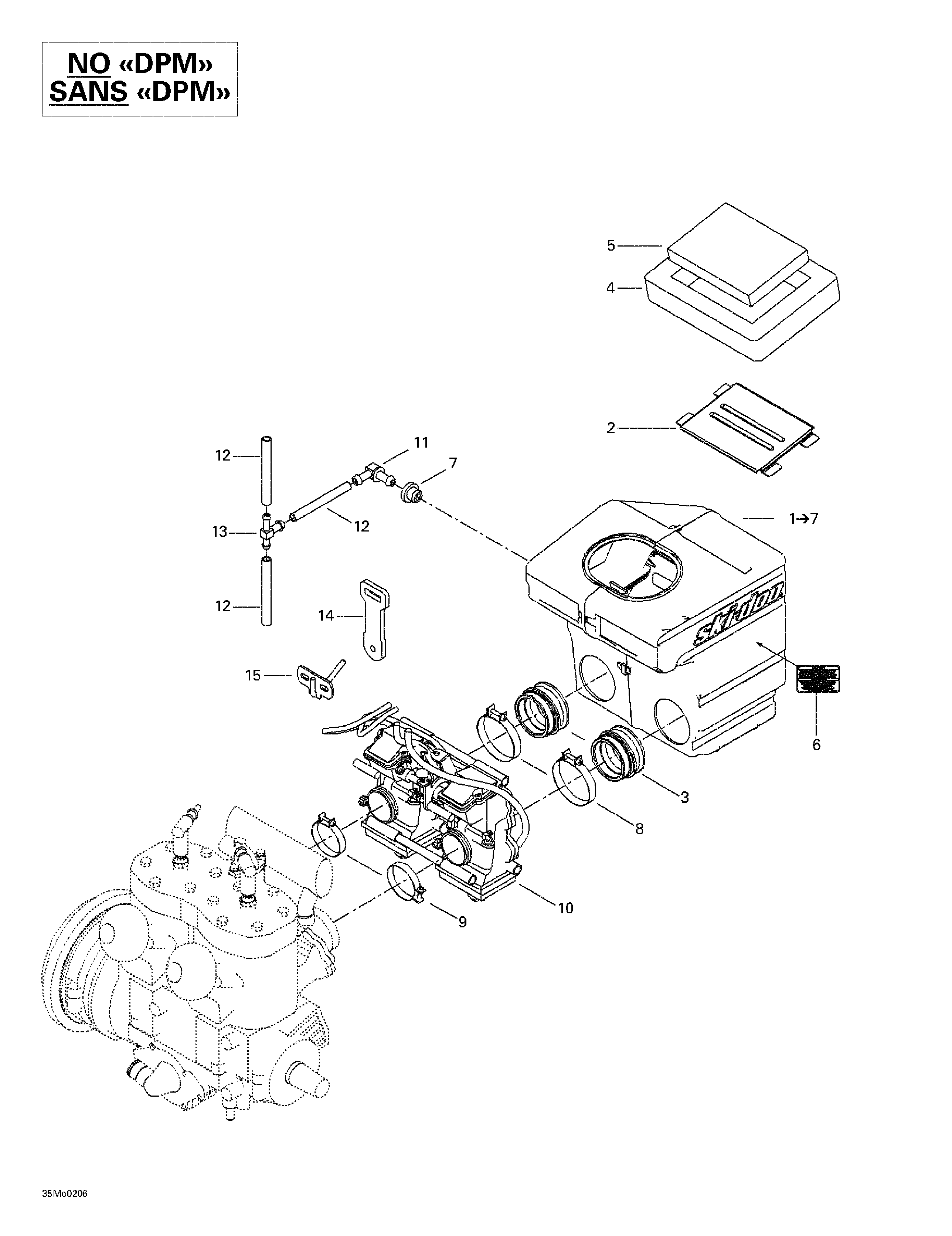

02- Air Intake System для BRP Ski-Doo Legend 500/600/700/800 - 2002
-
№АртикулНазвание
-
1508000222 Air Intake Ass'y. Includes 1 - 7. Legend 500. Legend 600.Air Intake Ass'y. Includes 1 - 7. Legend 500. Legend 600.
-
508000221 Air Intake Ass'y. Legend 700.Air Intake Ass'y. Legend 700.
-
2508000004 Intake Grill. Legend 500. Legend 600. Legend 700.Intake Grill. Legend 500. Legend 600. Legend 700.
-
3508000092 Air Intake Adaptor (40 mm). Legend 500. Legend 600. Legend 700.Air Intake Adaptor (40 mm). Legend 500. Legend 600. Legend 700.
-
4508000099 Lower Foam. Legend 500. Legend 600. Legend 700.Lower Foam. Legend 500. Legend 600. Legend 700.
-
5508000154 Air Filter. Legend 500. Legend 600. Legend 700.Air Filter. Legend 500. Legend 600. Legend 700.
-
6516001191 Instruction Label. Legend 500. Legend 600. Legend 700.Instruction Label. Legend 500. Legend 600. Legend 700.
-
7513032908 Grommet. Legend 500. Legend 600. Legend 700.Grommet. Legend 500. Legend 600. Legend 700.
-
8508000162 Clamp. Legend 500. Legend 600. Legend 700.Clamp. Legend 500. Legend 600. Legend 700.
-
9512059305 Clamp. Legend 500. Legend 600. Legend 700.Clamp. Legend 500. Legend 600. Legend 700.
-
10403138701 Carburetor Kit TM 40 B-151. Legend 500.Carburetor Kit TM 40 B-151. Legend 500.
-
403138700 Carburetor Kit TM 40 B-154. Legend 600.Carburetor Kit TM 40 B-154. Legend 600.
-
403138699 Carburetor Kit TM 40 B-160. Legend 700.Carburetor Kit TM 40 B-160. Legend 700.
-
11414580600 Elbow Male Connector. Legend 500. Legend 600. Legend 700.Elbow Male Connector. Legend 500. Legend 600. Legend 700.
-
12415080200 Line. Legend 500. Legend 600. Legend 700.Line. Legend 500. Legend 600. Legend 700.
-
13572045500 T'' Connector`Legend 500. Legend 600. Legend 700.``T'' Connector`Legend 500. Legend 600. Legend 700.``
-
14512059372 Carburetor Latch. Legend 500. Legend 600. Legend 700.Carburetor Latch. Legend 500. Legend 600. Legend 700.
-
15512059504 Carburetor Bracket. Legend 500. Legend 600. Legend 700.Carburetor Bracket. Legend 500. Legend 600. Legend 700.
