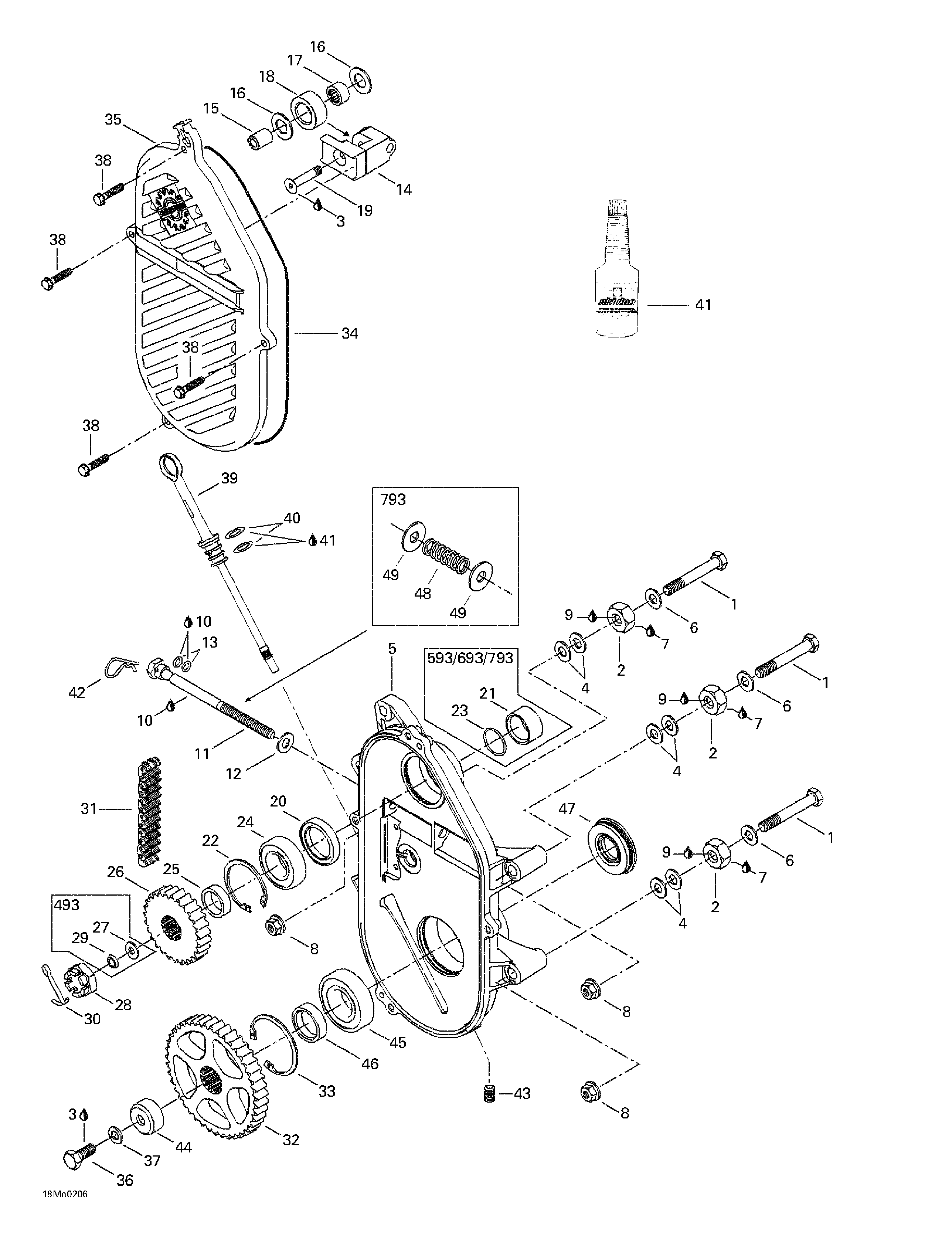

05- Transmission для BRP Ski-Doo Legend 500/600/700/800 - 2002
-
№АртикулНазвание
-
1207108044 Hex. Screw M10 x 80Hex. Screw M10 x 80
-
2504083800 SpacerSpacer
-
3293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
4504073700 WasherWasher
-
5504152062 Chaincase. Legend 800.Chaincase. Legend 800.
-
504152064 Chaincase. Legend 500. Legend 600. Legend 700.Chaincase. Legend 500. Legend 600. Legend 700.
-
6503183800 WasherWasher
-
7293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
8233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
9293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
10219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
11732601314 Tensioner Adjustment Screw. Legend 500. Legend 600. Legend 700.Tensioner Adjustment Screw. Legend 500. Legend 600. Legend 700.
-
504151946 Tensioner Adjustment Screw. Legend 800.Tensioner Adjustment Screw. Legend 800.
-
12234001410 Flat Washer 10 mm. Legend 500. Legend 600. Legend 700.Flat Washer 10 mm. Legend 500. Legend 600. Legend 700.
-
503189148 Flat Washer. Legend 800.Flat Washer. Legend 800.
-
13414484400 O-Ring. Legend 500. Legend 600. Legend 700.O-Ring. Legend 500. Legend 600. Legend 700.
-
504151954 O-Ring. Legend 800.O-Ring. Legend 800.
-
14504151951 Chain Tensioner. Legend 500. Legend 600. Legend 700.Chain Tensioner. Legend 500. Legend 600. Legend 700.
-
504151940 Chain Tensioner. Legend 800.Chain Tensioner. Legend 800.
-
15504080200 SpacerSpacer
-
16504080300 WasherWasher
-
17405403000 Needle BearingNeedle Bearing
-
18414531300 RollerRoller
-
19732601144 ScrewScrew
-
20504151927 Seal. Legend 500.Seal. Legend 500.
-
415049300 Seal. Legend 600. Legend 700. Legend 800.Seal. Legend 600. Legend 700. Legend 800.
-
21507031500 Spacer. Legend 600. Legend 700. Legend 800.Spacer. Legend 600. Legend 700. Legend 800.
-
22371901700 Circlip (Interior)Circlip (Interior)
-
23414876700 O-Ring. Legend 600. Legend 700. Legend 800.O-Ring. Legend 600. Legend 700. Legend 800.
-
24504152006 Ball BearingBall Bearing
-
25504147200 ShimShim
-
26504056000 22 Teeth Sprocket (Narrow). Legend 500.22 Teeth Sprocket (Narrow). Legend 500.
-
504139700 24 Teeth Sprocket (Large). Legend 600.24 Teeth Sprocket (Large). Legend 600.
-
504084300 25 Teeth Sprocket (Large). Legend 700.25 Teeth Sprocket (Large). Legend 700.
-
504085300 26 Teeth Sprocket (Narrow). Legend 800.26 Teeth Sprocket (Narrow). Legend 800.
-
27504152049 Washer. Legend 500.Washer. Legend 500.
-
28232210414 Hex. Castellated Nut M16. Legend 500.Hex. Castellated Nut M16. Legend 500.
-
250000012 Hex. Castellated Nut M20. Legend 600. Legend 700. Legend 800.Hex. Castellated Nut M20. Legend 600. Legend 700. Legend 800.
-
29417000900 Spring Washer. Legend 500.Spring Washer. Legend 500.
-
30371801300 Cotter Pin. Legend 500.Cotter Pin. Legend 500.
-
371006300 Cotter Pin. Legend 600. Legend 700. Legend 800.Cotter Pin. Legend 600. Legend 700. Legend 800.
-
31504151830 Drive Chain Large (72 Links) (Olympic). Legend 700.Drive Chain Large (72 Links) (Olympic). Legend 700.
-
504151859 Drive Chain Narrow (74 Links). Legend 500.Drive Chain Narrow (74 Links). Legend 500.
-
504151857 Drive Chain Large (74 Links). Legend 600. Legend 700. Legend 800.Drive Chain Large (74 Links). Legend 600. Legend 700. Legend 800.
-
32504148600 43 Teeth Sprocket (Large). Legend 500.43 Teeth Sprocket (Large). Legend 500.
-
504148500 43 Teeth Sprocket (Large). Legend 600. Legend 700. Legend 800.43 Teeth Sprocket (Large). Legend 600. Legend 700. Legend 800.
-
33415064300 Circlip (Interior)Circlip (Interior)
-
34415046400 O-RingO-Ring
-
35504152027 Chaincase CoverChaincase Cover
-
36207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
37234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
38210263080 Hex. Forming Screw M6 x 30Hex. Forming Screw M6 x 30
-
39504151703 Filler Cap Ass'yFiller Cap Ass'y
-
40414969400 O-RingO-Ring
-
41413803300 Synthetic Chaincase Oil,. 12 x 355 mlSynthetic Chaincase Oil,. 12 x 355 ml
-
42414575600 Hair PinHair Pin
-
43504151921 Plug 1/8-27Plug 1/8-27
-
44501022400 CapCap
-
45504152005 Ball BearingBall Bearing
-
46501021800 Inner ShimInner Shim
-
47504151918 Oil Seal Ass'yOil Seal Ass'y
-
48504151945 Spring. Legend 800.Spring. Legend 800.
-
49503125900 Hardened Washer. Legend 800.Hardened Washer. Legend 800.
