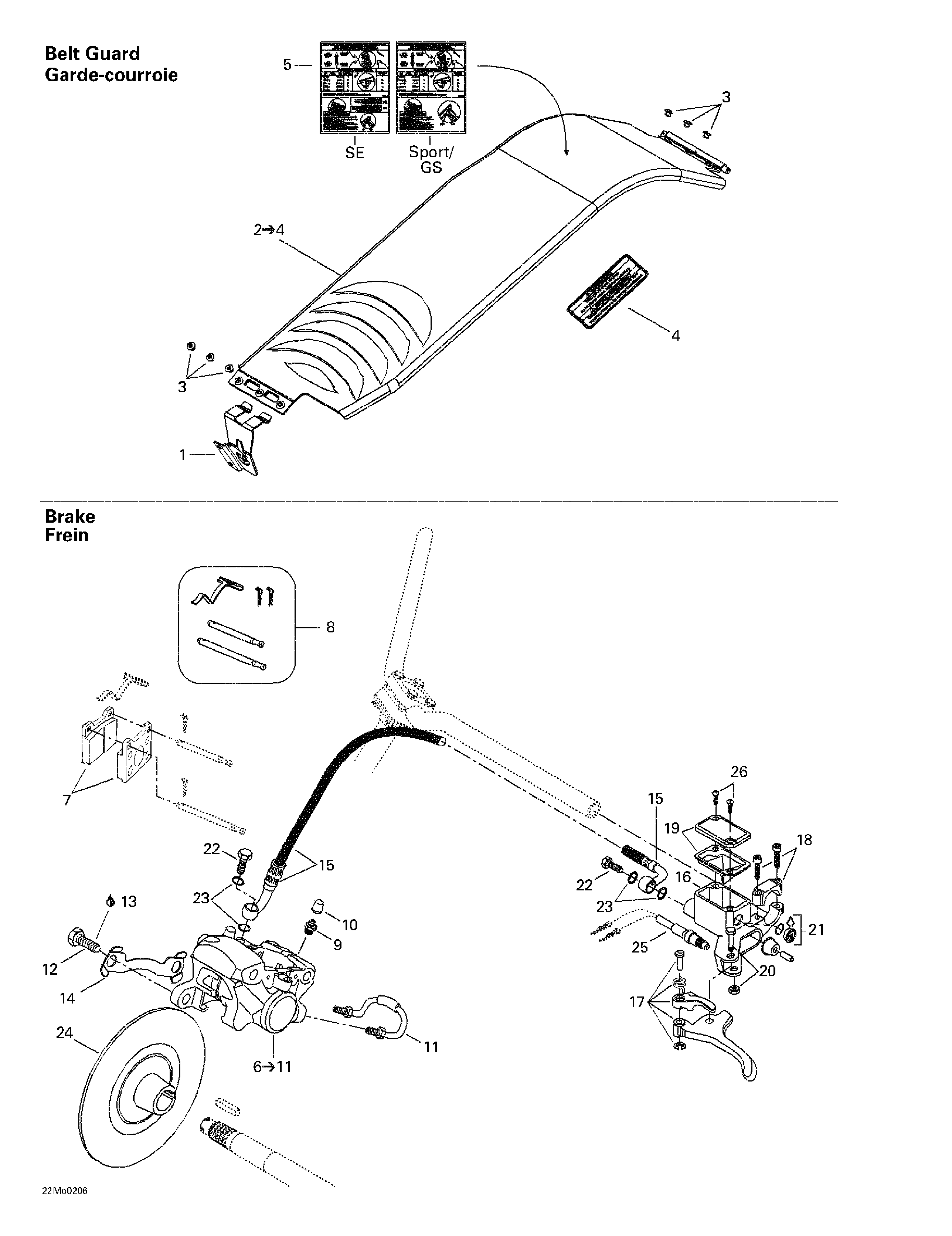

06- Hydraulic Brake And Belt Guard для BRP Ski-Doo Legend 500/600/700/800 - 2002
-
№АртикулНазвание
-
1417300001 BracketBracket
-
2417300173 Belt Guard Ass'y. Includes 2 - 4.Belt Guard Ass'y. Includes 2 - 4.
-
3390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
4516001190 Warning LabelWarning Label
-
5516001284 Suspension Adjustment Decal. (Sport/GS) Legend 500. Legend 600. Legend 700.Suspension Adjustment Decal. (Sport/GS) Legend 500. Legend 600. Legend 700.
-
516000957 Suspension Adjustment Decal. (SE) Legend 600. Legend 800.Suspension Adjustment Decal. (SE) Legend 600. Legend 800.
-
6415034500 Caliper. Includes 6 - 11. Legend 500. Legend 600. Legend 700.Caliper. Includes 6 - 11. Legend 500. Legend 600. Legend 700.
-
507032321 Caliper. Legend 800.Caliper. Legend 800.
-
7415053600 Brake Lining KitBrake Lining Kit
-
8414990700 Kit (Pins, Retainers, Spring)Kit (Pins, Retainers, Spring)
-
9414989800 Screw-BleederScrew-Bleeder
-
10414989700 BootBoot
-
11414989900 Rigid TubingRigid Tubing
-
12207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
13293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
14507032316 Locking TabLocking Tab
-
15507032237 Hose. Legend 500. Legend 600. Legend 700.Hose. Legend 500. Legend 600. Legend 700.
-
507032327 Hose. Legend 600. Legend 800.Hose. Legend 600. Legend 800.
-
16507032293 Master Cylinder. Includes 16 - 21.Master Cylinder. Includes 16 - 21.
-
17507032268 Brake Short Lever Ass'yBrake Short Lever Ass'y
-
18415029800 Clamp Ass'yClamp Ass'y
-
19415029900 CapCap
-
20415030000 Pin Ass'yPin Ass'y
-
21414990600 WindowWindow
-
22414920500 Banjo BoltBanjo Bolt
-
23414920600 WasherWasher
-
24507032203 Brake Disk. Legend 500.Brake Disk. Legend 500.
-
507031300 Brake Disk. Legend 600. Legend 700. Legend 800.Brake Disk. Legend 600. Legend 700. Legend 800.
-
25507032334 MicroswitchMicroswitch
-
26216141260 Screw M4 x 12Screw M4 x 12
