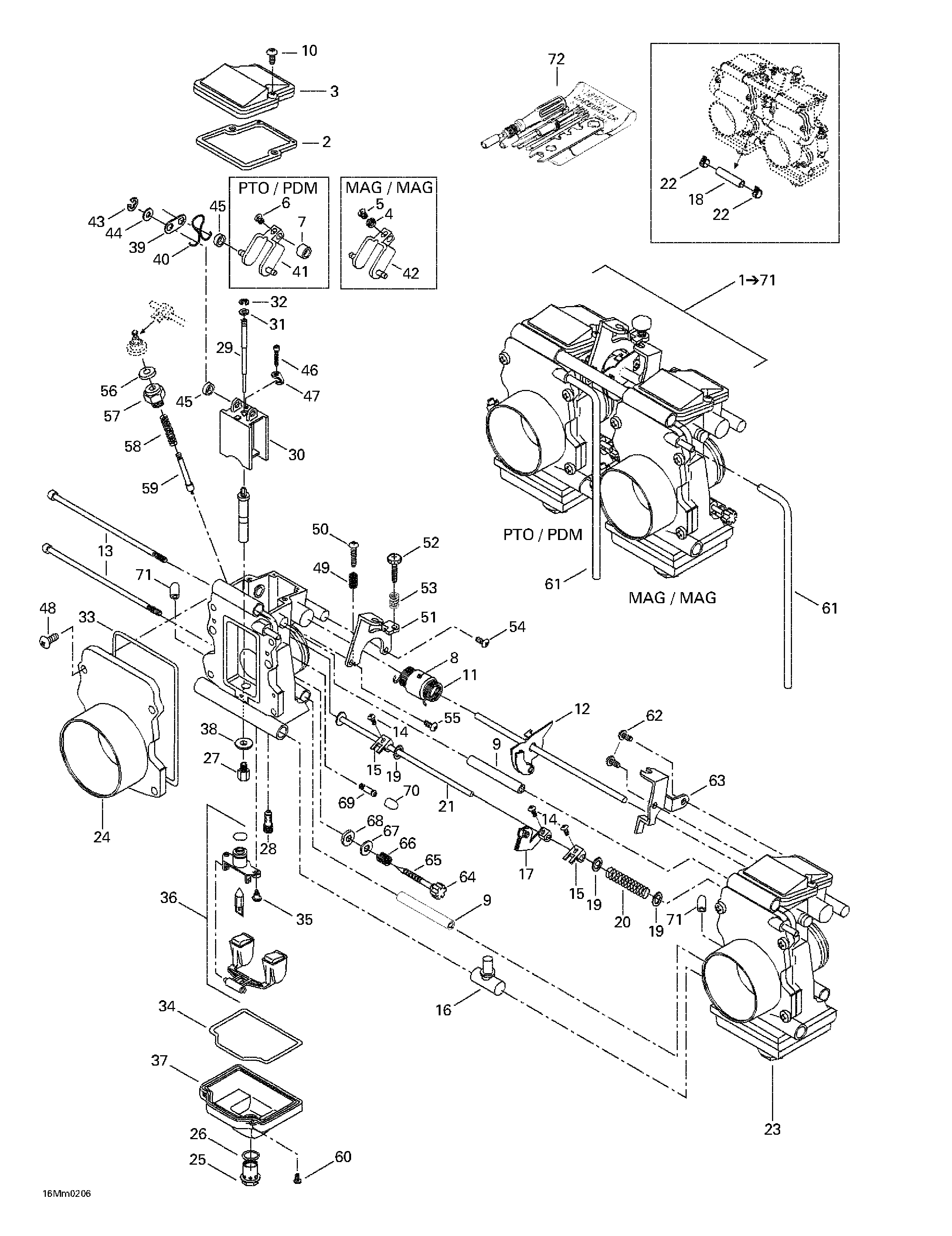

02- Carburetors для BRP Ski-Doo Legend 500/600/700/800 - 2002
-
№АртикулНазвание
-
1403138701 Carburetor Kit TM-40-B151. Includes 1 - 71. Legend 500.Carburetor Kit TM-40-B151. Includes 1 - 71. Legend 500.
-
403138700 Carburetor Kit TM-40-B154. Legend 600.Carburetor Kit TM-40-B154. Legend 600.
-
403138699 Carburetor Kit TM-40-B160. Legend 700.Carburetor Kit TM-40-B160. Legend 700.
-
403138698 Carburetor Kit TM-40-B166. Legend 800.Carburetor Kit TM-40-B166. Legend 800.
-
2404161940 GasketGasket
-
3404161939 CoverCover
-
4404161937 RingRing
-
5404161936 ScrewScrew
-
6404161928 ScrewScrew
-
7404161926 RingRing
-
8404161925 RingRing
-
9404161924 RingRing
-
10404161923 ScrewScrew
-
11404161915 SpringSpring
-
12404161914 Throttle ShaftThrottle Shaft
-
13404161911 ScrewScrew
-
14404161910 ScrewScrew
-
15404161909 LeverLever
-
16404161905 NippleNipple
-
17404161901 Starter LeverStarter Lever
-
18404161956 HoseHose
-
19404161894 PackingPacking
-
20404103500 SpringSpring
-
21404161892 Shaft. Legend 500.Shaft. Legend 500.
-
404161981 Shaft. Legend 600. Legend 700. Legend 800.Shaft. Legend 600. Legend 700. Legend 800.
-
22404161957 ClipClip
-
24404161959 Funnel (PTO)Funnel (PTO)
-
404161958 Funnel (MAG)Funnel (MAG)
-
25404161955 Drain ScrewDrain Screw
-
26404161945 O-RingO-Ring
-
27404108200 Main Jet 500. Legend 500. Legend 600.Main Jet 500. Legend 500. Legend 600.
-
404161983 Main Jet 510N. Legend 700.Main Jet 510N. Legend 700.
-
404161984 Main Jet 520N. Legend 800.Main Jet 520N. Legend 800.
-
28404161944 Pilot Jet 17.5. Legend 500. Legend 700. Legend 800.Pilot Jet 17.5. Legend 500. Legend 700. Legend 800.
-
404108600 Pilot Jet 20. Legend 600.Pilot Jet 20. Legend 600.
-
29404161980 Needle J8-9ghy01-58. Legend 500. Legend 600.Needle J8-9ghy01-58. Legend 500. Legend 600.
-
404161953 Needle J8-9zly03-58. Legend 700.Needle J8-9zly03-58. Legend 700.
-
404161962 Needle J8-9zly02-58. Legend 800.Needle J8-9zly02-58. Legend 800.
-
30404161950 Piston Valve 2.0Piston Valve 2.0
-
31404137600 PackingPacking
-
32404152200 E-RingE-Ring
-
33404161935 O-RingO-Ring
-
34404161961 O-RingO-Ring
-
35404161933 ScrewScrew
-
36404161932 FloatFloat
-
37404161960 Body Float Ass'yBody Float Ass'y
-
39404161930 PlatePlate
-
40404161929 ClipClip
-
41404161927 Lever (PTO)Lever (PTO)
-
42404161938 Lever (MAG)Lever (MAG)
-
43404138300 E-RingE-Ring
-
44404161922 WasherWasher
-
45404161921 RingRing
-
46404161920 ScrewScrew
-
47404161919 PlatePlate
-
48404138800 ScrewScrew
-
49404161918 Spring TM 40-98 (PTO)Spring TM 40-98 (PTO)
-
50404161917 Screw TM 40-98 (PTO)Screw TM 40-98 (PTO)
-
51404161916 Bracket TM 40-98 (PTO)Bracket TM 40-98 (PTO)
-
52404137500 Adjustment Screw TM 40-98 (PTO)Adjustment Screw TM 40-98 (PTO)
-
53404161913 Spring TM 40-98 (PTO)Spring TM 40-98 (PTO)
-
54404161912 Screw TM 40-98 (PTO)Screw TM 40-98 (PTO)
-
55404136100 Screw TM 40-98 (PTO)Screw TM 40-98 (PTO)
-
56404140000 CapCap
-
57404136900 Guide HolderGuide Holder
-
58404161908 SpringSpring
-
59404161907 Plunger Ass'yPlunger Ass'y
-
60404161906 ScrewScrew
-
61404161904 HoseHose
-
62404161903 Screw (MAG)Screw (MAG)
-
63404161902 Bracket (MAG)Bracket (MAG)
-
64404161899 CapCap
-
65404161898 AdjusterAdjuster
-
66404161897 SpringSpring
-
67404161896 WasherWasher
-
68404161895 PackingPacking
-
69404153400 NippleNipple
-
70404154900 CapCap
-
71270500095 CapCap
-
72404112000 Tool KitTool Kit
