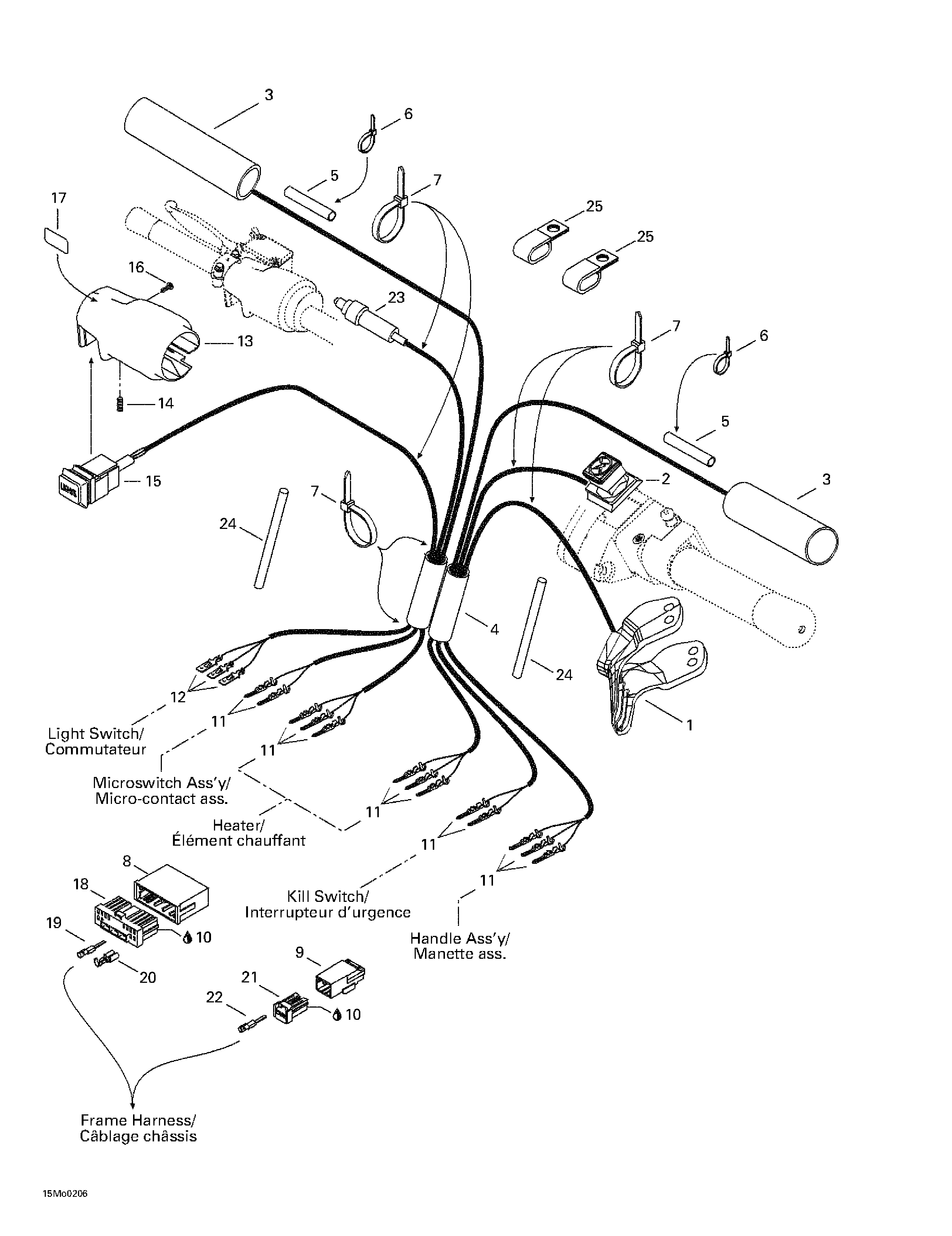

07- Steering System для BRP Ski-Doo Legend 500/600/700/800 - 2002
-
№АртикулНазвание
-
1512059481 Throttle Handle Ass'y 38 mm (SE). Legend 600. Legend 800.Throttle Handle Ass'y 38 mm (SE). Legend 600. Legend 800.
-
1512059107 Throttle Handle Ass'y 28 mm (GS, Sport). Legend 500. Legend 600. Legend 700.Throttle Handle Ass'y 28 mm (GS, Sport). Legend 500. Legend 600. Legend 700.
-
2515175410 Kill Switch (GS, Sport). Legend 500. Legend 600. Legend 700.Kill Switch (GS, Sport). Legend 500. Legend 600. Legend 700.
-
2512059482 Kill Switch (SE). Legend 600. Legend 800.Kill Switch (SE). Legend 600. Legend 800.
-
3515175657 Heating Element (GS, Sport). Legend 500. Legend 600. Legend 700.Heating Element (GS, Sport). Legend 500. Legend 600. Legend 700.
-
3515175687 Heating Element (SE). Legend 600. Legend 800.Heating Element (SE). Legend 600. Legend 800.
-
4515175314 Low Temperature Tubing 5/8'' (GS, Sport). Legend 500. Legend 600. Legend 700.Low Temperature Tubing 5/8'' (GS, Sport). Legend 500. Legend 600. Legend 700.
-
5515175332 Low Temperature Tubing 1/4'' (GS, Sport). Legend 500. Legend 600. Legend 700.Low Temperature Tubing 1/4'' (GS, Sport). Legend 500. Legend 600. Legend 700.
-
6293750001 Tie Rap 94 mmTie Rap 94 mm
-
7414115200 Tie Rap 180 mm (GS, Sport). Legend 500. Legend 600. Legend 700.Tie Rap 180 mm (GS, Sport). Legend 500. Legend 600. Legend 700.
-
8515175352 Male Terminal Housing (13 circuits)Male Terminal Housing (13 circuits)
-
9515175494 Male Terminal Housing (3 circuits)Male Terminal Housing (3 circuits)
-
10293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
11515175232 Male TerminalMale Terminal
-
12515175273 Male TerminalMale Terminal
-
13515175696 Brake HousingBrake Housing
-
14414440800 Set ScrewSet Screw
-
15515175563 Light Switch (GS, Sport). Legend 500. Legend 600. Legend 700.Light Switch (GS, Sport). Legend 500. Legend 600. Legend 700.
-
15515175686 Light Switch (SE). Legend 600. Legend 800.Light Switch (SE). Legend 600. Legend 800.
-
16250000022 Phillips ScrewPhillips Screw
-
17415025500 Switch DecalSwitch Decal
-
18515175350 Femelle Terminal Housing (13 circuits)Femelle Terminal Housing (13 circuits)
-
19515175231 Female Terminal (16-20 Gauge)Female Terminal (16-20 Gauge)
-
20515175282 Female Terminal (14-20 Gauge)Female Terminal (14-20 Gauge)
-
21515175495 Femelle Terminal Housing (3 circuits)Femelle Terminal Housing (3 circuits)
-
22515175231 Female Terminal (16-20 Gauge)Female Terminal (16-20 Gauge)
-
23507032334 MicroswitchMicroswitch
-
24515175506 Tubing (SE). Legend 600. Legend 800.Tubing (SE). Legend 600. Legend 800.
-
25515175507 Clip (SE). Legend 600. Legend 800.Clip (SE). Legend 600. Legend 800.
