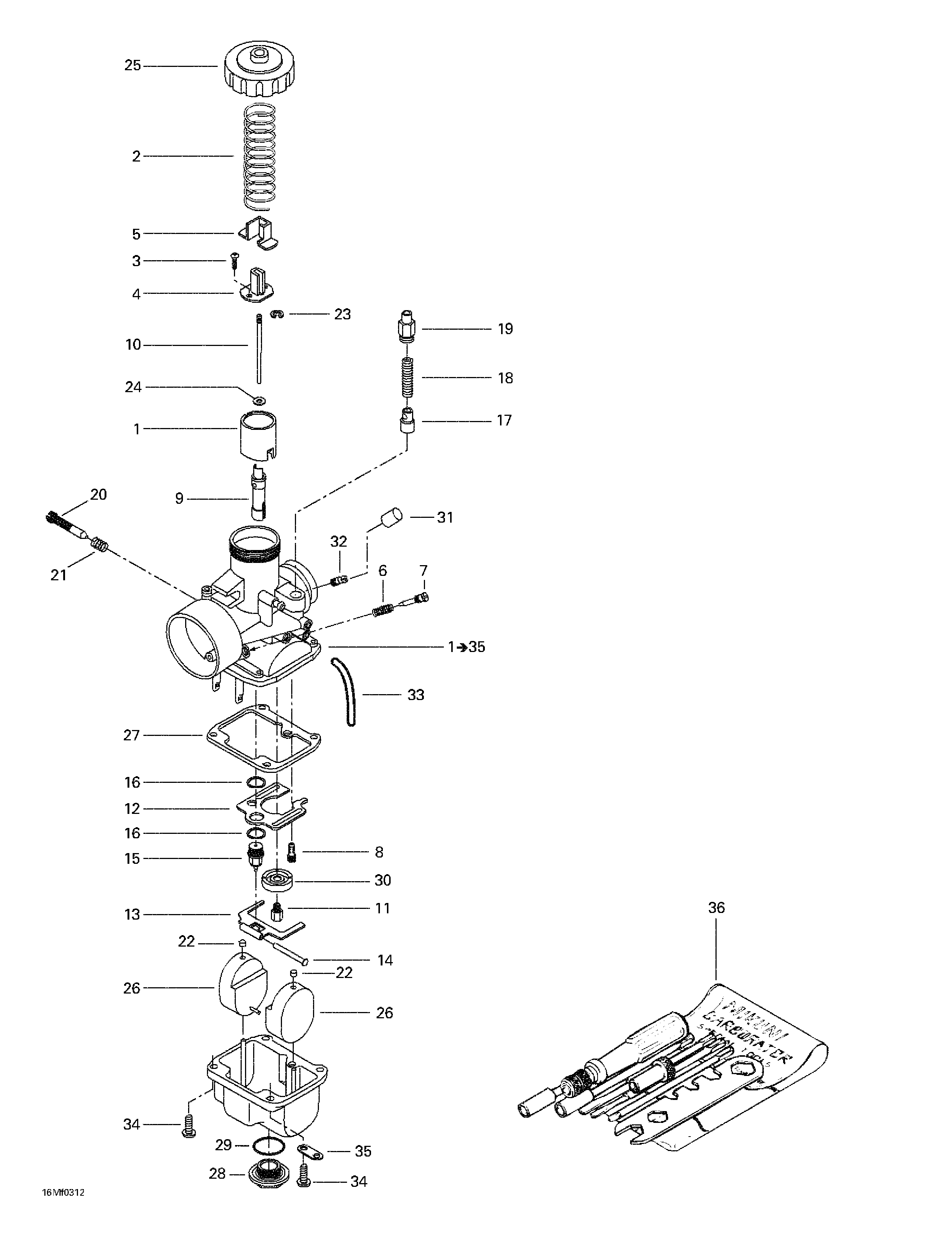

02- Carburetors для BRP Ski-Doo Skandic 500F - 2003
-
№АртикулНазвание
-
1403138697 Carburetor VM 34-576. Includes 1 - 35.Carburetor VM 34-576. Includes 1 - 35.
-
1404128600 Piston Valve CA 2.0Piston Valve CA 2.0
-
2404154800 SpringSpring
-
3404121300 Screw with WasherScrew with Washer
-
4404161987 PackingPacking
-
5404122100 CoverCover
-
6404139800 Spring (Air Screw)Spring (Air Screw)
-
7404149000 Air ScrewAir Screw
-
8404109100 Pilot Jet PJ 40Pilot Jet PJ 40
-
9404103600 Needle Jet NJ P-4 (159)Needle Jet NJ P-4 (159)
-
10404161989 Jet Needle JN J8-6AFY05Jet Needle JN J8-6AFY05
-
11404119100 Main Jet MJ 210Main Jet MJ 210
-
12404109600 BaffleBaffle
-
13404107600 Float LeverFloat Lever
-
14404103300 Lever PinLever Pin
-
15404147500 Needle Valve 1.2Needle Valve 1.2
-
16404101600 Seat WasherSeat Washer
-
17404161986 Plunger Ass'yPlunger Ass'y
-
18404127400 SpringSpring
-
19404161100 GuideGuide
-
20404125200 Throttle ScrewThrottle Screw
-
21404101700 Spring (Throttle Screw)Spring (Throttle Screw)
-
22404105800 CapCap
-
23404152400 E-RingE-Ring
-
24404117000 PackingPacking
-
25404103700 CoverCover
-
26404107100 FloatFloat
-
27404104200 GasketGasket
-
28404107400 Drain Plug ScrewDrain Plug Screw
-
29404107300 O-RingO-Ring
-
30404110900 Baffle RingBaffle Ring
-
31404156600 CapCap
-
32404153400 NippleNipple
-
33404161851 Air Vent TubeAir Vent Tube
-
34404102000 Screw and Lock WasherScrew and Lock Washer
-
35404103000 PlatePlate
-
36404112000 Tool KitTool Kit
