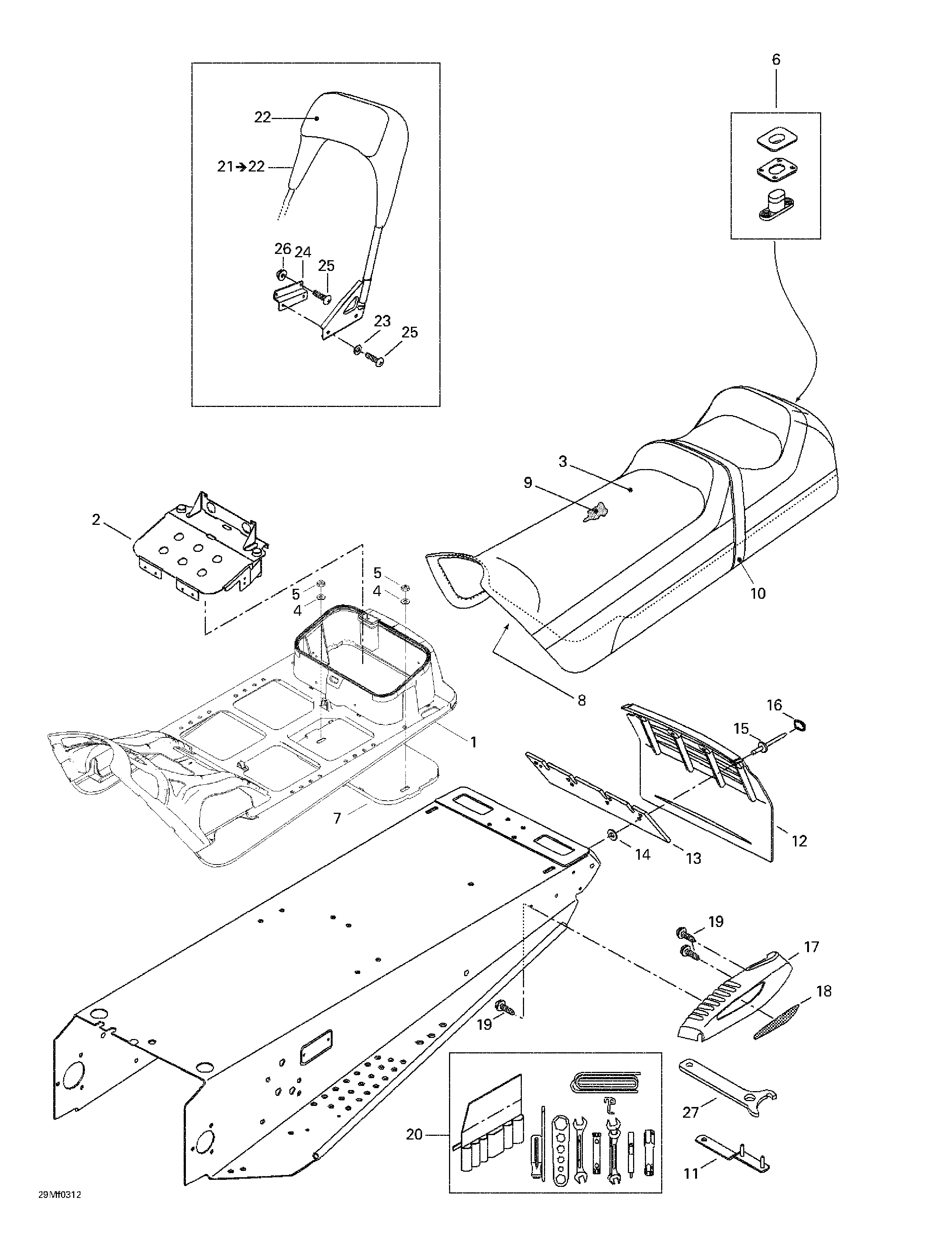

09- Seat And Accessories для BRP Ski-Doo Skandic 500F - 2003
-
№АртикулНазвание
-
1510003980 Sub-SeatSub-Seat
-
2510003976 Seat Painted SupportSeat Painted Support
-
3510004105 Seat CoverSeat Cover
-
4234082410 Flat WasherFlat Washer
-
5232581414 Elastic Nut M8Elastic Nut M8
-
6414728000 Buckle-SeatBuckle-Seat
-
7572107601 Under ChestUnder Chest
-
8510003944 Seat Foam (Bottom)Seat Foam (Bottom)
-
9510003981 Seat Foam (Top)Seat Foam (Top)
-
10510004038 Seat BeltSeat Belt
-
11520000126 Wrench-AdjusterWrench-Adjuster
-
12520000000 Snow GuardSnow Guard
-
13572108200 ReinforcementReinforcement
-
14517225900 WasherWasher
-
15293150087 Pop Rivet 3/16'' (Black)Pop Rivet 3/16'' (Black)
-
16415073300 CapCap
-
17861780300 R.H. MouldingR.H. Moulding
-
861780400 L.H. MouldingL.H. Moulding
-
18516000237 R.H. ReflectorR.H. Reflector
-
516000238 LH ReflectorLH Reflector
-
19243141640 Hex. Flanged ScrewHex. Flanged Screw
-
20529035596 Tool KitTool Kit
-
21510004068 Seat Backrest Ass'y. Includes 21 - 22.Seat Backrest Ass'y. Includes 21 - 22.
-
22510004071 Backrest CoverBackrest Cover
-
23234181601 Lock Washer 8 mmLock Washer 8 mm
-
24510003609 Z-PlateZ-Plate
-
25236282084 Screw M8 x 20Screw M8 x 20
-
26233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
27529032900 Wrench-AdjusterWrench-Adjuster
