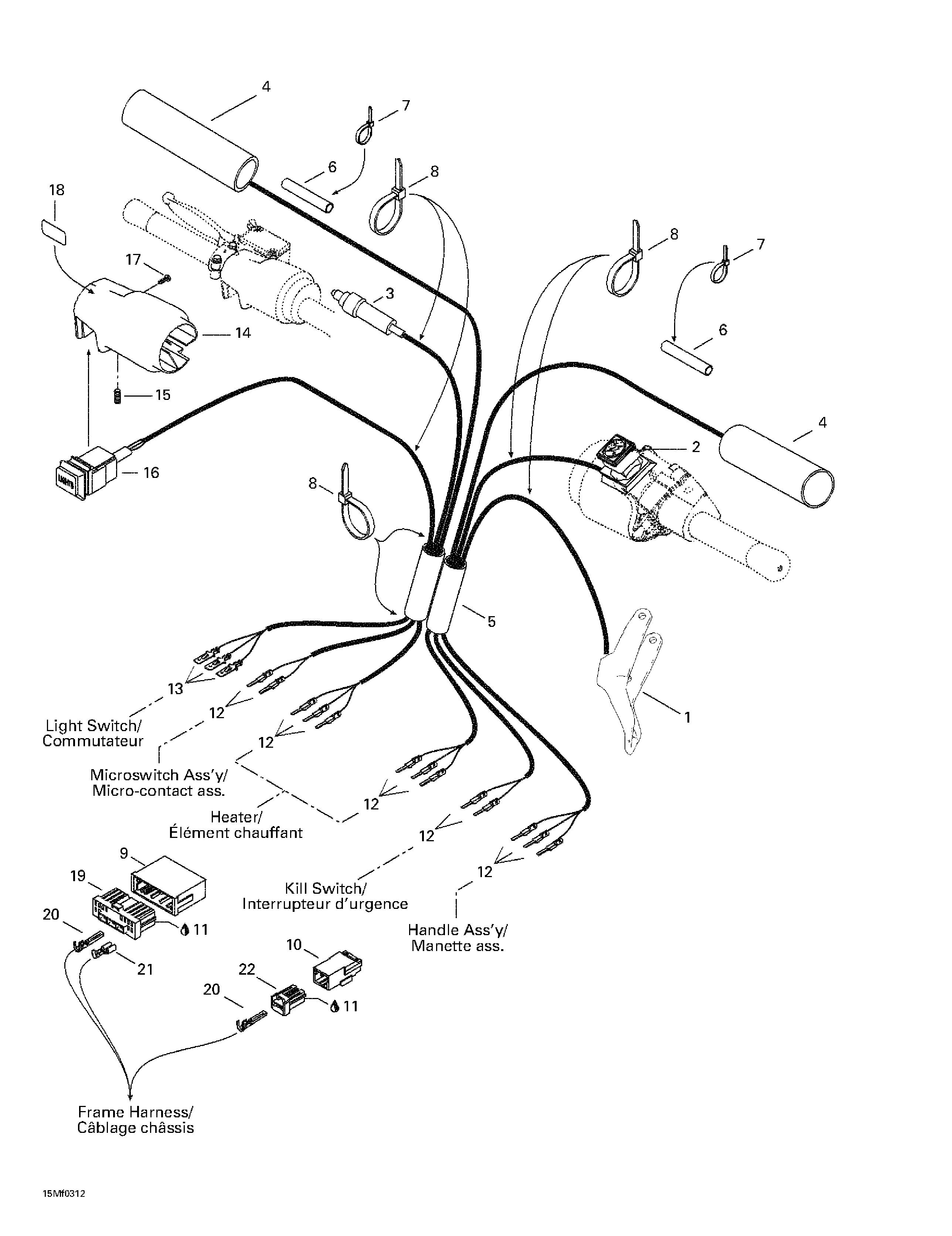

07- Steering System для BRP Ski-Doo Skandic 500F - 2003
-
№АртикулНазвание
-
1512059623 Heat Throttle Handle (34 mm)Heat Throttle Handle (34 mm)
-
2515175410 Kill SwitchKill Switch
-
3507032366 MicroswitchMicroswitch
-
4515175657 Heating ElementHeating Element
-
5515175314 Low Temperature Tubing 5/8''Low Temperature Tubing 5/8''
-
6515175332 Low Temperature Tubing 1/4''Low Temperature Tubing 1/4''
-
7293750001 Tie Rap 94 mmTie Rap 94 mm
-
8414115200 Tie Rap 180 mmTie Rap 180 mm
-
9515175352 Male Terminal Housing (13 Circuits)Male Terminal Housing (13 Circuits)
-
10515175494 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
11293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
12515175232 Male TerminalMale Terminal
-
13515175273 Male TerminalMale Terminal
-
14515175696 Brake HousingBrake Housing
-
15414440800 Set Screw M8 x 10Set Screw M8 x 10
-
16515175814 Light SwitchLight Switch
-
17250000022 Phillips ScrewPhillips Screw
-
18415025500 Switch DecalSwitch Decal
-
19515175350 Female Terminal Housing (13 Circuits)Female Terminal Housing (13 Circuits)
-
20515175231 Female TerminalFemale Terminal
-
21515175282 Female TerminalFemale Terminal
-
22515175495 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
