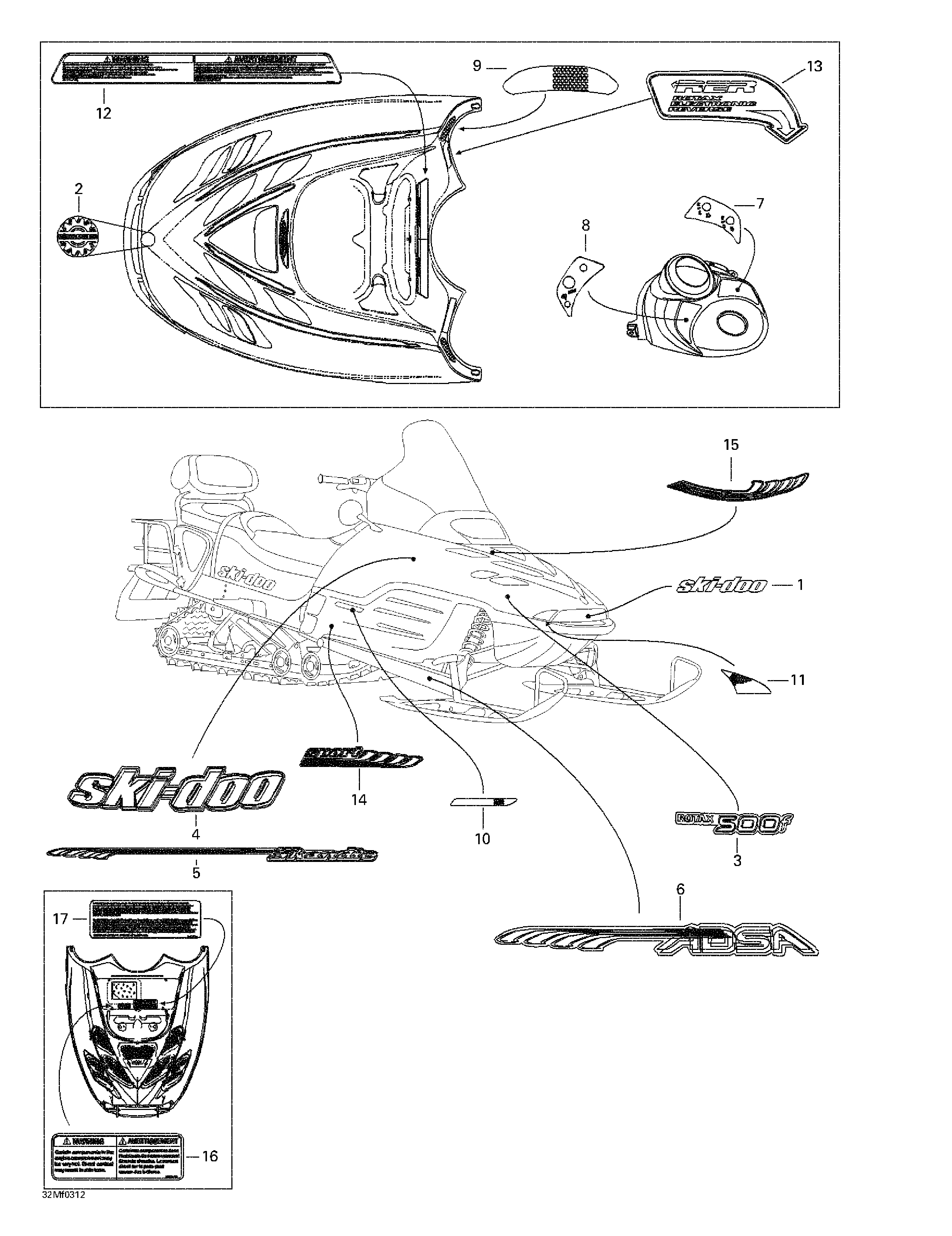

09- Decals для BRP Ski-Doo Skandic 500F - 2003
-
№АртикулНазвание
-
1516000261 > Decal> Decal
-
2516000983 BOMBARDIER LogoBOMBARDIER Logo
-
3516001606 > Decal Kit> Decal Kit
-
4516001415 Side Decal ''Ski-Doo''Side Decal ''Ski-Doo''
-
5415128441 Lower Side Decal KitLower Side Decal Kit
-
6415128442 Arm Decal KitArm Decal Kit
-
7516000227 Heat Thumb DecalHeat Thumb Decal
-
8516001227 Ingnition DecalIngnition Decal
-
9516000224 Reflector Decal (Yellow)Reflector Decal (Yellow)
-
10415064400 R.H. Reflector (Yellow)R.H. Reflector (Yellow)
-
415064401 L.H. Reflector (Yellow)L.H. Reflector (Yellow)
-
11415127656 Reflector KitReflector Kit
-
12516001229 Warning LabelWarning Label
-
13516001002 RER DecalRER Decal
-
14415128443 Lower Rear Side Decal KitLower Rear Side Decal Kit
-
15415128444 Front Decal KitFront Decal Kit
-
16516001297 Security LabelSecurity Label
-
17516001681 Label PendingLabel Pending
-
18415128445 Hood Decal Kit (not shown). (Incl. Item 4,5,9,11,14,15)Hood Decal Kit (not shown). (Incl. Item 4,5,9,11,14,15)
