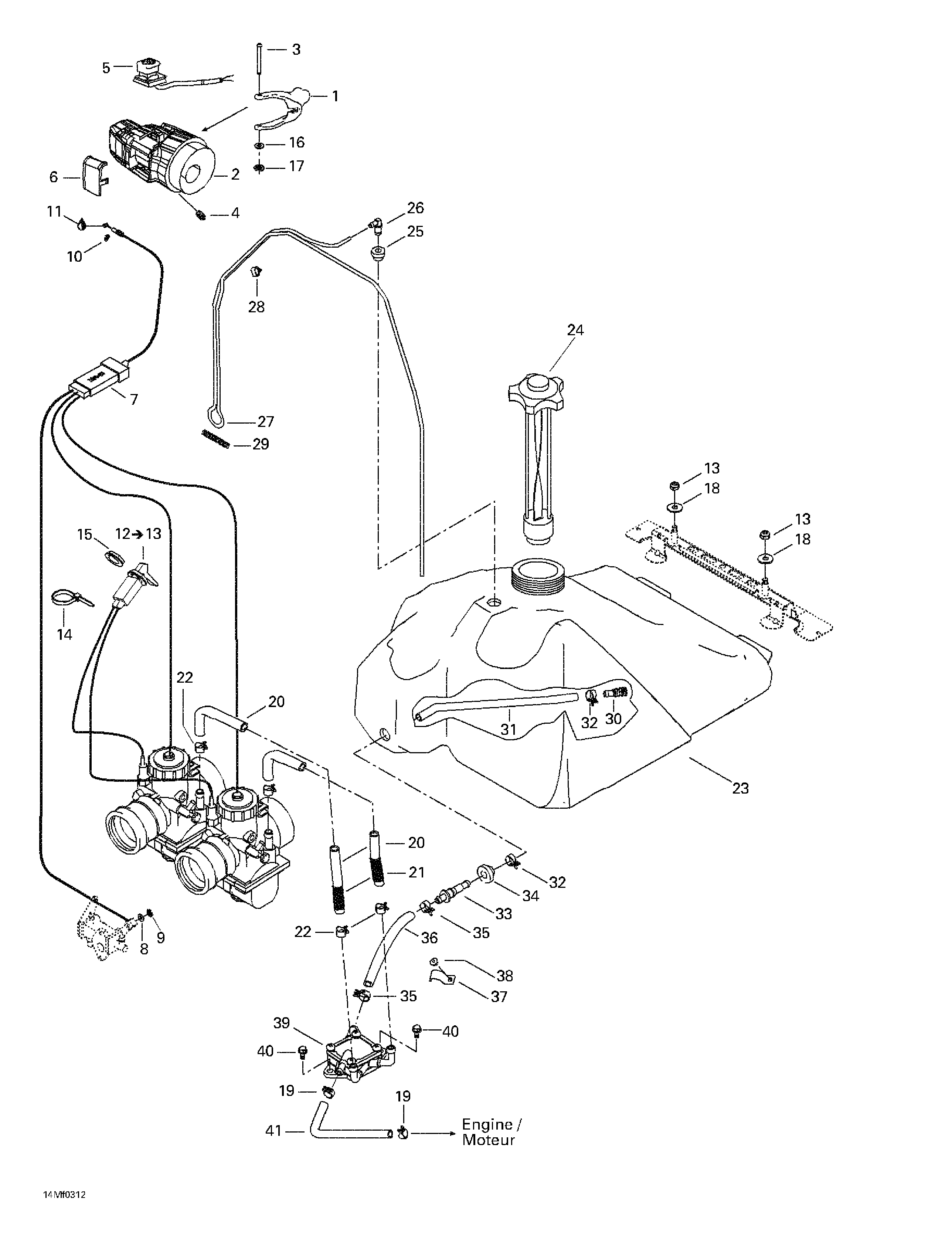

02- Fuel System для BRP Ski-Doo Skandic 500F - 2003
-
№АртикулНазвание
-
1512059623 Heat Throttle Handle 34 mmHeat Throttle Handle 34 mm
-
2572100900 Throttle Handle HousingThrottle Handle Housing
-
3414438700 Lever PinLever Pin
-
4414440800 Set Screw M8 x 10Set Screw M8 x 10
-
5515175410 Kill SwitchKill Switch
-
6572100901 Switch CoverSwitch Cover
-
7512059625 Throttle CableThrottle Cable
-
8414753300 WasherWasher
-
9414753500 CirclipCirclip
-
10414274500 CirclipCirclip
-
11293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
12512059441 Choke Cable. Includes 12 - 13.Choke Cable. Includes 12 - 13.
-
13232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
14293750009 Tie Rap 160 mmTie Rap 160 mm
-
15512059094 Plastic NutPlastic Nut
-
16414438900 WasherWasher
-
17414439000 CirclipCirclip
-
18234082410 Flat Washer 8 mmFlat Washer 8 mm
-
19414415200 Spring ClampSpring Clamp
-
20513033022 HoseHose
-
21415080000 TubingTubing
-
22513033029 Spring ClampSpring Clamp
-
23513032987 Fuel TankFuel Tank
-
24513033020 Fuel Tank CapFuel Tank Cap
-
25513032908 GrommetGrommet
-
26414814100 Male ConnectorMale Connector
-
27415080100 Primer LinePrimer Line
-
28513032923 Tube ClampTube Clamp
-
29414818200 SpringSpring
-
30414872100 Fuel FilterFuel Filter
-
31415005700 HoseHose
-
32513033010 Spring ClampSpring Clamp
-
33414872700 Male ConnectorMale Connector
-
34570273900 GrommetGrommet
-
35513032979 Spring ClampSpring Clamp
-
36513032903 Formed HoseFormed Hose
-
37415018200 ClipClip
-
38293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
39403901813 Fuel PumpFuel Pump
-
40210261680 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
41415079800 Rubber HoseRubber Hose
