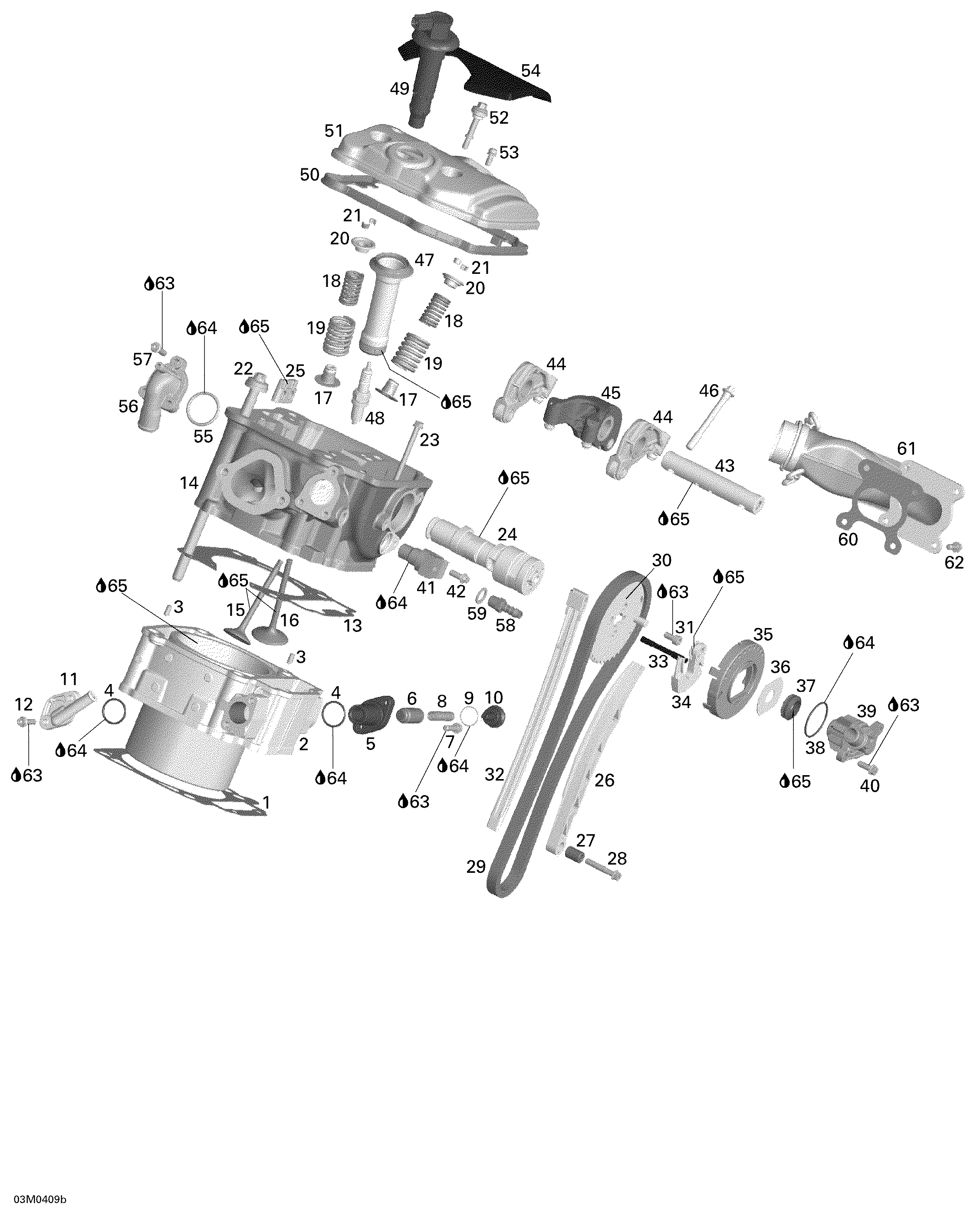

01- Cylinder and Cylinder Head - Rear Side для BRP Ski-Doo Legend V-1000 - 2004
-
№АртикулНазвание
-
1420630080 GasketGasket
-
2420923948 Cylinder Ass'Y. Includes 2 to 3Cylinder Ass'Y. Includes 2 to 3
-
3420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
4420430370 O-RingO-Ring
-
5420236510 Chain Tensioner HousingChain Tensioner Housing
-
6420236520 Chain Tensioner PlungerChain Tensioner Plunger
-
7420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
8420238120 SpringSpring
-
9420250890 O-RingO-Ring
-
10420641150 Plug Screw M18 X 1Plug Screw M18 X 1
-
11420960810 Connection CoverConnection Cover
-
12420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
13420950660 GasketGasket
-
14420613475 Cylinder Head Ass'YCylinder Head Ass'Y
-
15420254027 Exhaust Valve 31 mmExhaust Valve 31 mm
-
16420254290 Intake Valve 38 mmIntake Valve 38 mm
-
17420630200 Valve Stem SealValve Stem Seal
-
18420838280 Valve Spring InsideValve Spring Inside
-
19420238180 Valve SpringValve Spring
-
20420254280 Valve Spring RetainerValve Spring Retainer
-
21420253645 Valve CotterValve Cotter
-
22420641020 Torx Screw M11 X 215Torx Screw M11 X 215
-
23420440612 Hex Flanged Screw M6 X 105Hex Flanged Screw M6 X 105
-
24420837456 Camshaft (Rear)Camshaft (Rear)
-
25420851692 Camshaft GuideCamshaft Guide
-
26420236540 Chain Tension GuideChain Tension Guide
-
27420247100 Distance SleeveDistance Sleeve
-
28420440272 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
29420297957 Camshaft ChainCamshaft Chain
-
30420254307 Timing Gear (38 Teeth)Timing Gear (38 Teeth)
-
31420841339 Socket Head Screw M6 X 12Socket Head Screw M6 X 12
-
32420236500 Chain GuideChain Guide
-
33420220790 Deko ShaftDeko Shaft
-
34420231064 Centrifugal Weight Ass'YCentrifugal Weight Ass'Y
-
35420660034 CoverCover
-
36420627494 Thrust WasherThrust Washer
-
37420630125 V-RingV-Ring
-
38420950870 O-RingO-Ring
-
39420610272 Camshaft CoverCamshaft Cover
-
40420440162 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
41420664040 Camshaft Sensor Ass'YCamshaft Sensor Ass'Y
-
42420440162 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
43420854599 Rockerarmshaft Ass'YRockerarmshaft Ass'Y
-
44420254326 Rockerarm Ass'Y (Exhaust)Rockerarm Ass'Y (Exhaust)
-
45420254315 Rockerarm Ass'Y (Inlet)Rockerarm Ass'Y (Inlet)
-
46420641080 Torx Screw M8 X 72Torx Screw M8 X 72
-
47420851750 Spark Plug PipeSpark Plug Pipe
-
48707000246 Spark Plug NGK Dcp-R8ESpark Plug NGK Dcp-R8E
-
49420664020 Stick CoilStick Coil
-
50420630071 Sealing RingSealing Ring
-
51420610185 Valve CoverValve Cover
-
52420440307 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
53420641488 SCREWSCREW
-
54420660201 Valve CoverValve Cover
-
55420950890 O-RingO-Ring
-
56420811700 Connecting CoverConnecting Cover
-
57420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
58420440960 Hose NippleHose Nipple
-
59420250640 GasketGasket
-
60420950680 GasketGasket
-
61420973781 Exhaust Manifold Ass'YExhaust Manifold Ass'Y
-
62420440162 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
63293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
64293550030 Grease, Super LubeGrease, Super Lube
-
65293600054 Engine Oil 4 Strokes, 0W40, 12 X 1 LiterEngine Oil 4 Strokes, 0W40, 12 X 1 Liter
