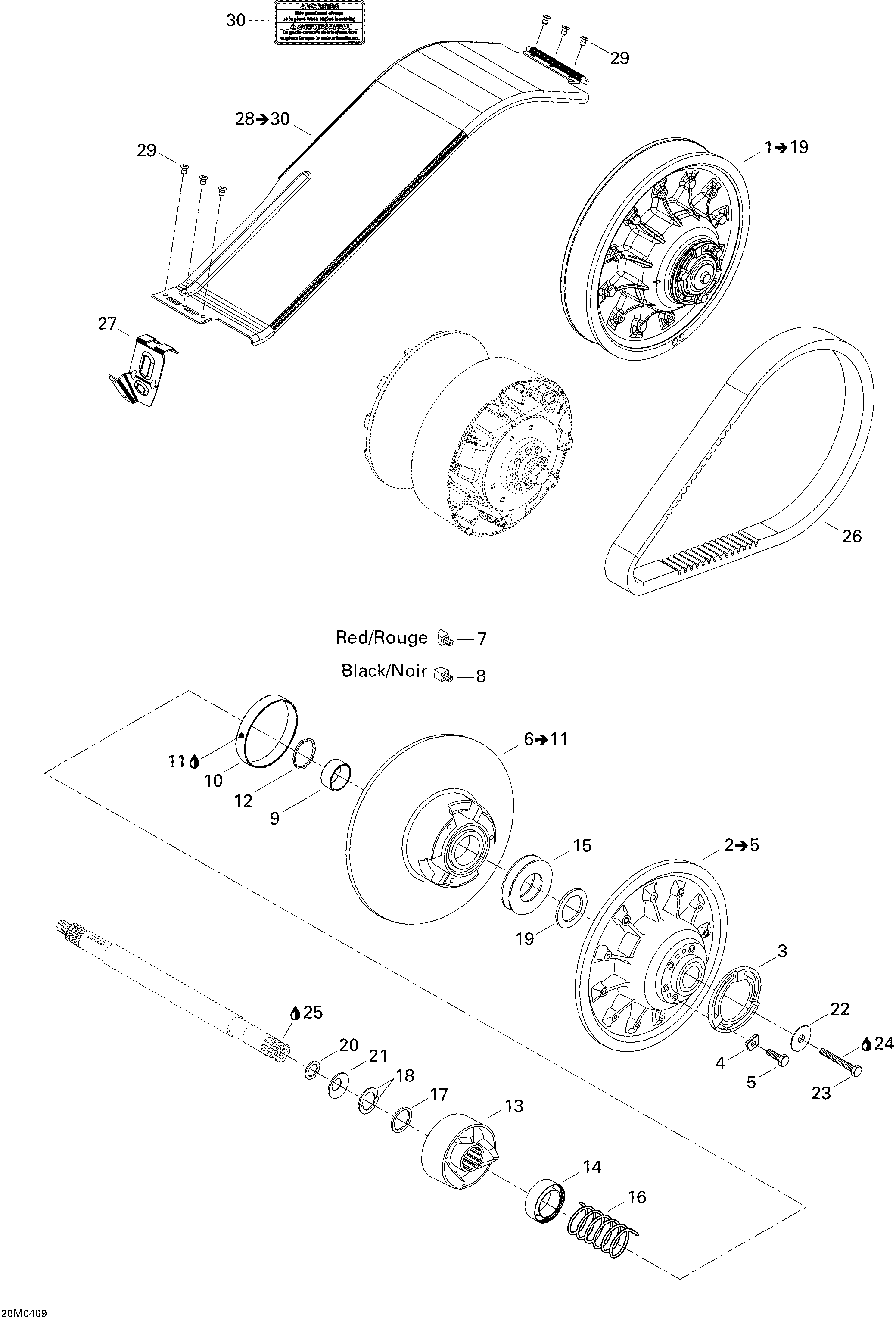

05- Driven Pulley для BRP Ski-Doo Legend V-1000 - 2004
-
№АртикулНазвание
-
2417126603 Fixed Flange Ass'Y. Includes 2 to 5Fixed Flange Ass'Y. Includes 2 to 5
-
3415005800 Adjustment RingAdjustment Ring
-
4415005900 Adjustment ShimAdjustment Shim
-
5207162544 Hex Screw M6 X 25 (3)Hex Screw M6 X 25 (3)
-
207162244 Hex Screw M6 X 22 (3)Hex Screw M6 X 22 (3)
-
6417126605 Sliding Flange Ass'Y. Includes 6 to 12Sliding Flange Ass'Y. Includes 6 to 12
-
7417126373 Rear Cam Slider ShoeRear Cam Slider Shoe
-
8417126374 Front Cam Slider ShoeFront Cam Slider Shoe
-
10414978100 BushingBushing
-
11413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
12371911200 CirclipCirclip
-
13417126721 Cam Ass'YCam Ass'Y
-
14415006000 GuardGuard
-
15504099600 Stopper WasherStopper Washer
-
16417126735 Release SpringRelease Spring
-
17417126733 SpacerSpacer
-
18417126734 Half KeyHalf Key
-
19504112300 ShimShim
-
20417300231 SpacerSpacer
-
21417300238 ProtectorProtector
-
22517302322 Strength WasherStrength Washer
-
23207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
26417300197 Drive BeltDrive Belt
-
27417300172 BracketBracket
-
28417300169 Belt Guard Ass'Y. Includes 28 to 30Belt Guard Ass'Y. Includes 28 to 30
-
29390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
30516001190 Label Security (Belt Guard)Label Security (Belt Guard)
