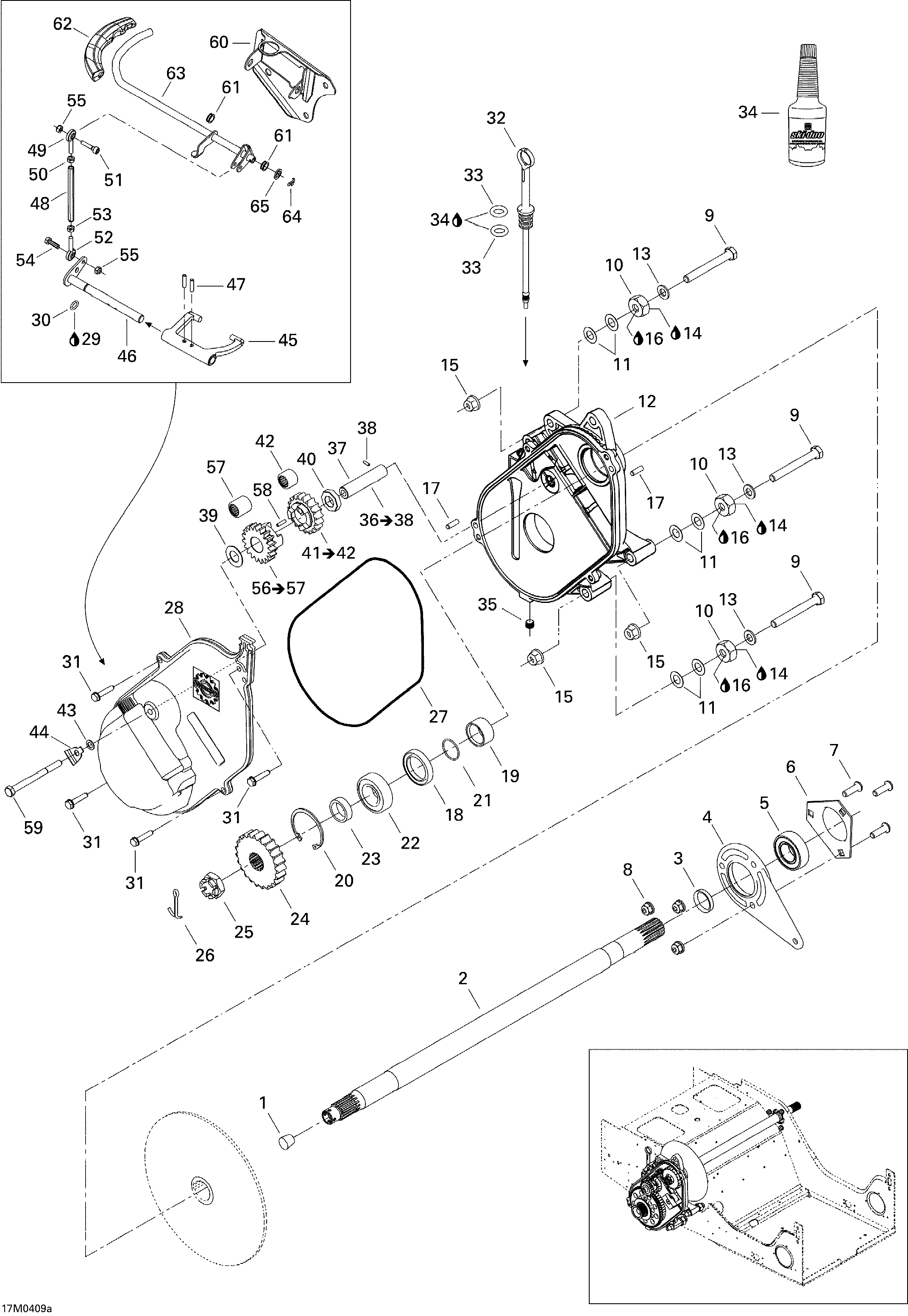

05- Drive System 1 для BRP Ski-Doo Legend V-1000 - 2004
-
№АртикулНазвание
-
1414784800 CorkCork
-
2501026300 Counter ShaftCounter Shaft
-
3504149100 SpacerSpacer
-
480044200 Casting SpacerCasting Spacer
-
5504152026 Ball BearingBall Bearing
-
6501025000 FlangeFlange
-
7205482546 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
8233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
9207108044 Hex Screw M10 X 80Hex Screw M10 X 80
-
10504083800 SpacerSpacer
-
11504073700 WasherWasher
-
12504152062 ChaincaseChaincase
-
13503183800 WasherWasher
-
14293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
15233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
16293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
17732620001 Cylinder PinCylinder Pin
-
18415049300 Oil SealOil Seal
-
19507031500 SpacerSpacer
-
20371901700 Circlip (Interior)Circlip (Interior)
-
21414876700 O-RingO-Ring
-
22504152006 Ball BearingBall Bearing
-
23504147200 ShimShim
-
24504091000 Sprocket (23 Teeth). 23 Teeth (Europe)Sprocket (23 Teeth). 23 Teeth (Europe)
-
504096200 Sprocket (21 Teeth). 21 TeethSprocket (21 Teeth). 21 Teeth
-
25250000012 Hex Castle Nut 20 X 1.5Hex Castle Nut 20 X 1.5
-
26371006300 Pin CotterPin Cotter
-
27415046400 O-RingO-Ring
-
28504151845 CoverCover
-
29219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
30414773200 O-RingO-Ring
-
31210263080 Hex Forming Screw M6 X 30Hex Forming Screw M6 X 30
-
32504151750 Filler Cap Ass'YFiller Cap Ass'Y
-
33414969400 O-RingO-Ring
-
34413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
-
35504151921 Plug 1/8''-27Plug 1/8''-27
-
36504151972 Reverse Shaft Ass'Y. Includes items 36 to 38Reverse Shaft Ass'Y. Includes items 36 to 38
-
37504083100 Reverse ShaftReverse Shaft
-
38250400010 Rolled Pin M3 X 10Rolled Pin M3 X 10
-
39504077300 SpacerSpacer
-
40504078700 RingRing
-
41581096900 Sprock Ass. (19 Teeth). Includes items 41 to 42Sprock Ass. (19 Teeth). Includes items 41 to 42
-
42414773100 Needle BearingNeedle Bearing
-
43504082900 WasherWasher
-
44504087700 Tab LockTab Lock
-
45504075800 ForkFork
-
46504151806 Fork AxleFork Axle
-
47414772500 Spring PinSpring Pin
-
48504151814 Tie RodTie Rod
-
49414773400 RH Ball-JointRH Ball-Joint
-
50232061414 Hex Nut M6Hex Nut M6
-
51205062560 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
52414773500 LH Ball-JointLH Ball-Joint
-
53232066414 Hex Nut M6Hex Nut M6
-
54207162044 Hex Screw M6 X 20Hex Screw M6 X 20
-
55232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
56581122200 Sprock Ass'Y (19 Teeth). Includes items 56 to 57Sprock Ass'Y (19 Teeth). Includes items 56 to 57
-
57414805000 Needle BearingNeedle Bearing
-
58570048600 Alignement RodAlignement Rod
-
59207089044 Hex Screw M8 X 90Hex Screw M8 X 90
-
60504151823 Support (Reverse)Support (Reverse)
-
61504151818 BushingBushing
-
62570064600 GripGrip
-
63504151810 HandleHandle
-
64371800800 Cotter PinCotter Pin
-
65503189264 WasherWasher
