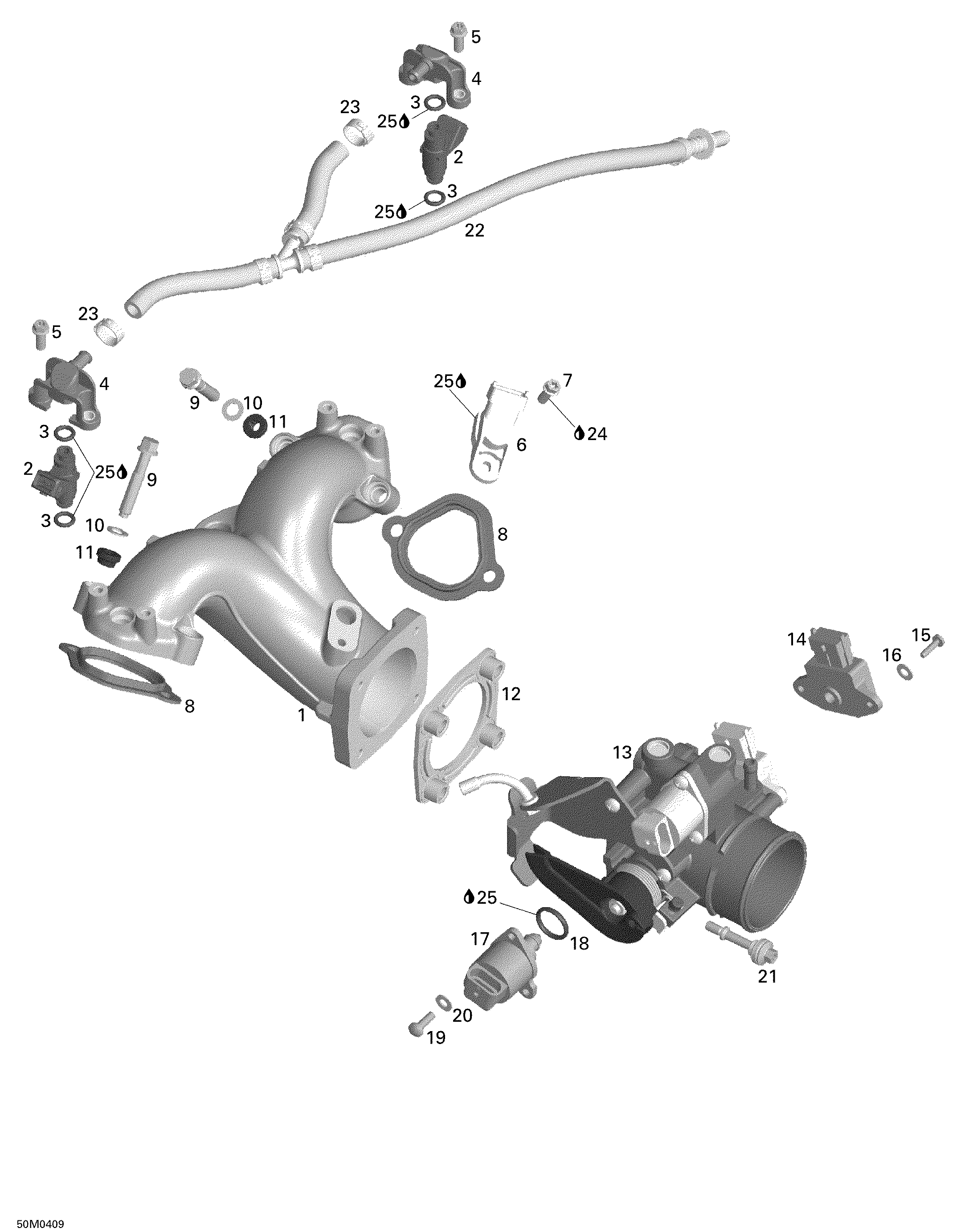

02- Air Inlet Manifold and Throttle Body для BRP Ski-Doo Legend V-1000 - 2004
-
№АртикулНазвание
-
1420867940 Air Inlet ManifoldAir Inlet Manifold
-
2420874402 Injection ValveInjection Valve
-
3420631220 O-RingO-Ring
-
4420874410 Fuel RailFuel Rail
-
5420440162 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
6420274055 Temperature SensorTemperature Sensor
-
7420440162 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
8420950690 GasketGasket
-
9420440472 Screw M8 X 45Screw M8 X 45
-
10420944038 WasherWasher
-
11420660190 Rubber SleeveRubber Sleeve
-
12420950792 Rubber GasketRubber Gasket
-
13420888901 Throttle Body Ass'YThrottle Body Ass'Y
-
14270000251 Position SensorPosition Sensor
-
15208641660 Screw Phillips M4 X 16Screw Phillips M4 X 16
-
16234042600 Flat Washer 4 mmFlat Washer 4 mm
-
17420963055 Idle Bypass ValveIdle Bypass Valve
-
18420631780 O-RingO-Ring
-
19420440911 Binding Head Screw M5 X 16Binding Head Screw M5 X 16
-
20420845710 Snap RingSnap Ring
-
21420440307 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
22420874562 Fuel HoseFuel Hose
-
23420851458 ClampClamp
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25293550030 Grease, Super LubeGrease, Super Lube
