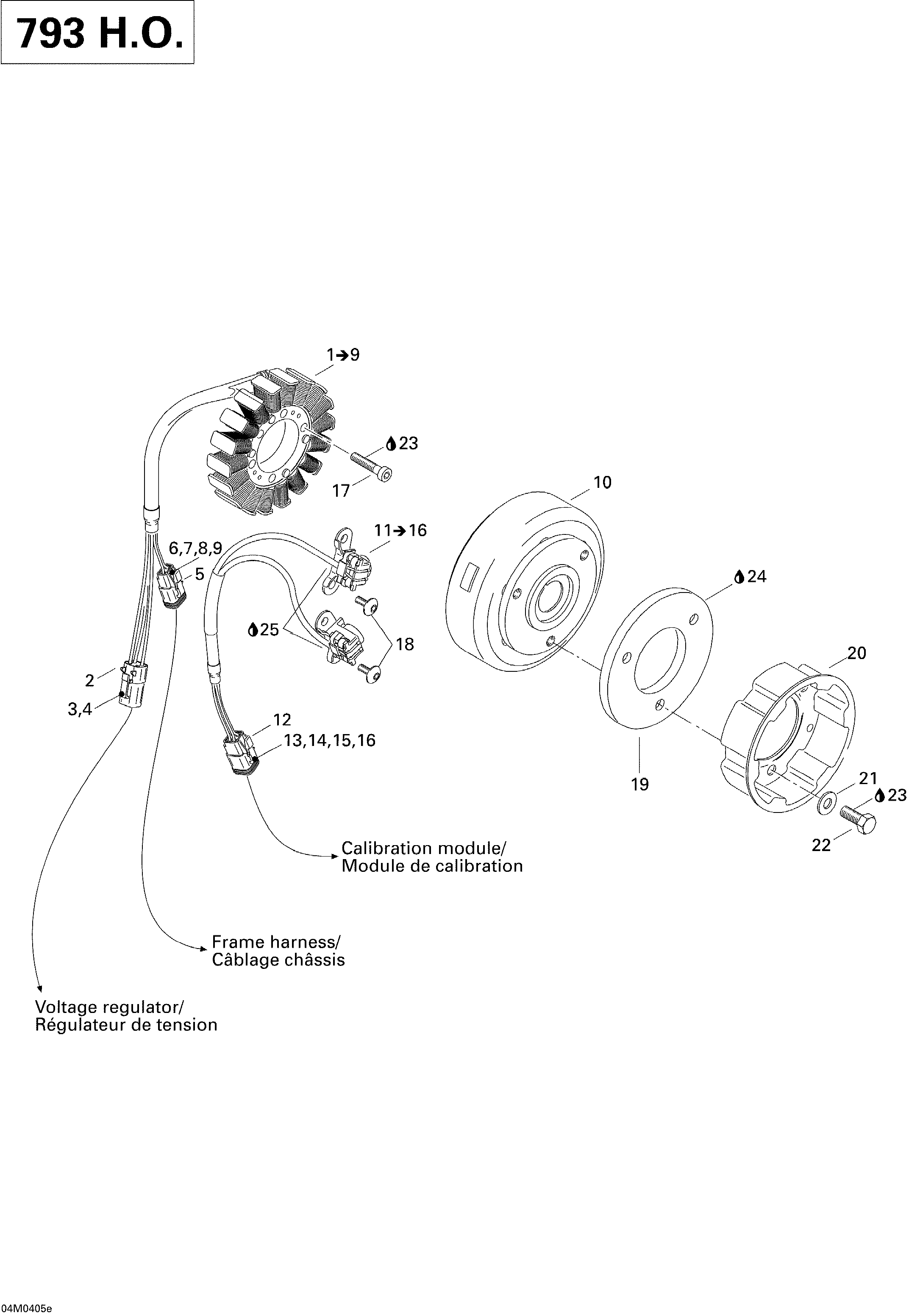

03- Magneto (12V, 360W) (793 HO) для BRP Ski-Doo MX Z 800 HO Adrenaline/X - 2004
-
№АртикулНазвание
-
1410922965 Stator Plate. Includes items 1 to 9Stator Plate. Includes items 1 to 9
-
2278001473 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
3515175568 Male TerminalMale Terminal
-
4278001474 Female Lock (4 Circuits)Female Lock (4 Circuits)
-
5515175670 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
6278000632 Female TerminalFemale Terminal
-
7278001661 Female TerminalFemale Terminal
-
8515175675 Female Lock (2 Circuits)Female Lock (2 Circuits)
-
9293000052 PlugPlug
-
10410922966 Flywheel. Includes items 10 to 16Flywheel. Includes items 10 to 16
-
11410922948 Pickup Ass'YPickup Ass'Y
-
12515175672 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
13278000632 Female TerminalFemale Terminal
-
14278000661 Female TerminalFemale Terminal
-
15515175677 Female Lock (2 Circuits)Female Lock (2 Circuits)
-
16293000052 PlugPlug
-
17205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
18420640321 Taptite ScrewTaptite Screw
-
19420866756 FlywheelFlywheel
-
20420852532 Starting PulleyStarting Pulley
-
21420827405 Flat Washer 8,1 X 18 X 2Flat Washer 8,1 X 18 X 2
-
22207182044 Hex Screw M8 X 20Hex Screw M8 X 20
-
23293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
24413711400 Loctite 648, 10 mlLoctite 648, 10 ml
