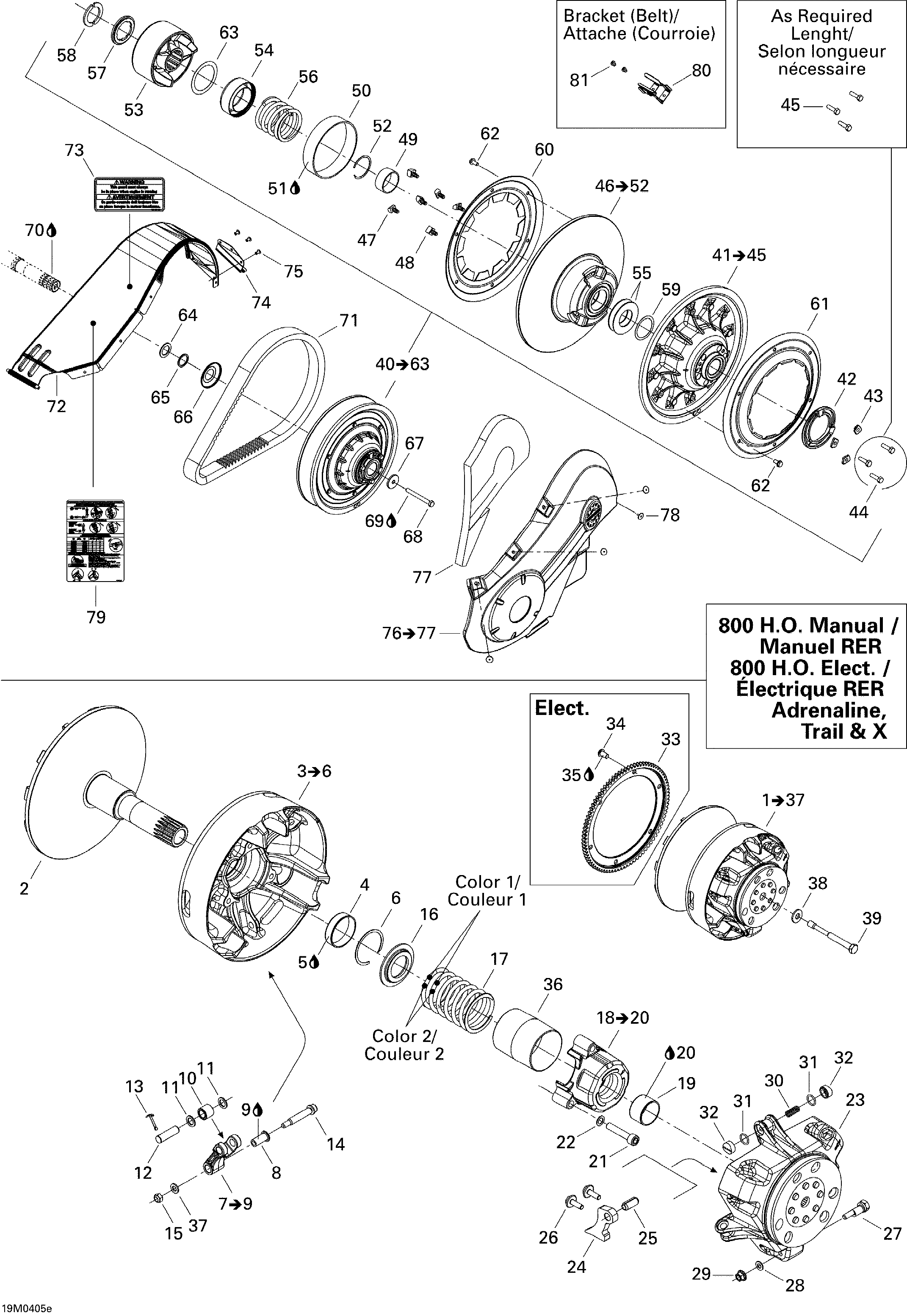

05- Pulley System 800 HO Rer для BRP Ski-Doo MX Z 800 HO Adrenaline/X - 2004
-
№АртикулНазвание
-
2417222167 Fixed FlangeFixed Flange
-
3417222171 Sliding Flange Ass'Y. Includes items 3 to 6Sliding Flange Ass'Y. Includes items 3 to 6
-
4417006900 BushingBushing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass'Y. Includes items 7 to 9Lever Ass'Y. Includes items 7 to 9
-
8417222633 BushingBushing
-
9413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
10417003900 Roller Ass'YRoller Ass'Y
-
11417004302 Stopper WasherStopper Washer
-
12417222594 PinPin
-
13732958001 Cotter PinCotter Pin
-
14417222028 Screw Ass'YScrew Ass'Y
-
15232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
16417222312 Spring SeatSpring Seat
-
17415015400 Spring (violet / green)Spring (violet / green)
-
18417007500 Spring Cover Ass'Y. Includes items 18 to 20Spring Cover Ass'Y. Includes items 18 to 20
-
19417009204 BushingBushing
-
20413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
21205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
22250200009 Lock Washer 8 mmLock Washer 8 mm
-
23417222213 Governor CupGovernor Cup
-
24417222546 Ramp 414Ramp 414
-
25250400009 Rolled Pin M10 X 22Rolled Pin M10 X 22
-
26250000059 Hex Flanged Screw M6 X 18Hex Flanged Screw M6 X 18
-
27417005500 Calibration ScrewCalibration Screw
-
28417005600 WasherWasher
-
29233061414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
30417005700 SpringSpring
-
31732401030 O-RingO-Ring
-
32417222362 Slider ShoeSlider Shoe
-
33417222321 Ring Gear. Electric startingRing Gear. Electric starting
-
34250000049 Hex Torx Screw M8 X 14.5. Electric startingHex Torx Screw M8 X 14.5. Electric starting
-
35293800005 Loctite 271, 10 ml. Electric startingLoctite 271, 10 ml. Electric starting
-
36417009205 Guard. Electric startingGuard. Electric starting
-
417009205 Guard. Manual startingGuard. Manual starting
-
37234061410 Flat WasherFlat Washer
-
38250200006 Conical Spring Washer 14 mm. Electric startingConical Spring Washer 14 mm. Electric starting
-
39417120000 Drive Pulley BoltDrive Pulley Bolt
-
41417126603 Fixed Flange Ass'Y. Includes items 41 to 45Fixed Flange Ass'Y. Includes items 41 to 45
-
42415005800 Adjustment RingAdjustment Ring
-
43415005900 Adjustment ShimAdjustment Shim
-
44207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
45207162244 Hex Screw M6 X 22Hex Screw M6 X 22
-
46417126851 Sliding Flange Ass'Y. Includes items 46 to 52Sliding Flange Ass'Y. Includes items 46 to 52
-
47417126373 Rear Cam Shoe SliderRear Cam Shoe Slider
-
48417126374 Front Cam Shoe SliderFront Cam Shoe Slider
-
49414978200 BushingBushing
-
50414978100 BushingBushing
-
51413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
52371911200 CirclipCirclip
-
53417126721 Cam Ass'YCam Ass'Y
-
54417126381 GuardGuard
-
55504099600 Thrust WasherThrust Washer
-
56417126688 Spring (Green)Spring (Green)
-
57417126733 SpacerSpacer
-
58417126734 Half KeyHalf Key
-
59504112300 ShimShim
-
60417126698 CoverCover
-
61504151831 Aerodynamic CoverAerodynamic Cover
-
62210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
63417126322 Swivel AbutmentSwivel Abutment
-
64417300231 SpacerSpacer
-
65504112000 ShimShim
-
66417300238 ProtectorProtector
-
67517302322 WasherWasher
-
68207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
69293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
70293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
71417300166 Drive BeltDrive Belt
-
72417300213 Belt GuardBelt Guard
-
73516001190 Warning LabelWarning Label
-
74417300216 Belt Guard BracketBelt Guard Bracket
-
75390402200 Rivet 3/16''Rivet 3/16''
-
76417300248 Side Protector Ass'Y. Includes items 76 to 77Side Protector Ass'Y. Includes items 76 to 77
-
77417300246 FoamFoam
-
78293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
79516001639 Suspension Adjustment DecalSuspension Adjustment Decal
-
80517281905 BracketBracket
-
81390402200 Rivet 3/16''Rivet 3/16''
