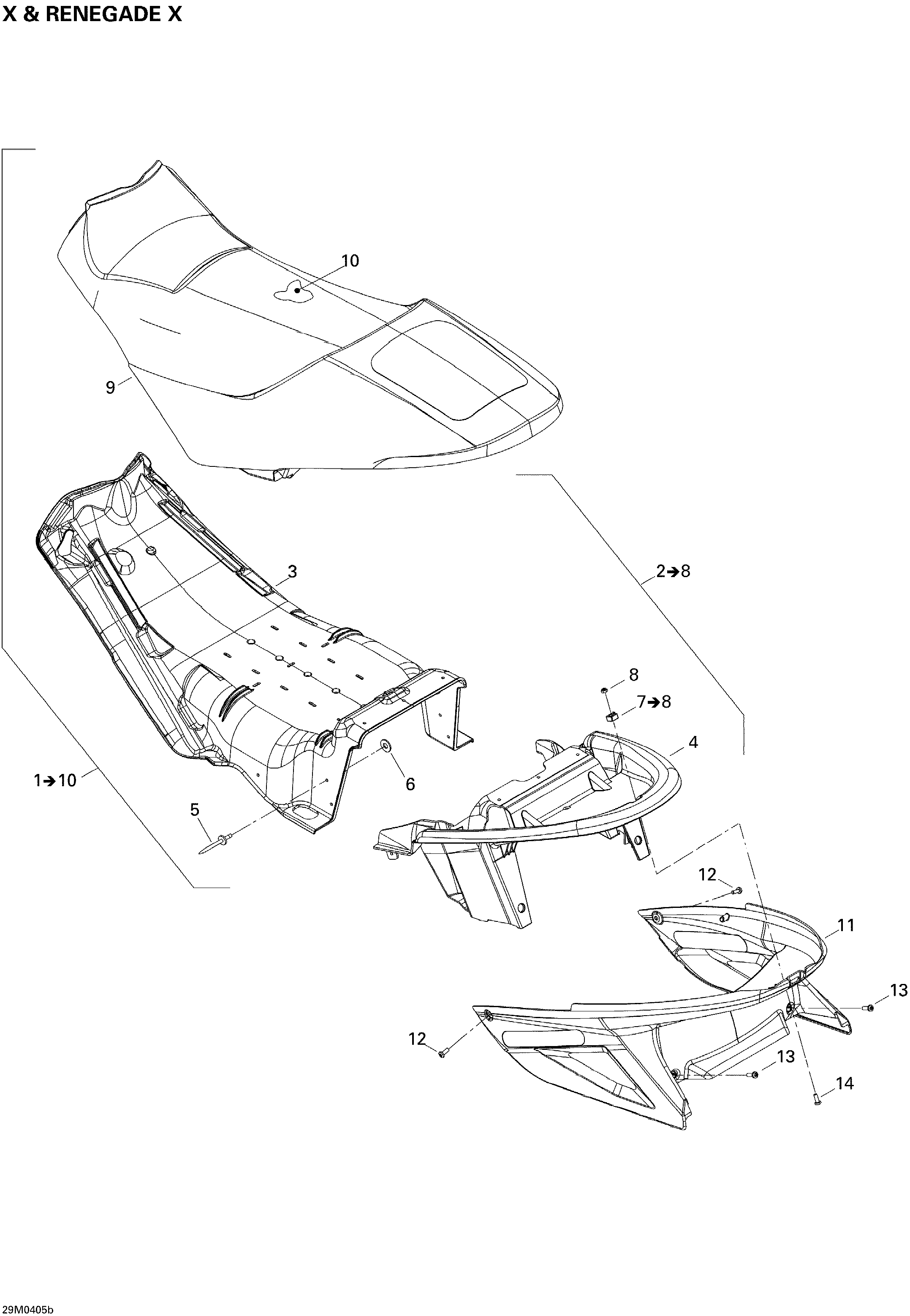

09- Seat (X & Renegade X) для BRP Ski-Doo MX Z 800 HO Adrenaline/X - 2004
-
№АртикулНазвание
-
2510004214 Seat Base Ass'Y. Includes items 2 to 8Seat Base Ass'Y. Includes items 2 to 8
-
3510004217 Seat BaseSeat Base
-
4510004218 Seat BaseSeat Base
-
5390409600 Pop Rivet 3/16''Pop Rivet 3/16''
-
6517225900 Flat WasherFlat Washer
-
7269500252 Nut Housing. Includes items 7 to 8Nut Housing. Includes items 7 to 8
-
8232061600 Elastic Stop Nut M6Elastic Stop Nut M6
-
9510004246 Seat Cover. Blue (B-225) & Black (B-190)Seat Cover. Blue (B-225) & Black (B-190)
-
510004247 Seat Cover. Black (B-160) & Yellow (B-190)Seat Cover. Black (B-160) & Yellow (B-190)
-
510004248 Seat Cover. Black (B-160) & Black (B-160)Seat Cover. Black (B-160) & Black (B-160)
-
10510004216 Seat FoamSeat Foam
-
11510004230 Trunk (Black (B-160)). Black (B-160) & Black (B-160)Trunk (Black (B-160)). Black (B-160) & Black (B-160)
-
510004278 Trunk (Yellow (B-190)). Blue (B-225) & Black (B-190)Trunk (Yellow (B-190)). Blue (B-225) & Black (B-190)
-
510004278 Trunk (Yellow (B-190)). Black (B-160) & Yellow (B-190)Trunk (Yellow (B-190)). Black (B-160) & Yellow (B-190)
-
12250000129 Torx Pan Head Screw M6 X 16Torx Pan Head Screw M6 X 16
-
13250000128 Torx Pan Head Screw M6 X 20. XTorx Pan Head Screw M6 X 20. X
-
250000174 Torx Pan Head Screw M6 X 30. Renegade XTorx Pan Head Screw M6 X 30. Renegade X
-
14250000129 Torx Pan Head Screw M6 X 16Torx Pan Head Screw M6 X 16
