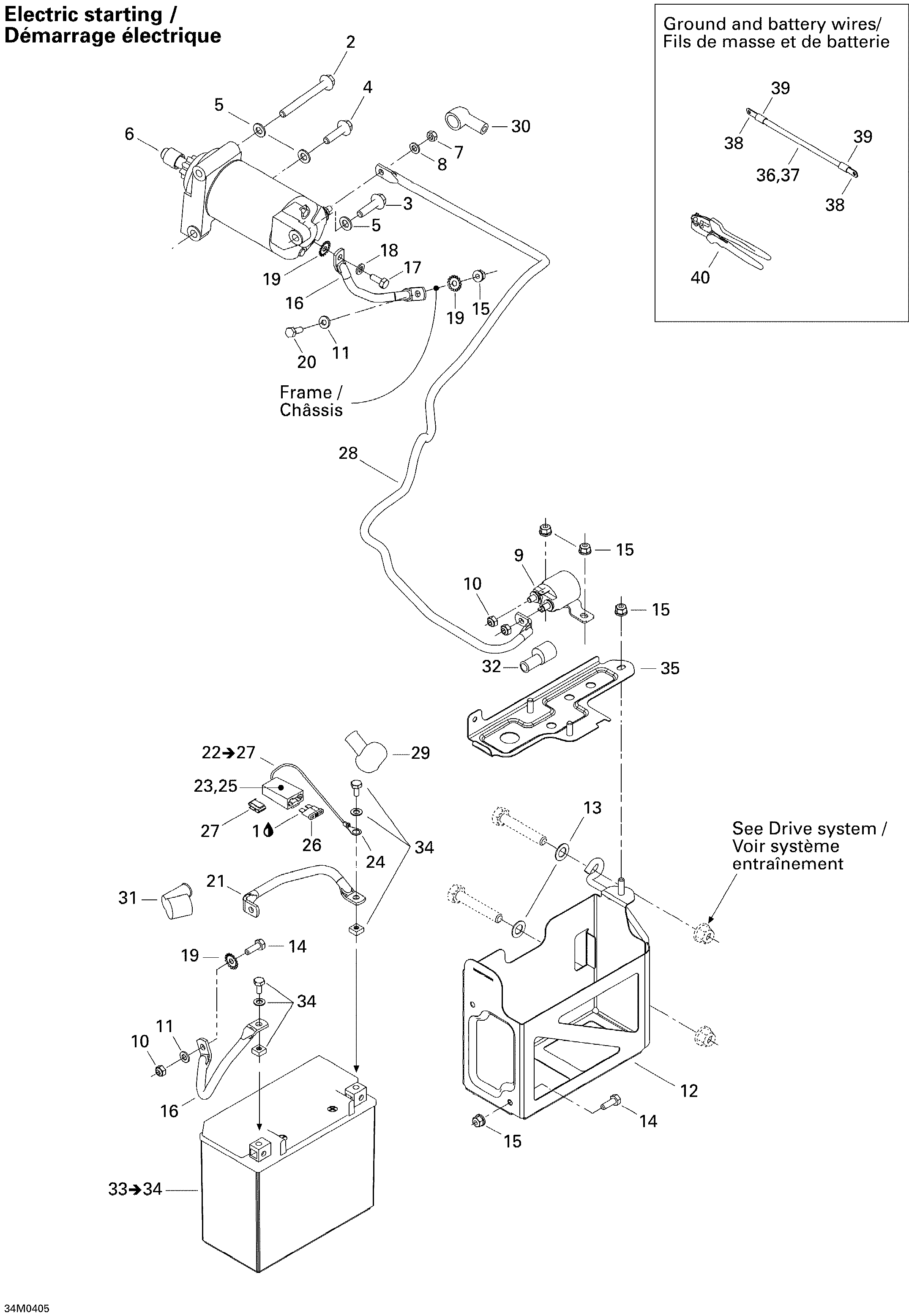

10- Battery And Accessories для BRP Ski-Doo MX Z 800 HO Adrenaline/X - 2004
-
№АртикулНазвание
-
1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
2207587544 Hex Flanged Screw (Scotch Grip) M8 X 75. Electric startingHex Flanged Screw (Scotch Grip) M8 X 75. Electric starting
-
3207583044 Hex Flanged Screw M8 X 30 (Scotch Grip). Electric startingHex Flanged Screw M8 X 30 (Scotch Grip). Electric starting
-
4207583044 Hex Flanged Screw M8 X 30 (Scotch Grip). Electric startingHex Flanged Screw M8 X 30 (Scotch Grip). Electric starting
-
5250200008 Flat Washer 8 mm. Electric startingFlat Washer 8 mm. Electric starting
-
6515176003 Starter Ass'Y. Electric startingStarter Ass'Y. Electric starting
-
7232561414 Elastic Stop Nut M6. Electric startingElastic Stop Nut M6. Electric starting
-
8234061410 Flat Washer. Electric startingFlat Washer. Electric starting
-
9515176011 Starter Relay. Electric startingStarter Relay. Electric starting
-
10232561414 Elastic Stop Nut M6. Electric startingElastic Stop Nut M6. Electric starting
-
11234061410 Flat Washer. Electric startingFlat Washer. Electric starting
-
12515176017 Battery Support (Black). Electric startingBattery Support (Black). Electric starting
-
13503175800 Washer. Electric startingWasher. Electric starting
-
14207161844 Hex Screw M6 X 18. Electric startingHex Screw M6 X 18. Electric starting
-
15233261414 Elastic Flanged Nut M6. Electric startingElastic Flanged Nut M6. Electric starting
-
17207361644 Hex Screw (Scotch Grip) M6 X 16. Electric startingHex Screw (Scotch Grip) M6 X 16. Electric starting
-
18234061410 Flat Washer. Electric startingFlat Washer. Electric starting
-
19250200041 Tuflock Phillips Screw. Electric startingTuflock Phillips Screw. Electric starting
-
20207162044 Hex Screw M6 X 20. Electric startingHex Screw M6 X 20. Electric starting
-
22515175489 Battery Fuse Wire. Includes items 22 to 27 / Electric startingBattery Fuse Wire. Includes items 22 to 27 / Electric starting
-
23409004200 Female TerminalFemale Terminal
-
24278000992 Ring TerminalRing Terminal
-
25409004000 Fuse HolderFuse Holder
-
26410917200 Fuse (30 Amperes)Fuse (30 Amperes)
-
27409014200 ClipClip
-
29570151000 Protection Cap. Electric startingProtection Cap. Electric starting
-
30278001771 Cap. Electric startingCap. Electric starting
-
31570064200 Protection Cap. Electric startingProtection Cap. Electric starting
-
32515175919 Protector Cap. Electric startingProtector Cap. Electric starting
-
33410301203 Battery 18 Amperes. Electric startingBattery 18 Amperes. Electric starting
-
34295500849 Battery Fastener KitBattery Fastener Kit
-
35515175735 Battery Strip. Electric startingBattery Strip. Electric starting
-
36278001680 Ground Cable Battery (No. 6) (Meter)Ground Cable Battery (No. 6) (Meter)
-
37278001690 Red Cable Battery (No. 6) (Meter)Red Cable Battery (No. 6) (Meter)
-
38278001682 Flat Terminal (Small Hole)Flat Terminal (Small Hole)
-
278001683 Terminal 45° (Small Hole)Terminal 45° (Small Hole)
-
278001684 Terminal 90° (Small Hole)Terminal 90° (Small Hole)
-
278001685 Flat Terminal (Big Hole)Flat Terminal (Big Hole)
-
278001686 Terminal 45° (Big Hole)Terminal 45° (Big Hole)
-
278001687 Terminal 90° (Big Hole)Terminal 90° (Big Hole)
-
278001688 Flat TerminalFlat Terminal
-
278001776 Terminal 30° (2 Holes)Terminal 30° (2 Holes)
-
39278001692 Heat ShrinkHeat Shrink
-
40529035730 Crimp PlierCrimp Plier
