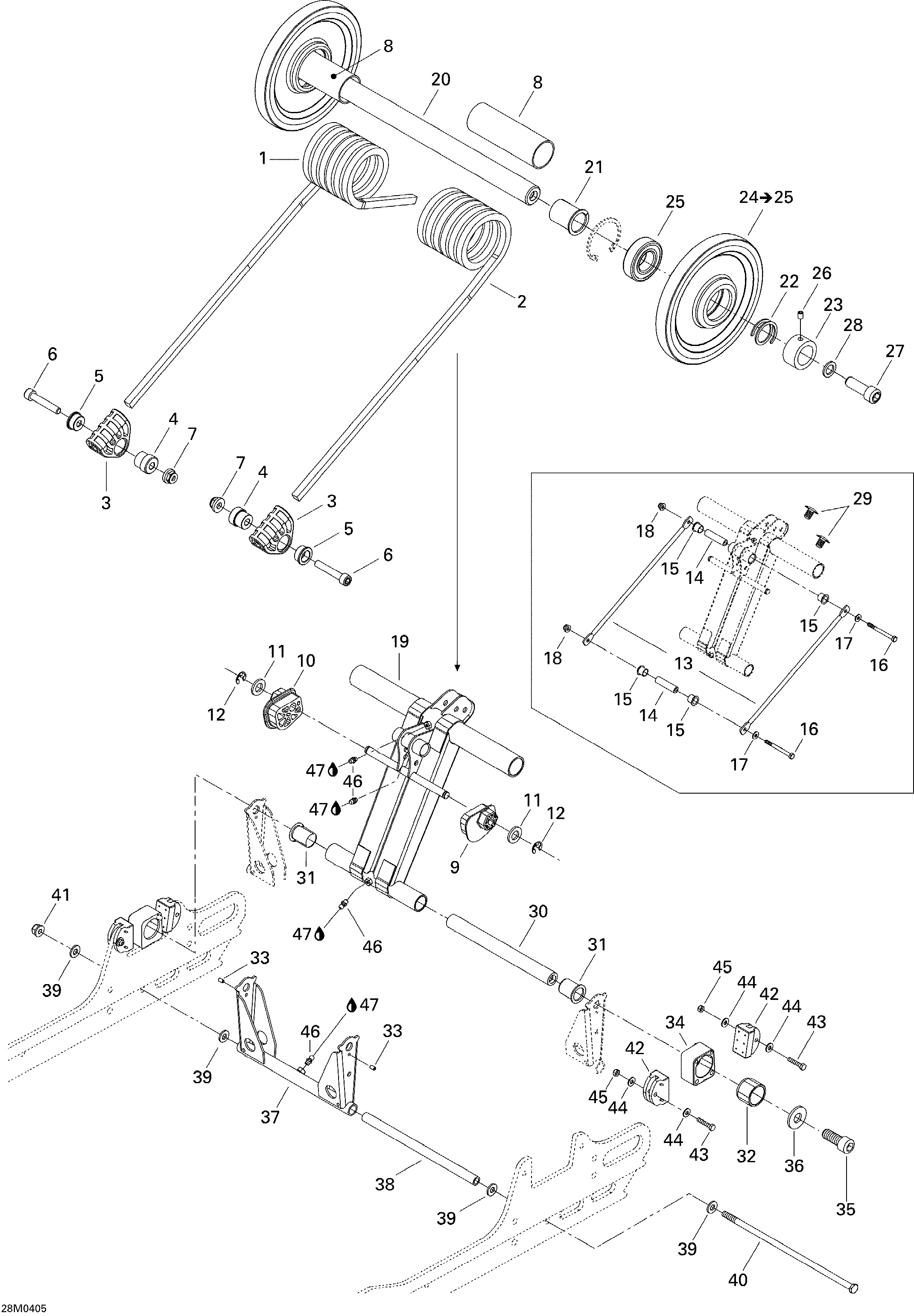

08- Rear Arm для BRP Ski-Doo MX Z 800 HO Adrenaline/X - 2004
-
№АртикулНазвание
-
1503189902 RH Spring. Trail EuropeRH Spring. Trail Europe
-
503189902 RH Spring. AdrenalineRH Spring. Adrenaline
-
503190334 RH Spring (Square). TrailRH Spring (Square). Trail
-
503190492 RH Spring (Square). X EuropeRH Spring (Square). X Europe
-
503190492 RH Spring (Square). XRH Spring (Square). X
-
503190492 RH Spring (Square). Renegade & Renegade XRH Spring (Square). Renegade & Renegade X
-
2503189904 LH Spring. AdrenalineLH Spring. Adrenaline
-
503189904 LH Spring. Trail EuropeLH Spring. Trail Europe
-
503190335 LH Spring (Square). TrailLH Spring (Square). Trail
-
503190494 LH Spring (Square). XLH Spring (Square). X
-
503190494 LH Spring (Square). X EuropeLH Spring (Square). X Europe
-
503190494 LH Spring (Square). Renegade & Renegade XLH Spring (Square). Renegade & Renegade X
-
3503189657 Spring SupportSpring Support
-
4503188934 Spring Axle GuideSpring Axle Guide
-
5503188929 Cushion RetainerCushion Retainer
-
6205084544 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
7233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
8503189105 Plastic BushingPlastic Bushing
-
9503190023 LH Spring CamLH Spring Cam
-
10503190022 RH Spring CamRH Spring Cam
-
11234021410 Flat Washer 12 mmFlat Washer 12 mm
-
12293370013 CirclipCirclip
-
13503189726 Throttle Rod. Adrenaline, Trail & XThrottle Rod. Adrenaline, Trail & X
-
503190111 Tie Rod. Renegade & Renegade XTie Rod. Renegade & Renegade X
-
14503189815 Axle BarAxle Bar
-
15506150200 Swivel-BushingSwivel-Bushing
-
16207088544 Hex Screw M8 X 85. Adrenaline, Trail & XHex Screw M8 X 85. Adrenaline, Trail & X
-
207089044 Hex Screw M8 X 90. Renegade & Renegade XHex Screw M8 X 90. Renegade & Renegade X
-
17224081201 Flat WasherFlat Washer
-
18233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
19503190110 Rear ArmRear Arm
-
20503189412 Upper AxleUpper Axle
-
21503189288 CushionCushion
-
22503189146 Axle SpringAxle Spring
-
23503189147 Retainer RingRetainer Ring
-
24503190269 Wheel 165 Ass'Y. Includes items 24 to 25Wheel 165 Ass'Y. Includes items 24 to 25
-
25503189567 Ball Bearing 6205Ball Bearing 6205
-
26206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
27205523544 Socket Head Screw M12 X 35 (Scotch Grip)Socket Head Screw M12 X 35 (Scotch Grip)
-
28503189276 WasherWasher
-
29414644300 DartDart
-
30503189413 Rear Lower AxleRear Lower Axle
-
31503189286 CushionCushion
-
32503189488 Block GuideBlock Guide
-
33250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
34503189152 LH BlockLH Block
-
503189170 RH BlockRH Block
-
35205523544 Socket Head Screw M12 X 35 (Scotch Grip)Socket Head Screw M12 X 35 (Scotch Grip)
-
36503189276 WasherWasher
-
37503189819 Pivot ArmPivot Arm
-
38503189156 Pivot Arm AxlePivot Arm Axle
-
39503189157 WasherWasher
-
40732601198 Bolt M8 (Long)Bolt M8 (Long)
-
41233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
42503189608 Rubber StopperRubber Stopper
-
43207053044 Hex Screw M5 X 30Hex Screw M5 X 30
-
44250200016 Flat Washer 5 mmFlat Washer 5 mm
-
45232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
46408200700 Grease FittingGrease Fitting
-
47219700417 Synthetic Grease, 400gSynthetic Grease, 400g
