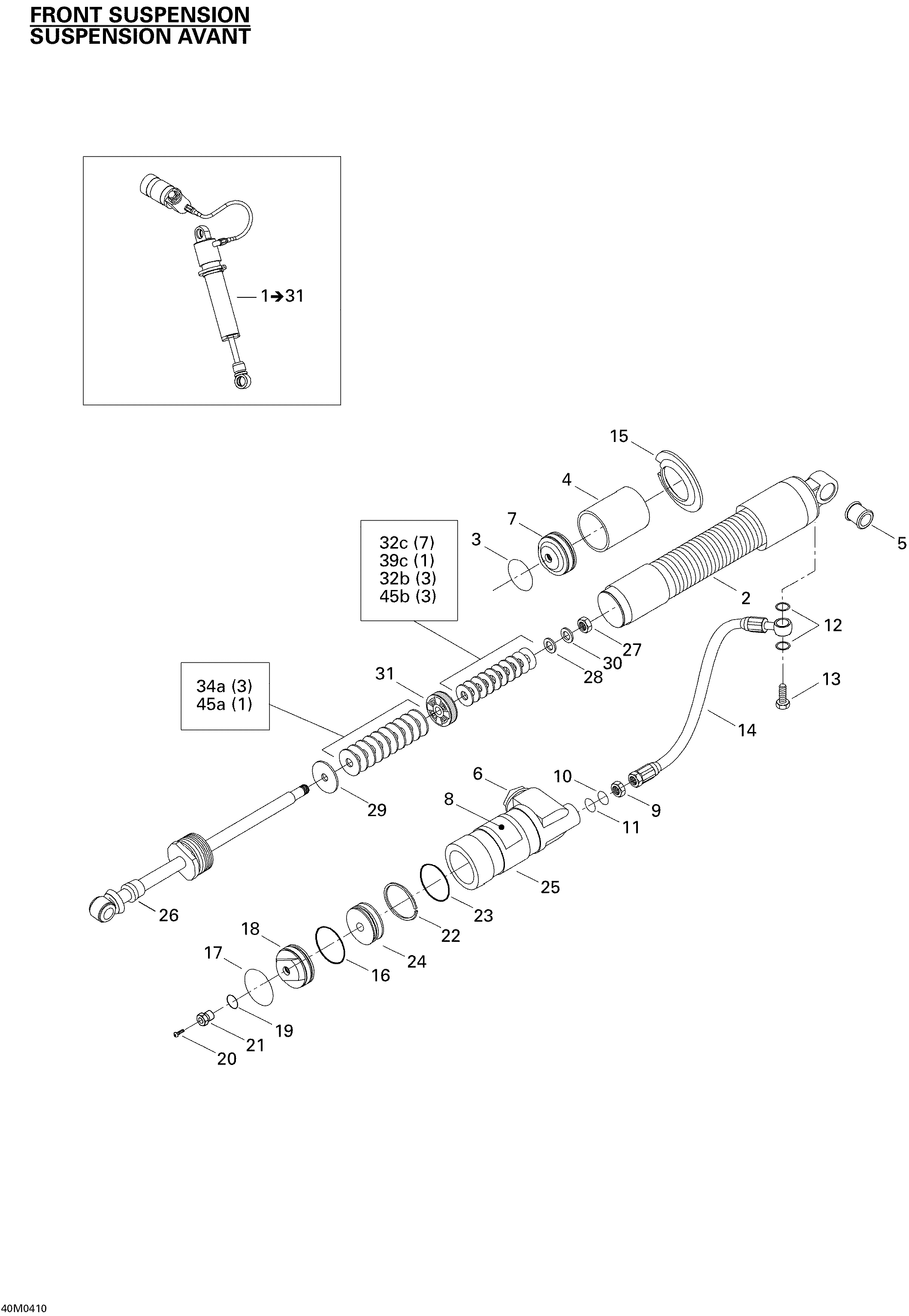

07- Front Take Apart Shocks для BRP Ski-Doo MX Z X 440 Racing - 2004
-
№АртикулНазвание
-
1505070952 RH Front Shock. INCLUDES 1 TO 31RH Front Shock. INCLUDES 1 TO 31
-
505070953 LH Front ShockLH Front Shock
-
12415038700 O-RingO-Ring
-
13415093810 BoltBolt
-
14415128591 Hose Ass'YHose Ass'Y
-
15415128598 Spring CollarSpring Collar
-
16415093804 O-RingO-Ring
-
19505070400 O-RingO-Ring
-
20505070399 ScrewScrew
-
21505070398 Air Valve RingAir Valve Ring
-
22415093806 Piston RingPiston Ring
-
23415093807 O-RingO-Ring
-
25415128592 ReservoirReservoir
-
31415128848 Piston (2 X 0,3-1) (C36)Piston (2 X 0,3-1) (C36)
-
32a415039100 Leaf Valve O30 X 0,254 (C36)Leaf Valve O30 X 0,254 (C36)
-
32b414888318 Leaf Valve O30 X 0,203 (C36)Leaf Valve O30 X 0,203 (C36)
-
32c414888319 Leaf Valve O30 X 0.152Leaf Valve O30 X 0.152
-
33b414888320 Leaf Valve O28 X 0.203Leaf Valve O28 X 0.203
-
33c414888321 Leaf Valve O28 X 0.152Leaf Valve O28 X 0.152
-
34a415039000 Leaf Valve O26 X 0.254Leaf Valve O26 X 0.254
-
34b414888322 Leaf Valve O26 X 0.203Leaf Valve O26 X 0.203
-
34c414888323 Leaf Valve O26 X 0.152Leaf Valve O26 X 0.152
-
36b414888324 Leaf Valve O22 X 0.203Leaf Valve O22 X 0.203
-
36c414888325 Leaf Valve O22 X 0.152Leaf Valve O22 X 0.152
-
37D414888340 Leaf Valve O21 X 0.114Leaf Valve O21 X 0.114
-
38b414888326 Leaf Valve O20 X 0.203Leaf Valve O20 X 0.203
-
38c414888327 Leaf Valve O20 X 0.152Leaf Valve O20 X 0.152
-
38d414888328 Leaf Valve O20 X 0.114Leaf Valve O20 X 0.114
-
40b414888329 Leaf Valve O18 X 0.203Leaf Valve O18 X 0.203
-
40c414888330 Leaf Valve O18 X 0.152Leaf Valve O18 X 0.152
-
42a414888331 Leaf Valve O16 X 0.254Leaf Valve O16 X 0.254
-
42b414888332 Leaf Valve O16 X 0.203Leaf Valve O16 X 0.203
-
42c414888333 Leaf Valve O16 X 0.152Leaf Valve O16 X 0.152
-
42d415038900 Leaf Valve O16 X 0.114Leaf Valve O16 X 0.114
-
43a414888334 Leaf Valve O15 X 0.254Leaf Valve O15 X 0.254
-
43b414888335 Leaf Valve O15 X 0.203Leaf Valve O15 X 0.203
-
43c414888336 Leaf Valve O15 X 0.152Leaf Valve O15 X 0.152
-
43d414888337 Leaf Valve O15 X 0.114Leaf Valve O15 X 0.114
-
46a503189538 Leaf Valve O12 X 0.254Leaf Valve O12 X 0.254
-
46b414888338 Leaf Valve O12 X 0.203Leaf Valve O12 X 0.203
-
46c414888339 Leaf Valve O12 X 0.152Leaf Valve O12 X 0.152
-
46d415038800 Leaf Valve O12 X 0.114Leaf Valve O12 X 0.114
