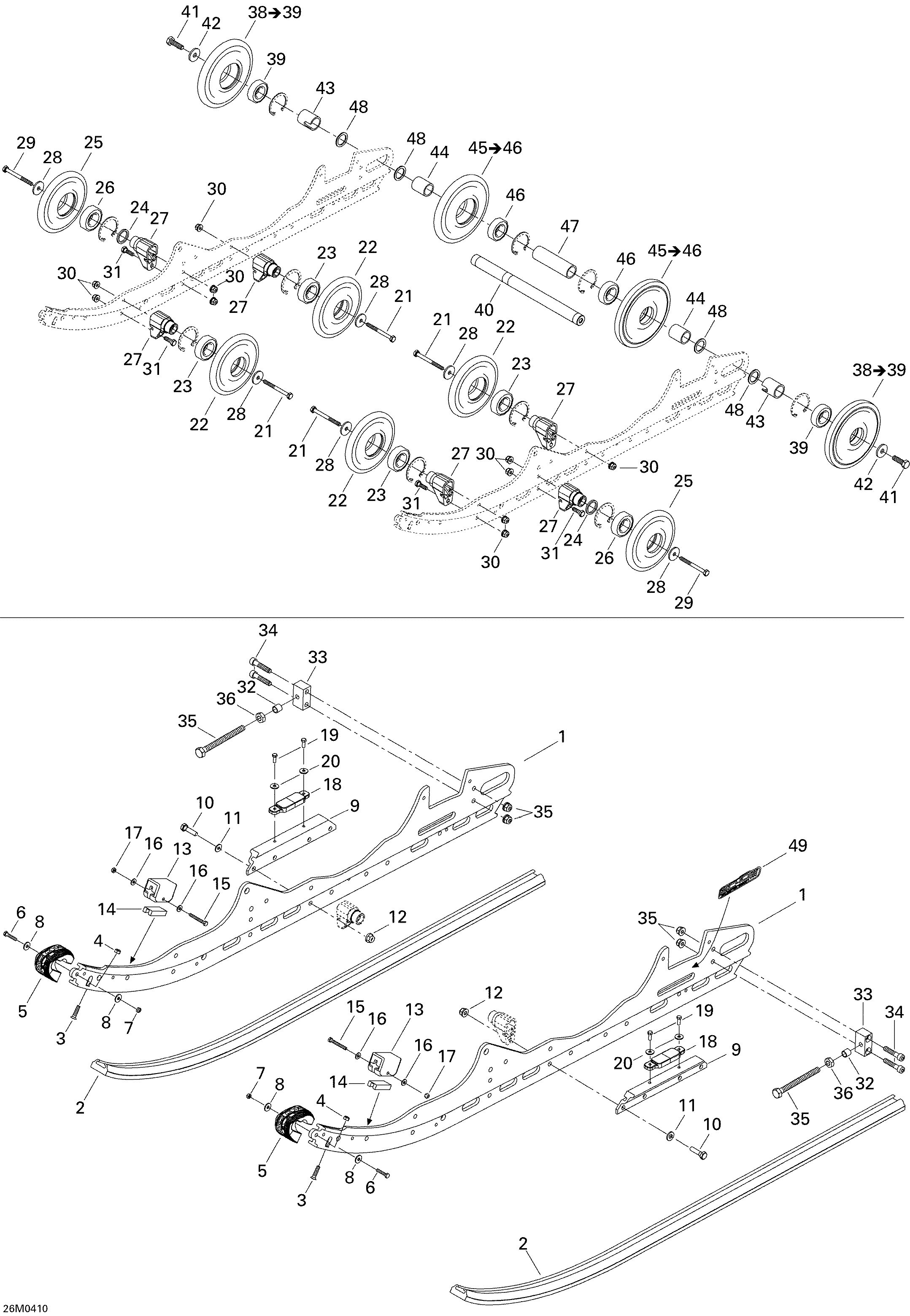

08- Rear Suspension для BRP Ski-Doo MX Z X 440 Racing - 2004
-
№АртикулНазвание
-
1503190440 RunnerRunner
-
2503190443 Shoe (Black)Shoe (Black)
-
3208562560 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 Runner ProtectorRunner Protector
-
6207152544 Hex Screw M5 X 25Hex Screw M5 X 25
-
7232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
8391301600 WasherWasher
-
9503190261 Reinforcement RailReinforcement Rail
-
10207183044 Hex Screw M8 X 30Hex Screw M8 X 30
-
11503189157 WasherWasher
-
12233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
13570063000 Rubber StopperRubber Stopper
-
14572084800 Stopper ReinforcementStopper Reinforcement
-
15207054044 Hex Screw M5 X 40Hex Screw M5 X 40
-
16391301700 WasherWasher
-
17232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
18503190263 Rail StopperRail Stopper
-
19207351444 Hex Screw M5 X 14 (Scotch Grip)Hex Screw M5 X 14 (Scotch Grip)
-
20391301600 WasherWasher
-
21207088544 Hex Screw M8 X 85Hex Screw M8 X 85
-
22503190229 Wheel 135Wheel 135
-
23503189567 Ball Bearing 6205Ball Bearing 6205
-
24503173700 WasherWasher
-
25503190229 Wheel 135Wheel 135
-
26503189567 Ball Bearing 6205Ball Bearing 6205
-
27503190389 SupportSupport
-
28503183100 WasherWasher
-
29207088544 Hex Screw M8 X 85Hex Screw M8 X 85
-
30233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
31207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
32503168500 SpacerSpacer
-
33503189211 TensionerTensioner
-
34205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
35233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
36230100044 Hex Screw M10 X 100Hex Screw M10 X 100
-
37232006414 Hex Nut M10Hex Nut M10
-
38503189568 Wheel 165 Ass'Y. INCLUDES 38 TO 39Wheel 165 Ass'Y. INCLUDES 38 TO 39
-
39503189567 Ball Bearing 6205Ball Bearing 6205
-
40503167900 Rear AxleRear Axle
-
41250000019 Hex Screw With NylonHex Screw With Nylon
-
42503183300 WasherWasher
-
43503189809 Outer SpacerOuter Spacer
-
44503182900 Inner Spacer (Short)Inner Spacer (Short)
-
45503189579 Wheel 165. INCLUDES 45 TO 46Wheel 165. INCLUDES 45 TO 46
-
46503189567 Ball Bearing 6205Ball Bearing 6205
-
47503156000 Center SpacerCenter Spacer
-
48503180400 WasherWasher
-
49516001248 Suspension DecalSuspension Decal
