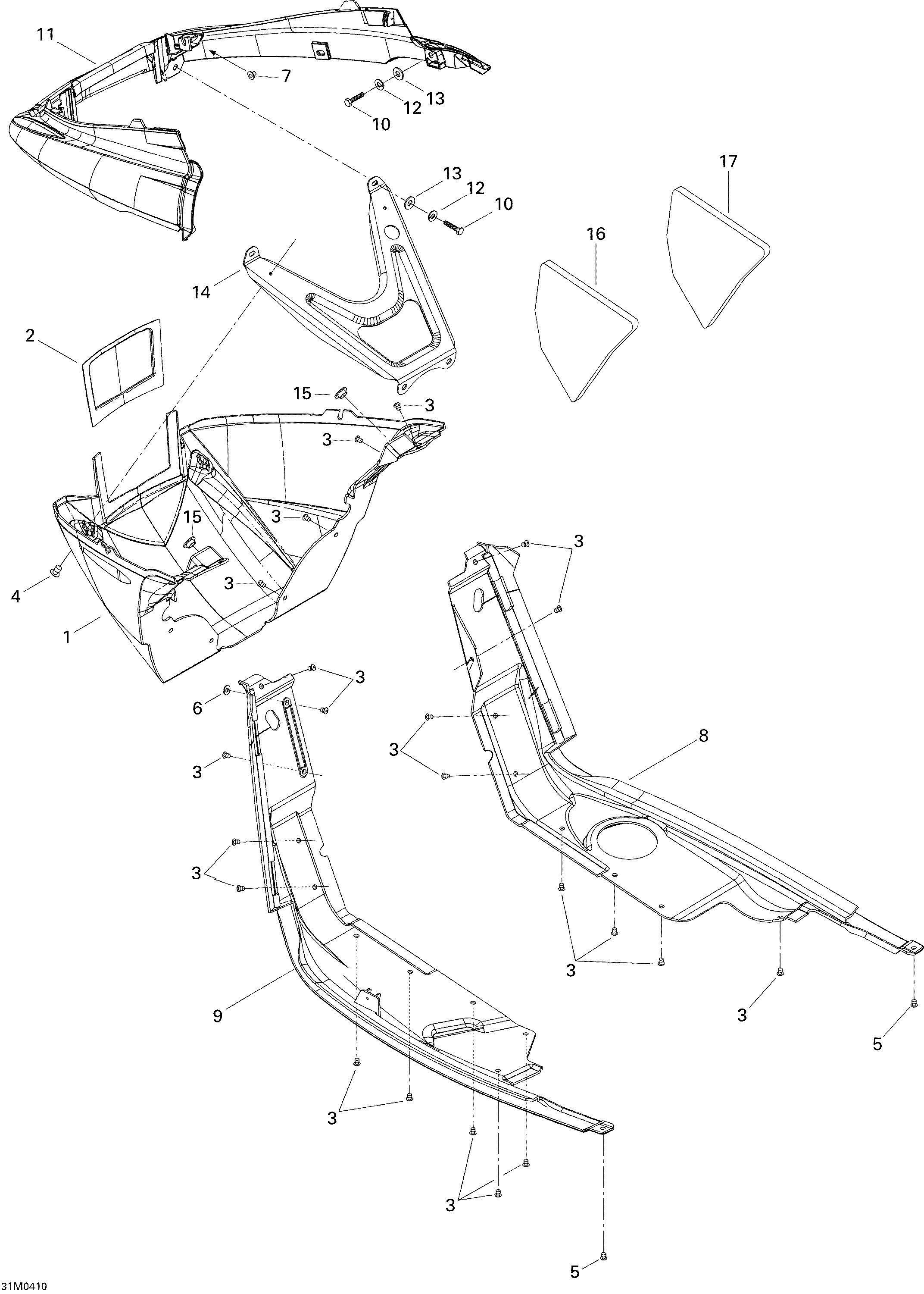

09- Bottom Pan для BRP Ski-Doo MX Z X 440 Racing - 2004
-
№АртикулНазвание
-
1502006733 Front Bottom PanFront Bottom Pan
-
2502006706 Bottom Pan PlateBottom Pan Plate
-
3293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
4293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
5293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
6517124300 WasherWasher
-
7293100003 Nut M6Nut M6
-
8502006729 RH Bottom PanRH Bottom Pan
-
9502006730 LH Bottom PanLH Bottom Pan
-
10207161444 Hex Screw M6 X 14Hex Screw M6 X 14
-
11502006680 Bumper (Yellow (B-190))Bumper (Yellow (B-190))
-
12234161471 Lock Washer 6 mmLock Washer 6 mm
-
13224061121 Flat WasherFlat Washer
-
14502006682 SupportSupport
-
15414916600 Nylon CapNylon Cap
-
16502006722 LH FoamLH Foam
-
17502006721 RH FoamRH Foam
