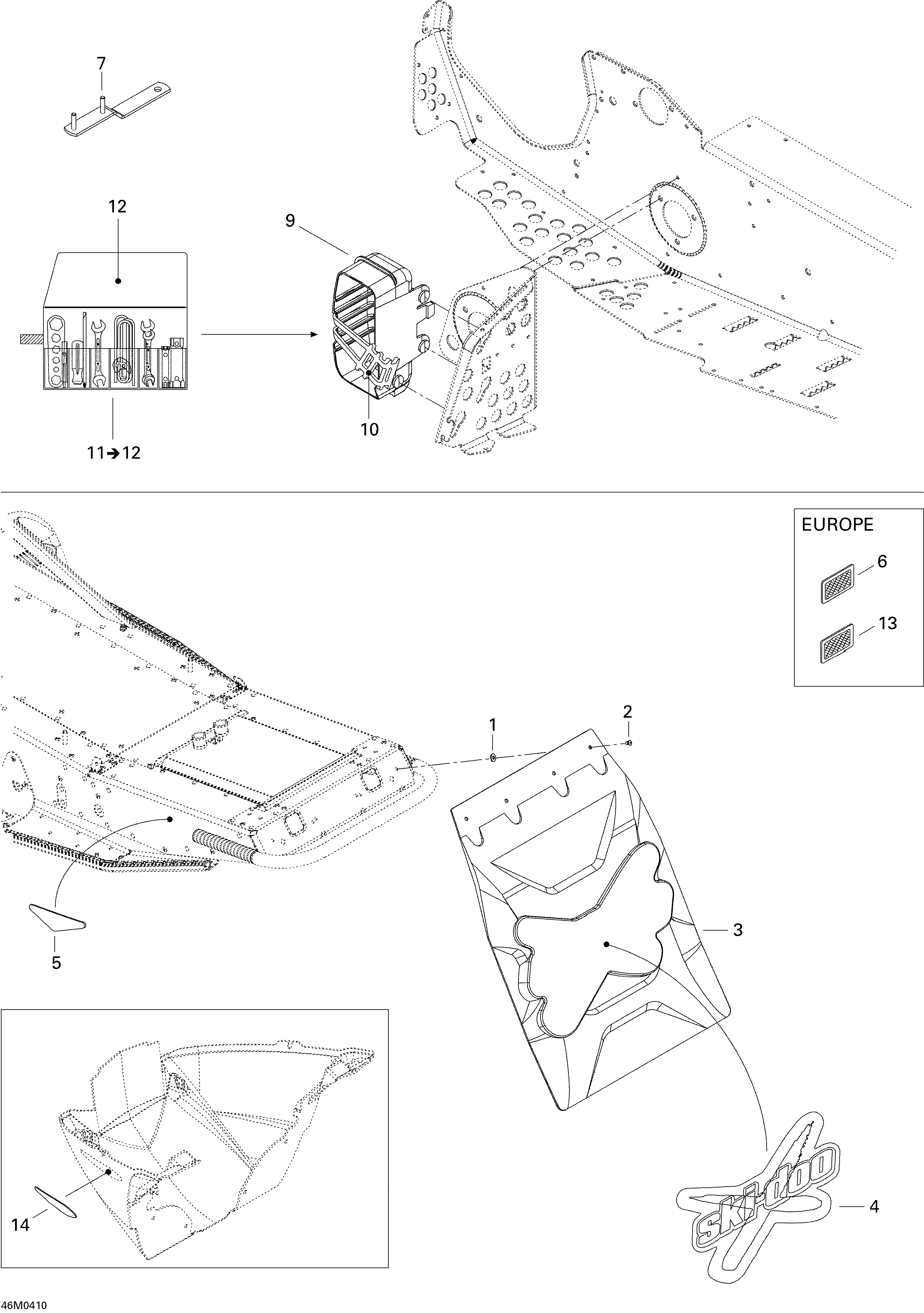

09- Utilities для BRP Ski-Doo MX Z X 440 Racing - 2004
-
№АртикулНазвание
-
1517225900 Flat WasherFlat Washer
-
2293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
3520000424 Snow FlapSnow Flap
-
4516002380 StickerSticker
-
5520000237 Rear Reflector (Red). C/URear Reflector (Red). C/U
-
520000311 Rear Reflector (Amber). EURRear Reflector (Amber). EUR
-
6520000271 Reflector Amber (Europe). EURReflector Amber (Europe). EUR
-
7520000126 Adjustment WrenchAdjustment Wrench
-
8417126861 Tool (Not Shown)Tool (Not Shown)
-
9520000322 TrunkTrunk
-
10570069700 LatchLatch
-
11529035596 Tool Kit. INCLUDES 11 TO 12Tool Kit. INCLUDES 11 TO 12
-
12520000047 Tool BagTool Bag
-
13415037900 Reflector White (Europe). EURReflector White (Europe). EUR
-
14516001336 Front ReflectorFront Reflector
