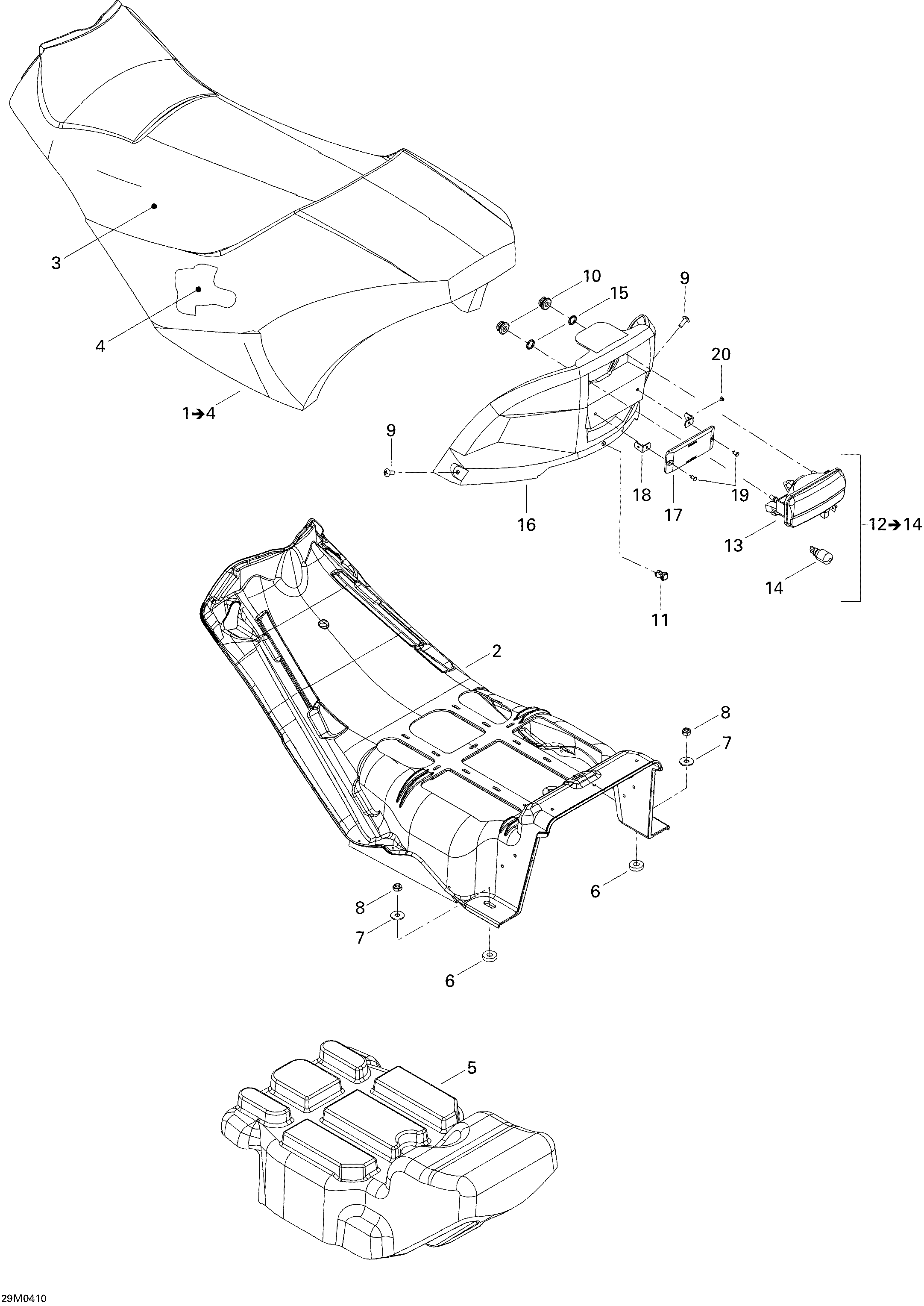

09- Seat для BRP Ski-Doo MX Z X 440 Racing - 2004
-
№АртикулНазвание
-
1510004317 Seat Assy.. INCLUDES 1 TO 4Seat Assy.. INCLUDES 1 TO 4
-
2510004430 Seat BaseSeat Base
-
3510004320 Seat CoverSeat Cover
-
4510004321 Seat Foam PuSeat Foam Pu
-
5510004161 Foam EppFoam Epp
-
6510004418 WasherWasher
-
7234082410 Flat Washer 8 mmFlat Washer 8 mm
-
8232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
9250000129 Torx M6 X 16Torx M6 X 16
-
10705001119 Oblong WasherOblong Washer
-
11293150089 Tuflok Plastique RivetTuflok Plastique Rivet
-
12510004319 Rear Light Ass'Y. INCLUDES 12 TO 14Rear Light Ass'Y. INCLUDES 12 TO 14
-
13710000652 Lens BoxLens Box
-
14710000653 BulbBulb
-
15293300006 O-RingO-Ring
-
19390403000 Pop-Rivet 5/32Pop-Rivet 5/32
-
20293150059 Pop-Rivet 5/32Pop-Rivet 5/32
