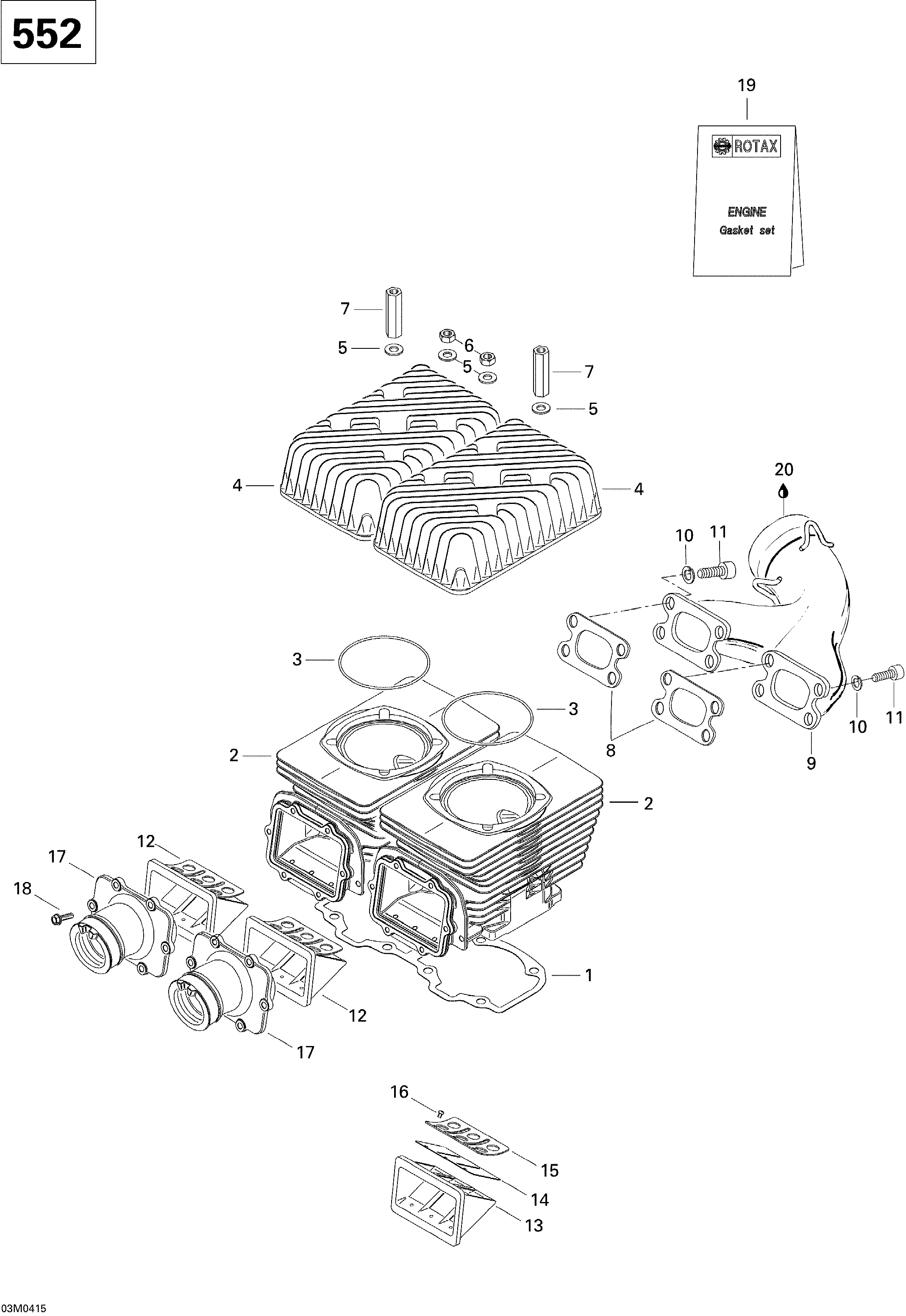

01- Cylinder, Exhaust Manifold (552) для BRP Ski-Doo Skandic SUV 550F - 2004
-
№АртикулНазвание
-
1420950910 Gasket 0,3Gasket 0,3
-
1420950911 Gasket 0,4Gasket 0,4
-
1420950912 Gasket 0,6Gasket 0,6
-
2420923975 CylinderCylinder
-
3293300026 O-RingO-Ring
-
4420923595 Head CylinderHead Cylinder
-
5420250311 Washer 8.4 mmWasher 8.4 mm
-
6232081414 Nut M8Nut M8
-
7420842203 Distance Nut M8 X 42Distance Nut M8 X 42
-
8420831849 Gasket 1.0 mmGasket 1.0 mm
-
9420973512 Exhaust ManifoldExhaust Manifold
-
10234181401 Lock Washer 8 mmLock Washer 8 mm
-
11M40135 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
12420924519 Reed Valve Ass'Y. Includes Items 14 to 18Reed Valve Ass'Y. Includes Items 14 to 18
-
14420924532 Reed PedalReed Pedal
-
15420924539 Reed Pedal StopReed Pedal Stop
-
16420941215 Screw M3 X 5Screw M3 X 5
-
17420867105 Carburetor SocketCarburetor Socket
-
18420941925 Screw M5 X 16Screw M5 X 16
-
19420889910 Gasket SetGasket Set
-
20293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
