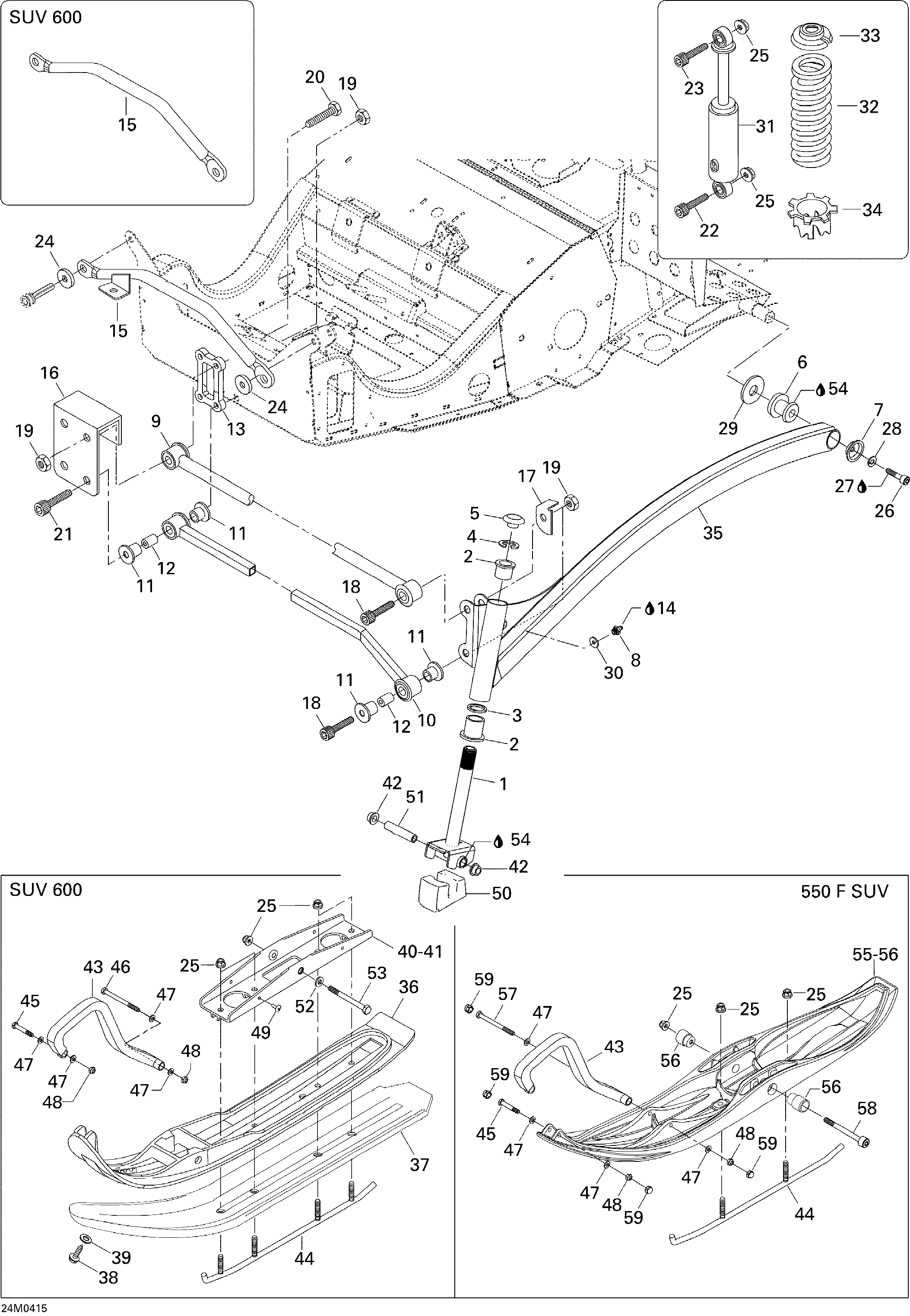

07- Front Suspension And Ski для BRP Ski-Doo Skandic SUV 550F - 2004
-
№АртикулНазвание
-
1506151234 Ski LegSki Leg
-
2505070003 CushionCushion
-
3505070004 WasherWasher
-
4371910400 CirclipCirclip
-
5572091300 CapCap
-
6570062200 DamperDamper
-
7506115800 CupCup
-
8M34011 Grease FittingGrease Fitting
-
9M5348207 Upper Arm Ass'YUpper Arm Ass'Y
-
10M5248204 Lower Arm Ass'YLower Arm Ass'Y
-
11506149100 CushionCushion
-
12605450024 Bushing. 550F SUVBushing. 550F SUV
-
12506149200 Bushing. 600 SUVBushing. 600 SUV
-
13M5345384 Lower Link PlateLower Link Plate
-
14219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
15605349134 Bar Support. 550F SUVBar Support. 550F SUV
-
15605348306 Bar. 600 SUVBar. 600 SUV
-
16M5345716 Painted Link PlatePainted Link Plate
-
17605448861 RH Plate LockingRH Plate Locking
-
17605448862 LH Plate LockingLH Plate Locking
-
18M40371 Screw Allen M12 X 55Screw Allen M12 X 55
-
19232521414 Hex Elastic Stop Nut M12Hex Elastic Stop Nut M12
-
20M40185 Screw M12 X 75Screw M12 X 75
-
21M40370 Screw Allen M12 X 75Screw Allen M12 X 75
-
22M40837 Screw M10 X 55Screw M10 X 55
-
23M40254 Screw M10 X 65Screw M10 X 65
-
24605449801 WasherWasher
-
25M33074 Nut. 550F SUVNut. 550F SUV
-
25M33074 Nut. 600 SUVNut. 600 SUV
-
26M40810 Screw Allen M8 X 20Screw Allen M8 X 20
-
27293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
28234181401 Lock Washer 8 mmLock Washer 8 mm
-
29503146700 WasherWasher
-
30M20007 WasherWasher
-
31M23165 Front ShockFront Shock
-
32M25061 SpringSpring
-
33M230076 Spring StopperSpring Stopper
-
34M230078 CamCam
-
35M5248252 RH ArmRH Arm
-
35M5248336 LH ArmLH Arm
-
36505070189 Ski-Liner Flex. 600 SUVSki-Liner Flex. 600 SUV
-
37M5147975 Ski Liner. 600 SUVSki Liner. 600 SUV
-
38M40901 Hex Screw. 600 SUVHex Screw. 600 SUV
-
39M20037 Washer. 600 SUVWasher. 600 SUV
-
40505070000 Bridge. 600 SUVBridge. 600 SUV
-
41505070001 Bushing. 600 SUVBushing. 600 SUV
-
42505070001 Bushing. 600 SUVBushing. 600 SUV
-
43505070963 Handle (Black)Handle (Black)
-
44605349311 Carbide Runner. 550F SUVCarbide Runner. 550F SUV
-
44M5347354 Carbide Runner. 600 SUVCarbide Runner. 600 SUV
-
45207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
46M40869 Hex Screw M8 X 100. 600 SUVHex Screw M8 X 100. 600 SUV
-
47234081410 Flat Washer 8 mmFlat Washer 8 mm
-
48232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
49M36072 Rivet. 600 SUVRivet. 600 SUV
-
50605348458 Ski Stopper. 550F SUVSki Stopper. 550F SUV
-
50506151233 Ski Stopper. 600 SUVSki Stopper. 600 SUV
-
51506133300 SpacerSpacer
-
52M20105 Washer. 600 SUVWasher. 600 SUV
-
53M40814 Hex Screw M10 X 110. 600 SUVHex Screw M10 X 110. 600 SUV
-
54293550030 Grease, Super LubeGrease, Super Lube
-
55605148440 Ski Plastic Ski. 550F SUVSki Plastic Ski. 550F SUV
-
56605348392 Bushing. 550F SUVBushing. 550F SUV
-
57M40264 Hex Screw M8 X 90. 550F SUVHex Screw M8 X 90. 550F SUV
-
58M40225 Hex Screw M10 X 140. 550F SUVHex Screw M10 X 140. 550F SUV
-
59M28056 Cap. 550F SUVCap. 550F SUV
