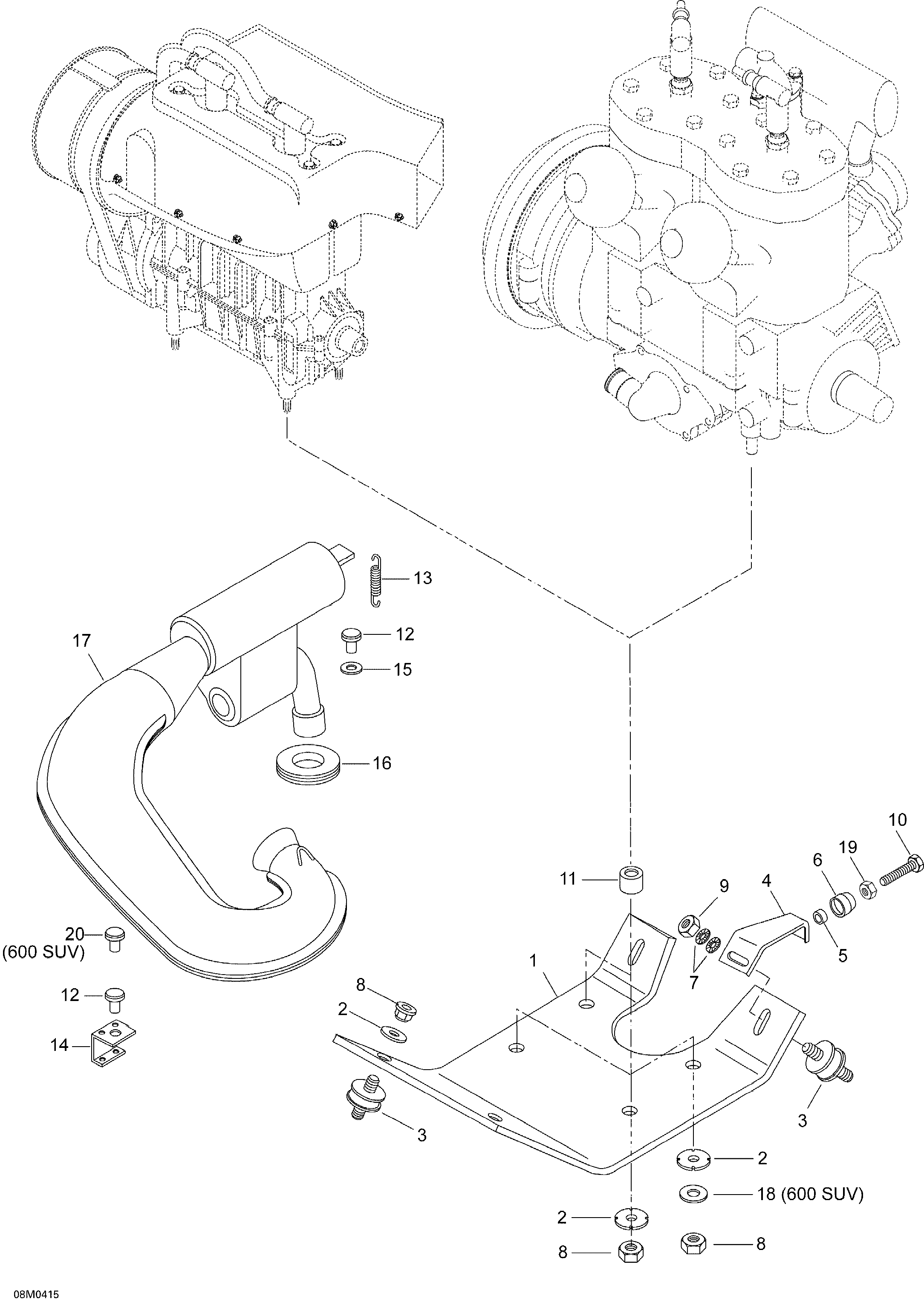

01- Engine Assembly And Support для BRP Ski-Doo Skandic SUV 550F - 2004
-
№АртикулНазвание
-
1605249349 Engine Support. 550F SUVEngine Support. 550F SUV
-
1605248305 Engine Support. 600 SUVEngine Support. 600 SUV
-
2512056700 Lock Washer. 550F SUVLock Washer. 550F SUV
-
2512056700 Lock Washer. 600 SUVLock Washer. 600 SUV
-
3570128700 Rubber MountRubber Mount
-
4M539902 SupportSupport
-
5M2846014 Rubber WasherRubber Washer
-
6M5440091 Sleeve. 550F SUVSleeve. 550F SUV
-
6605449240 Sleeve. 600 SUVSleeve. 600 SUV
-
7M20068 Lock WasherLock Washer
-
8233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
9232006414 Hex Nut M10Hex Nut M10
-
10M40121 Hex Screw M8 X 25Hex Screw M8 X 25
-
11M5446347 SleeveSleeve
-
12570048700 Rubber Bumper. 550F SUVRubber Bumper. 550F SUV
-
12570048700 Rubber Bumper. 600 SUVRubber Bumper. 600 SUV
-
13420938795 Spring. 550F SUVSpring. 550F SUV
-
13420938795 Spring. 600 SUVSpring. 600 SUV
-
14M5345893 Support. 600 SUVSupport. 600 SUV
-
15M20087 Washer. 550F SUVWasher. 550F SUV
-
15M20087 Washer. 600 SUVWasher. 600 SUV
-
16570039000 Exhaust GrommetExhaust Grommet
-
17605150134 Tuned Pipe Ass'Y. 550F SUVTuned Pipe Ass'Y. 550F SUV
-
17605148762 Tuned Pipe Ass'Y. 600 SUVTuned Pipe Ass'Y. 600 SUV
-
18M20105 Washer. 600 SUVWasher. 600 SUV
-
19M33003 NutNut
-
20605349421 Bumper. 600 SUVBumper. 600 SUV
