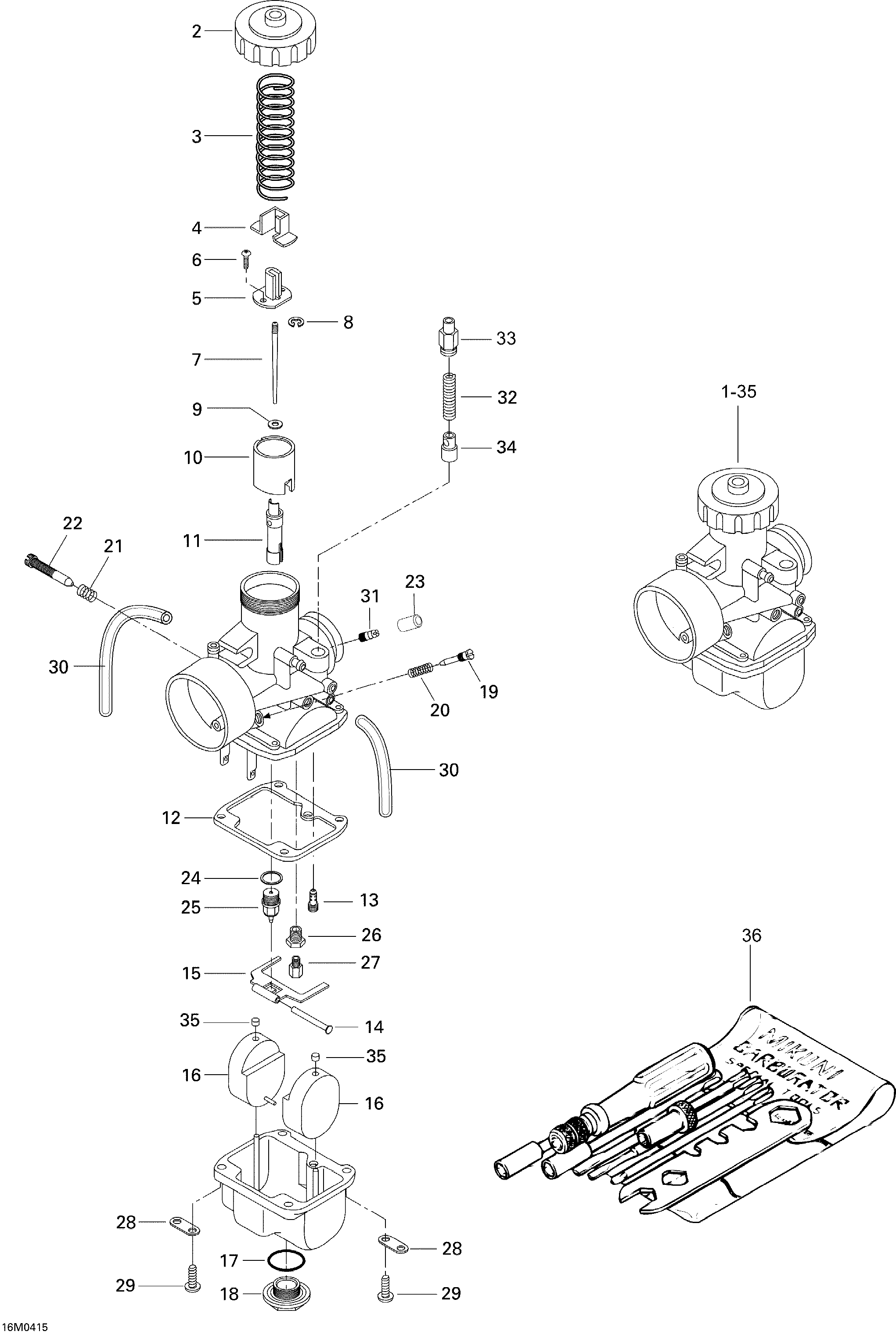

02- Carburetors для BRP Ski-Doo Skandic SUV 550F - 2004
-
№АртикулНазвание
-
1M19171 Carburetor Vm-34. 550F SUV Includes Items 1 to 35Carburetor Vm-34. 550F SUV Includes Items 1 to 35
-
1M19169 Carburetor Vm-38. 600 SUV Includes Item 1 to 35Carburetor Vm-38. 600 SUV Includes Item 1 to 35
-
2404103700 Cover. 550F SUVCover. 550F SUV
-
2404105100 Cover. 600 SUVCover. 600 SUV
-
3404154800 SpringSpring
-
4404122100 CoverCover
-
5404160800 ConnectorConnector
-
6404121300 Screw With WasherScrew With Washer
-
7404101900 Needle Jet J8-6Dh04. 550F SUVNeedle Jet J8-6Dh04. 550F SUV
-
7404162064 Needle Jet J8-6DGL24. 600 SUVNeedle Jet J8-6DGL24. 600 SUV
-
8404152400 E-RingE-Ring
-
9404117000 PackingPacking
-
10404128400 Piston Valve 2.5Piston Valve 2.5
-
11404107000 Needle Jet. 550F SUVNeedle Jet. 550F SUV
-
11404161805 Needle Jet Nj 480 P-9. 600 SUVNeedle Jet Nj 480 P-9. 600 SUV
-
12404104200 Gasket. 550F SUVGasket. 550F SUV
-
12404104700 Gasket. 600 SUVGasket. 600 SUV
-
13404109100 Pilot Jet Pj 40Pilot Jet Pj 40
-
14404103300 Lever PinLever Pin
-
15404107600 Float Lever. 550F SUVFloat Lever. 550F SUV
-
15404105000 Float Lever. 600 SUVFloat Lever. 600 SUV
-
16404107100 Float. 550F SUVFloat. 550F SUV
-
16404105400 Float. 600 SUVFloat. 600 SUV
-
17404107300 O-Ring. 550F SUVO-Ring. 550F SUV
-
17404101500 O-Ring. 600 SUVO-Ring. 600 SUV
-
18404107400 Drain Plug Screw. 550F SUVDrain Plug Screw. 550F SUV
-
18404105600 Drain Plug Screw. 600 SUVDrain Plug Screw. 600 SUV
-
19404102300 Idle Adjusting Screw. 550F SUVIdle Adjusting Screw. 550F SUV
-
19404149000 Air Screw. 600 SUVAir Screw. 600 SUV
-
20404101800 Spring. 550F SUVSpring. 550F SUV
-
20404139800 Spring (Air Screw). 600 SUVSpring (Air Screw). 600 SUV
-
21404101700 Spring (Throttle Screw)Spring (Throttle Screw)
-
22404102800 Idle Speed ScrewIdle Speed Screw
-
23M19057 CapCap
-
24404101600 Seat WasherSeat Washer
-
25404147500 Needle Valve 1.2. 550F SUVNeedle Valve 1.2. 550F SUV
-
25404147400 Needle Valve 1.5. 600 SUVNeedle Valve 1.5. 600 SUV
-
26404105500 Guide ScrewGuide Screw
-
27404119000 Main Jet, MJ 190. 550F SUVMain Jet, MJ 190. 550F SUV
-
27404101400 Main Jet Mj 330. 600 SUVMain Jet Mj 330. 600 SUV
-
28404103000 PlatePlate
-
29404102000 Screw And Lock WasherScrew And Lock Washer
-
30404160100 Air Vent TubeAir Vent Tube
-
31404127600 Nipple. 550F SUVNipple. 550F SUV
-
31404153400 Nipple. 600 SUVNipple. 600 SUV
-
32404127400 SpringSpring
-
33404161100 GuideGuide
-
34404160400 Plunger Ass'YPlunger Ass'Y
-
35404105800 CapCap
-
36404112000 Tool KitTool Kit
