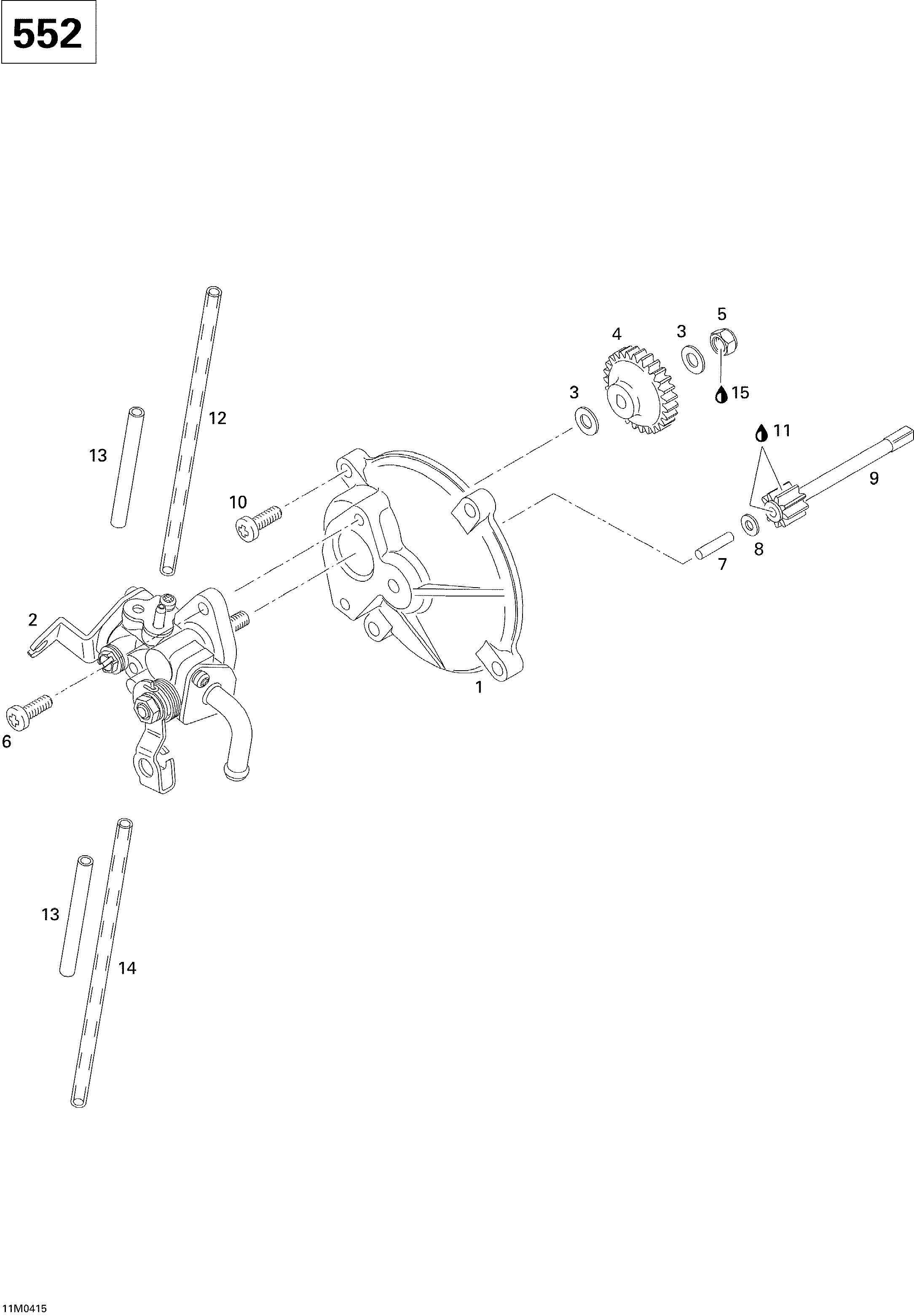

02- Oil Injection System (552) для BRP Ski-Doo Skandic SUV 550F - 2004
![](/wa-data/public/shop/sheme/bombardier/ski-doo/32601922-2948-4bf1-bc48-bf35f0ba4aa0.png)
-
№АртикулНазвание
-
1420910160 Pump Mounting FlangePump Mounting Flange
-
2420889070 Oil Pump AssyOil Pump Assy
-
3420927945 Flat WasherFlat Washer
-
4420935930 Oil Pump Gear (27 Teeth)Oil Pump Gear (27 Teeth)
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6420841971 ScrewScrew
-
7420832260 Needle PinNeedle Pin
-
8420244073 Washer 4.3 mmWasher 4.3 mm
-
9420935970 Gear (9 Teeth)Gear (9 Teeth)
-
10420841976 ScrewScrew
-
11413707000 Molykote 111Molykote 111
-
12420660493 Oil Line 325mmOil Line 325mm
-
13276000048 Isolation Hose 200 mmIsolation Hose 200 mm
-
14420660495 Oil Line 400mmOil Line 400mm
-
15293800060 Loctite 243, 10 mlLoctite 243, 10 ml
