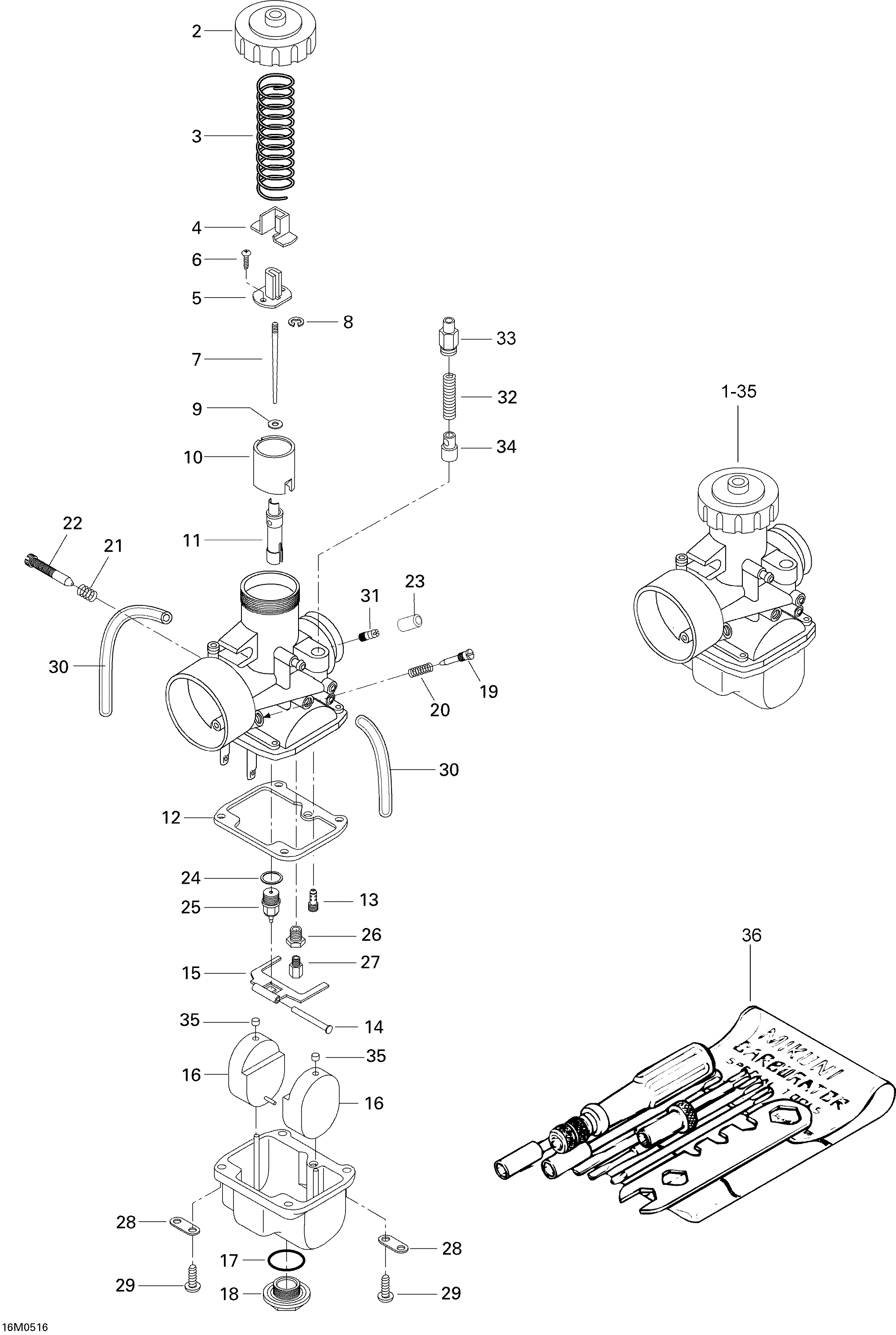

02- Carburetor 600 WT для BRP Ski-Doo Skandic WT 600 - 2005
-
№АртикулНазвание
-
1M19169 Carburetor Vm-38. WT 600, Includes 1 to 34Carburetor Vm-38. WT 600, Includes 1 to 34
-
2404105100 Cover. WT 600Cover. WT 600
-
3404154800 SpringSpring
-
4404122100 CoverCover
-
5404160800 ConnectorConnector
-
6404121300 Screw With WasherScrew With Washer
-
7404162064 Needle Jet J8-6DGL24. WT 600Needle Jet J8-6DGL24. WT 600
-
8404152400 E-RingE-Ring
-
9404117000 PackingPacking
-
10404128400 Piston Valve 2.5Piston Valve 2.5
-
11404161805 Needle Jet Nj 480 P-9. WT 600Needle Jet Nj 480 P-9. WT 600
-
12404104700 Gasket. WT 600Gasket. WT 600
-
13404109100 Pilot Jet Pj 40Pilot Jet Pj 40
-
14404103300 Lever PinLever Pin
-
15404105000 Float Lever. WT 600Float Lever. WT 600
-
16404105400 Float. WT 600Float. WT 600
-
17404101500 O-Ring. WT 600O-Ring. WT 600
-
18404105600 Drain Plug Screw. WT 600Drain Plug Screw. WT 600
-
19404149000 Air Screw. WT 600Air Screw. WT 600
-
20404139800 Spring (Air Screw). WT 600Spring (Air Screw). WT 600
-
21404101700 Spring (Throttle Screw)Spring (Throttle Screw)
-
22404102800 Idle Speed ScrewIdle Speed Screw
-
23M19057 CapCap
-
24404101600 Seat WasherSeat Washer
-
25404147400 Needle Valve 1.5. WT 600Needle Valve 1.5. WT 600
-
26404105500 Guide ScrewGuide Screw
-
27404101400 Main Jet 330. WT 600Main Jet 330. WT 600
-
28404103000 PlatePlate
-
29404102000 Screw And Lock WasherScrew And Lock Washer
-
30404160100 Air Vent TubeAir Vent Tube
-
31404153400 Nipple. WT 600Nipple. WT 600
-
32404127400 SpringSpring
-
33404161100 GuideGuide
-
34404160400 Plunger Ass'YPlunger Ass'Y
-
35404105800 CapCap
-
36404112000 Tool KitTool Kit
