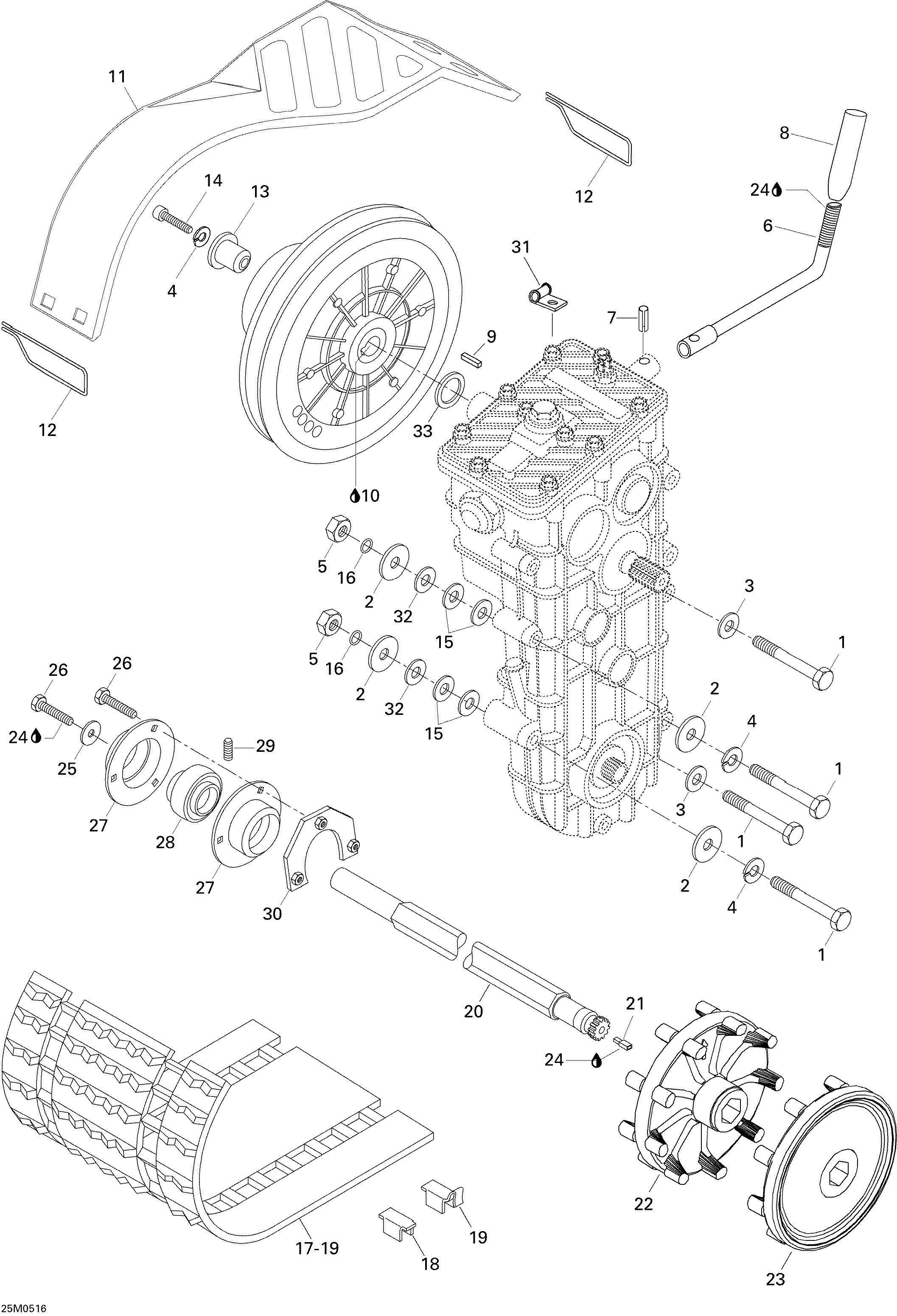

07- Drive Axle, Track And Belt Guard 600WT для BRP Ski-Doo Skandic WT 600 - 2005
-
№АртикулНазвание
-
1M40012 Screw M8 X 80Screw M8 X 80
-
2M20010 WasherWasher
-
3234081410 Flat Washer 8 mmFlat Washer 8 mm
-
4234181401 Lock Washer M8Lock Washer M8
-
5232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
6M5340902 Arm ShifterArm Shifter
-
7M41007 Pin Spring. WT 600Pin Spring. WT 600
-
8M28247 Arm Shifter BallArm Shifter Ball
-
9M418763 KeyKey
-
10293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
11M5142660 Belt GuardBelt Guard
-
12M5442726 PinPin
-
13M5443201 Shaft Extension. WT 600Shaft Extension. WT 600
-
14M40286 Socket Head Screw M8 X 45. WT 600Socket Head Screw M8 X 45. WT 600
-
15M20077 Washer. WT 600Washer. WT 600
-
16506151140 O-Ring. WT 600O-Ring. WT 600
-
17M13070 Track Ass'Y. WT 600, Includes 17 to 19Track Ass'Y. WT 600, Includes 17 to 19
-
18M5318323 Guide CleatGuide Cleat
-
19M5318322 CleatCleat
-
20M5345117 Drive Axle. WT 600Drive Axle. WT 600
-
21M542013 NippleNipple
-
22414931800 SprocketSprocket
-
23415067400 Half Sprocket. WT 600Half Sprocket. WT 600
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25M546336 WasherWasher
-
26M40336 Screw M8 X 20Screw M8 X 20
-
27M534430 Ball Bearing HousingBall Bearing Housing
-
28M31UC205 Ball BearingBall Bearing
-
29M10531 ScrewScrew
-
30M546421 Half RingHalf Ring
-
31M5443134 Wire Holder. WT 600Wire Holder. WT 600
-
32M20031 Washer. WT 600Washer. WT 600
