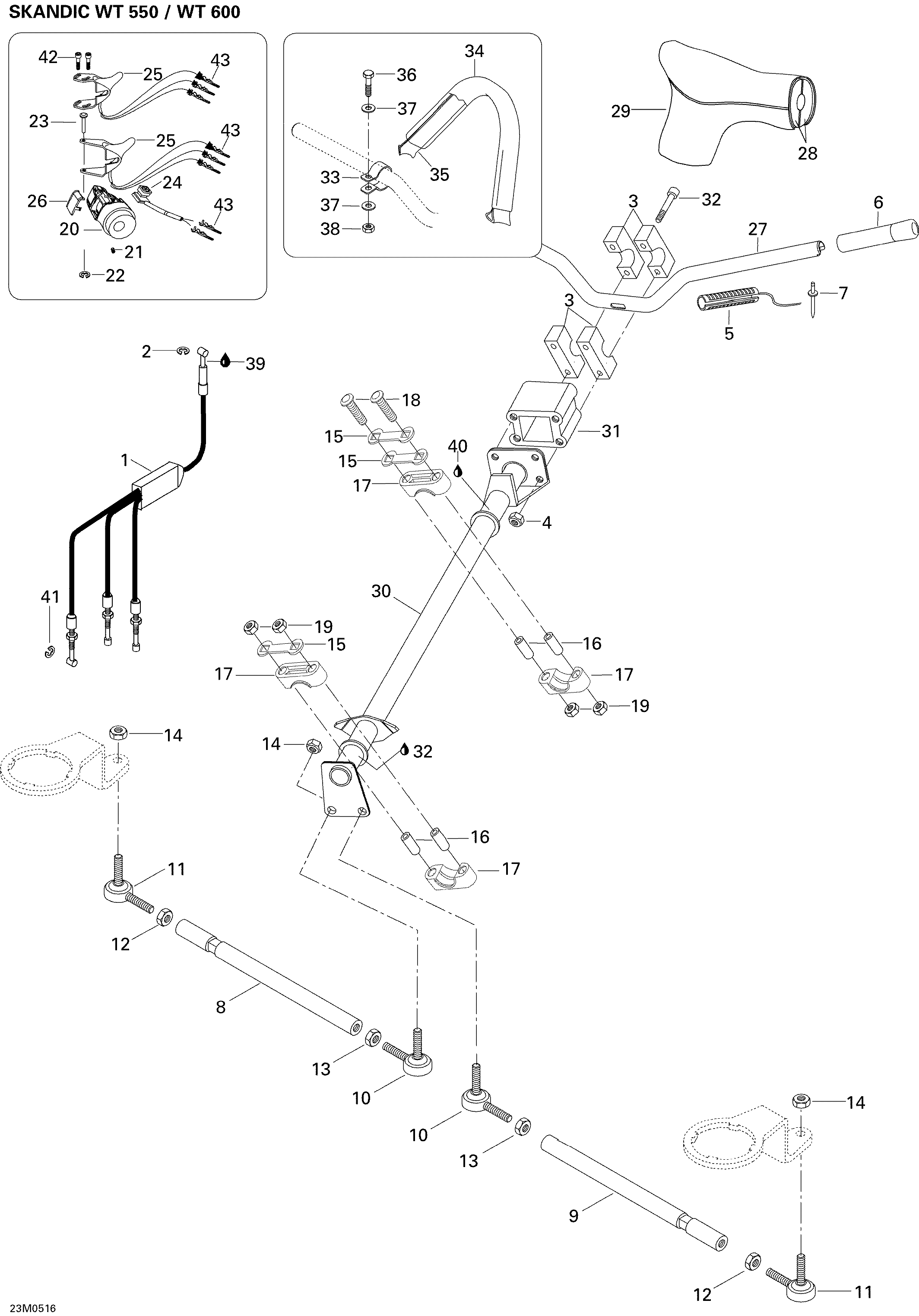

07- Steering System 600 WT для BRP Ski-Doo Skandic WT 600 - 2005
-
№АртикулНазвание
-
1M5246328 Throttle Cable. WT 600Throttle Cable. WT 600
-
2M31038 CirclipCirclip
-
3M548448 Steering ClampSteering Clamp
-
4232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
5515175664 Heating GripHeating Grip
-
6M5340464 Grip HandleGrip Handle
-
7M36005 RivetRivet
-
8M5441066 Tie Rod LHTie Rod LH
-
9M548983 RH Tie RodRH Tie Rod
-
10506151495 LH Ball JointLH Ball Joint
-
11506151492 RH Ball JointRH Ball Joint
-
12M33019 RH NutRH Nut
-
13M33017 LH NutLH Nut
-
14M33023 NutNut
-
15506150600 Stopper PlateStopper Plate
-
16506150500 Housing BushingHousing Bushing
-
17506150400 Housing HalfHousing Half
-
18207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
19M33201 Elastic Stop Nut M8Elastic Stop Nut M8
-
20512059243 Throttle Housing. WT 600Throttle Housing. WT 600
-
21414440800 Set Screw M8 X 10Set Screw M8 X 10
-
24515175410 Kill SwitchKill Switch
-
25512059348 Handle Ass'Y. WT 600Handle Ass'Y. WT 600
-
26572100901 Switch CoverSwitch Cover
-
27605249033 Handle BarHandle Bar
-
28605250306 Rear Padding SteeringRear Padding Steering
-
28605250305 Front Padding SteeringFront Padding Steering
-
29605248761 Cover. WT 600Cover. WT 600
-
30605249849 Main TubeMain Tube
-
31605349584 ExtensionExtension
-
32M40124 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
39293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
40219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
41M31035 CirclipCirclip
-
42732601143 Flanged Screw. WT 600Flanged Screw. WT 600
-
43M42603 Male TerminalMale Terminal
