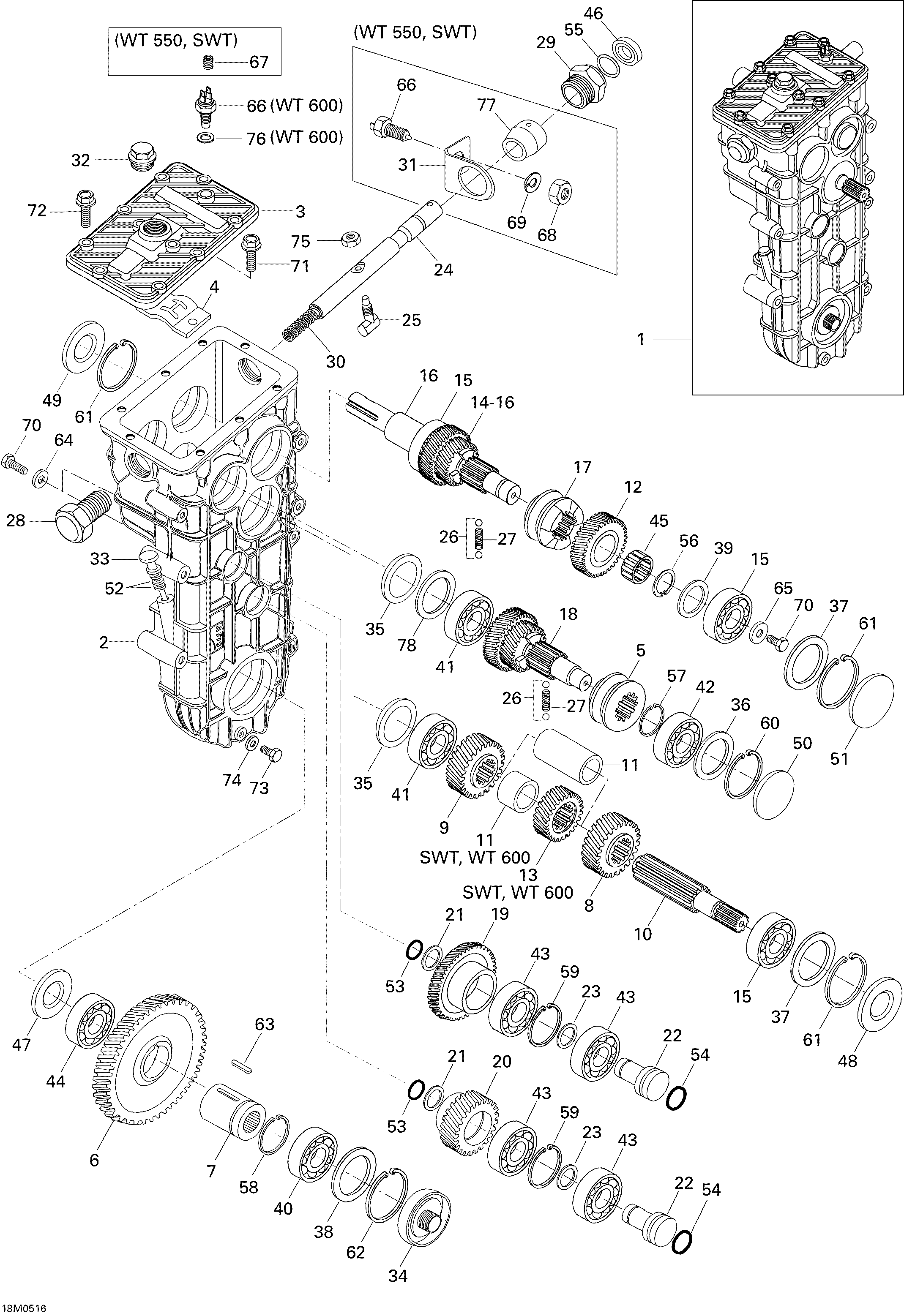

05- Transmission 600 WT для BRP Ski-Doo Skandic WT 600 - 2005
-
№АртикулНазвание
-
2M875156138 Chain CaseChain Case
-
3M875156043 CoverCover
-
4M875156111 H SchemeH Scheme
-
5M875156005 Clutch WheelClutch Wheel
-
6M875156114 Sprocket 53 Th. WT 600Sprocket 53 Th. WT 600
-
7M875156218 ShaftShaft
-
8M875156136 Sprocket 27 Th. WT 600Sprocket 27 Th. WT 600
-
9M875156054 Sprocket 34ThSprocket 34Th
-
10M875156069 ShaftShaft
-
11M875156088 Sleeve. WT 600Sleeve. WT 600
-
12M875156135 Sprocket 29 Th. WT 600Sprocket 29 Th. WT 600
-
13M875156151 Sprocket 29Th. WT 600Sprocket 29Th. WT 600
-
14M875156063 Variator Shaft. WT 600, Includes 14 to 16Variator Shaft. WT 600, Includes 14 to 16
-
15M610063050 Ball BearingBall Bearing
-
16M875156089 Sleeve. WT 600Sleeve. WT 600
-
17M875156005 Clutch WheelClutch Wheel
-
18M875156068 Reverse ShaftReverse Shaft
-
19M875156206 Sprocket 28Th. WT 600Sprocket 28Th. WT 600
-
20M875156156 Sprocket 31 Th. WT 600Sprocket 31 Th. WT 600
-
21M875156094 RingRing
-
22M875147204 ShaftShaft
-
23M875147205 WasherWasher
-
24M875156072 ShaftShaft
-
25M875156073 PinPin
-
26M616810064 BallBall
-
27M875156105 SpringSpring
-
28M875156076 Sleeve NutSleeve Nut
-
29M875156077 Sleeve NutSleeve Nut
-
30M875156078 SpringSpring
-
32M875156098 PlugPlug
-
33M875156097 Filler Cap Ass'YFiller Cap Ass'Y
-
34M875156104 PlugPlug
-
35M875152953 PlugPlug
-
36M617394252 ShimShim
-
37M617395065 ShimShim
-
38M617395568 ShimShim
-
39M616092542 Axial WasherAxial Washer
-
40M6008 Ball BearingBall Bearing
-
41M610063044 Ball BearingBall Bearing
-
42M6304 Ball BearingBall Bearing
-
43M610063036 Ball BearingBall Bearing
-
44M6008 Ball BearingBall Bearing
-
45M611002529 Needle BearingNeedle Bearing
-
46M614102031 Oil SealOil Seal
-
47M614102852 Oil SealOil Seal
-
48M614102562 Oil SealOil Seal
-
49M614103562 Oil SealOil Seal
-
50M614100052 PlugPlug
-
51M614100062 PlugPlug
-
52M614600725 O'RingO'Ring
-
53M614601224 O'RingO'Ring
-
54M614602431 O'RingO'Ring
-
55M614601523 O'RingO'Ring
-
56M617450025 CirclipCirclip
-
57M617450028 CirclipCirclip
-
58M617300040 CirclipCirclip
-
59M617330047 CirclipCirclip
-
60M617330052 CirclipCirclip
-
61M617330062 Lock RingLock Ring
-
62M617330068 CirclipCirclip
-
63M603345080 KeyKey
-
64M501150902 WasherWasher
-
65M875156112 WasherWasher
-
66M654100225 Backup SenderBackup Sender
-
70207182044 Hex Screw M8 X 20Hex Screw M8 X 20
-
71M40337 Hex ScrewHex Screw
-
72M537001402 ScrewScrew
-
73M528801342 PlugPlug
-
74M615580812 Gasket RingGasket Ring
-
75M510611002 NutNut
-
76M617391218 ShimShim
-
78M617394352 Shim 0.5 mm. WT 600Shim 0.5 mm. WT 600
