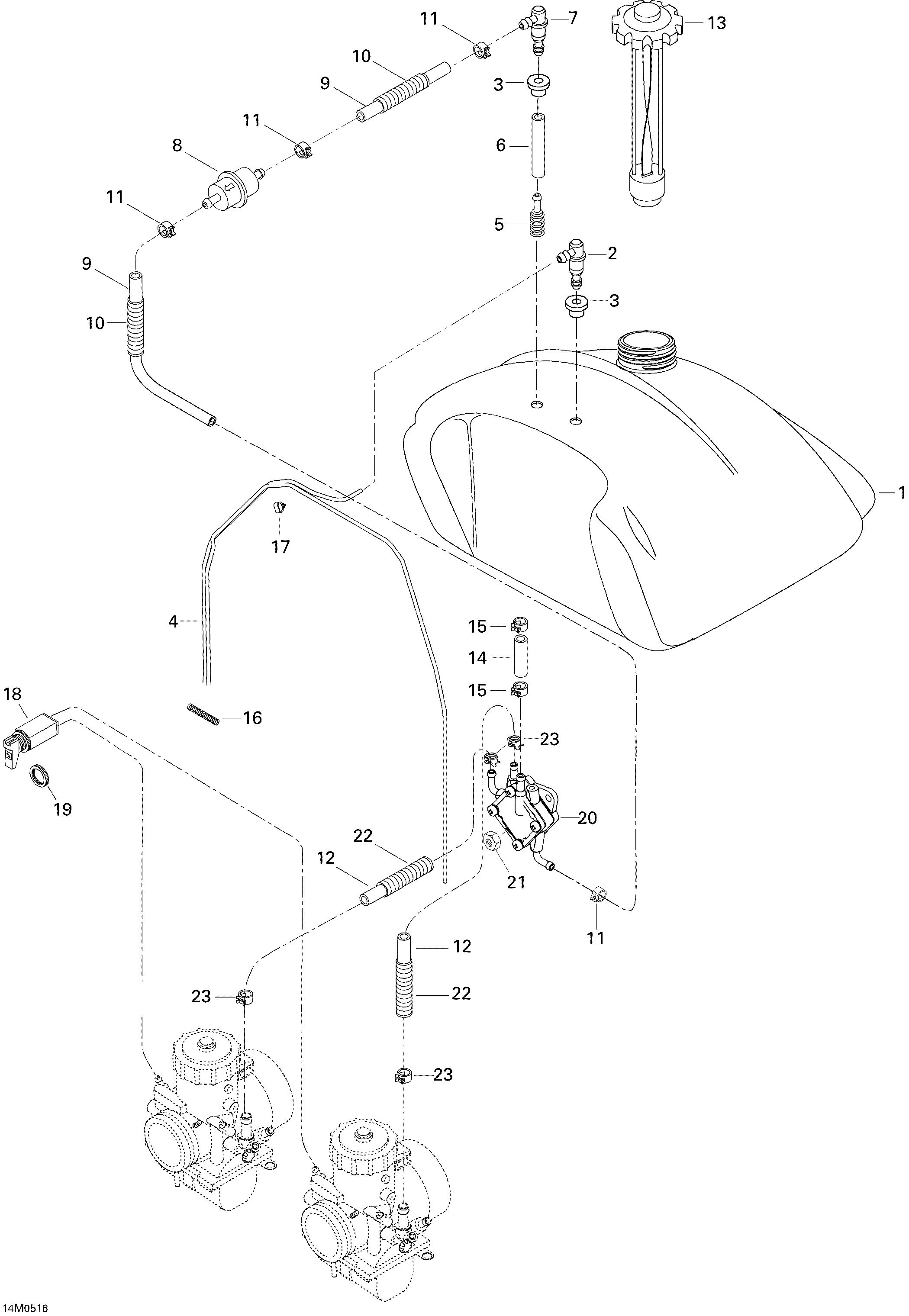

02- Fuel System 600WT для BRP Ski-Doo Skandic WT 600 - 2005
-
№АртикулНазвание
-
1M519393 Fuel TankFuel Tank
-
2M533535 Male ConnectorMale Connector
-
3M28037 GrommetGrommet
-
4M39035 HoseHose
-
5414872100 Fuel FilterFuel Filter
-
6415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
7M5341709 Male ConnectorMale Connector
-
8414536500 Filter. WT 600Filter. WT 600
-
9415080700 Line. WT 600Line. WT 600
-
10M28015 Housing. WT 600Housing. WT 600
-
11414415200 Spring Clamp. WT 600Spring Clamp. WT 600
-
12M39004 HoseHose
-
13605349994 Cap Fuel TankCap Fuel Tank
-
14415080200 LineLine
-
15414420700 Spring ClampSpring Clamp
-
16M25003 SpringSpring
-
17513032923 Tube ClampTube Clamp
-
18M535482 Choke Cable. Includes 18 to 19Choke Cable. Includes 18 to 19
-
19512059364 Nut-plasticNut-plastic
-
20M19113 Fuel Pump. WT 600Fuel Pump. WT 600
-
21232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
22M28012 HousingHousing
-
23M27086 Spring ClampSpring Clamp
