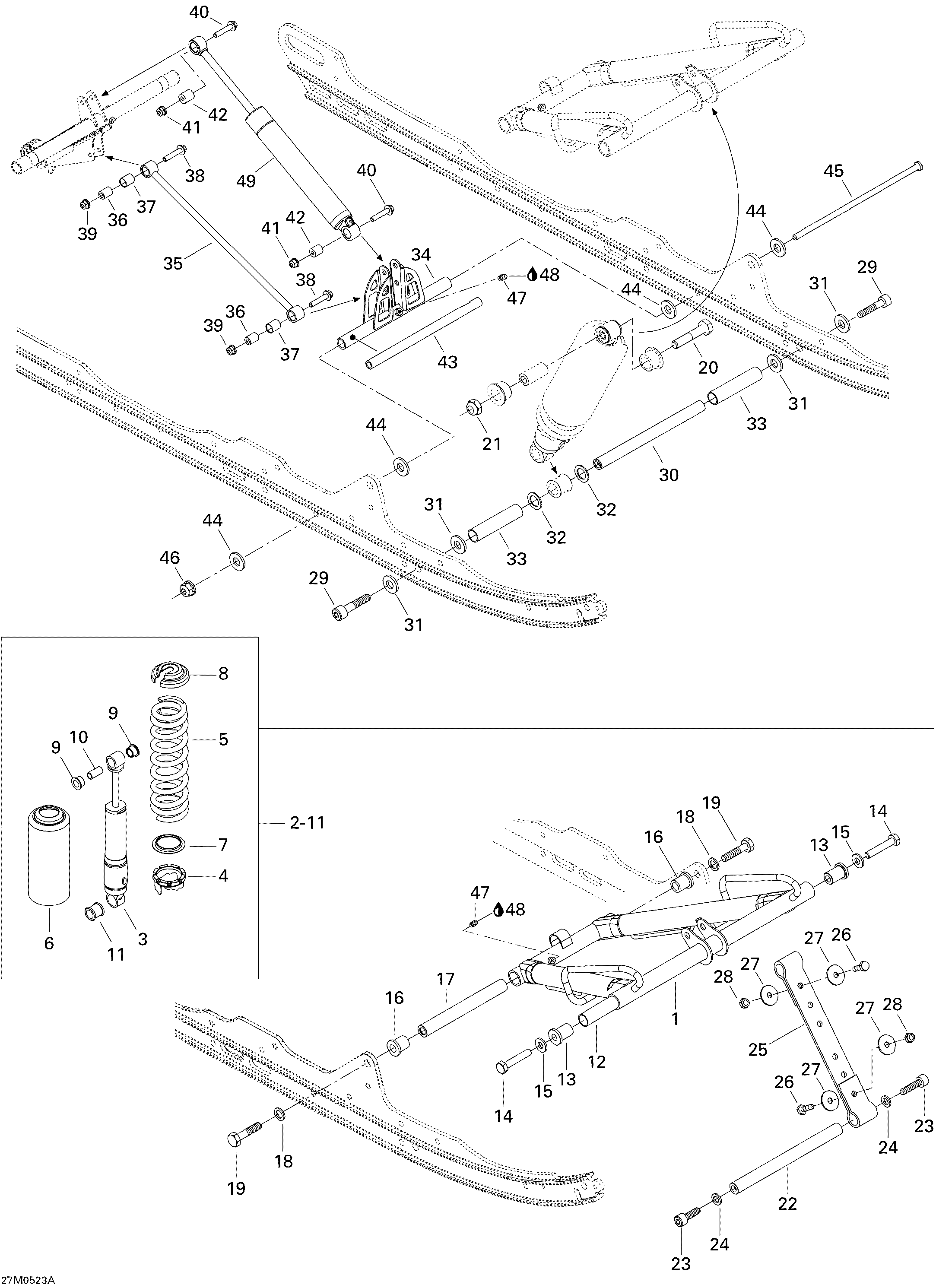

08- Front Arm для BRP Ski-Doo Summit 550F - 2005
-
№АртикулНазвание
-
1503191080 Front ArmFront Arm
-
3503190658 Center ShockCenter Shock
-
4505070401 WasherWasher
-
5503189325 SpringSpring
-
6503188930 ProtectorProtector
-
7503187500 Spring GuideSpring Guide
-
8503140600 Spring StopperSpring Stopper
-
9503189117 CushionCushion
-
10503189282 BushingBushing
-
11503189271 CushionCushion
-
12503190387 ShaftShaft
-
13503189324 CushionCushion
-
14207205544 Hex Screw M10 X 55, Scotch GripHex Screw M10 X 55, Scotch Grip
-
15732900049 WasherWasher
-
16503189323 CushionCushion
-
17503189313 ShaftShaft
-
18503189276 WasherWasher
-
19207226044 Hex Screw M12 X 60, Scotch GripHex Screw M12 X 60, Scotch Grip
-
20207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
21233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
22503189562 AxleAxle
-
23205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
24503189564 WasherWasher
-
25503190782 Stopper StrapStopper Strap
-
26207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
27224081301 Flat WasherFlat Washer
-
28233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
29205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
30503189272 Center Shock ShaftCenter Shock Shaft
-
31503189276 WasherWasher
-
32503189273 WasherWasher
-
33503189274 SpacerSpacer
-
34503189545 Pivot Arm, BlackPivot Arm, Black
-
35503189547 Throttle RodThrottle Rod
-
36503189133 Rod AxleRod Axle
-
37503189625 CushionCushion
-
38207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
39250100025 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
40207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
41250100025 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
42414936000 CushionCushion
-
43503189156 Pivot Arm AxlePivot Arm Axle
-
44503189157 WasherWasher
-
45732601198 Long Bolt M8Long Bolt M8
-
46250100025 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
47408200700 Grease FittingGrease Fitting
-
48219700417 Grease Asalso, 180 KgGrease Asalso, 180 Kg
-
49503190661 Rear ShockRear Shock
-
49503190811 Rear Shock. EuropeRear Shock. Europe
