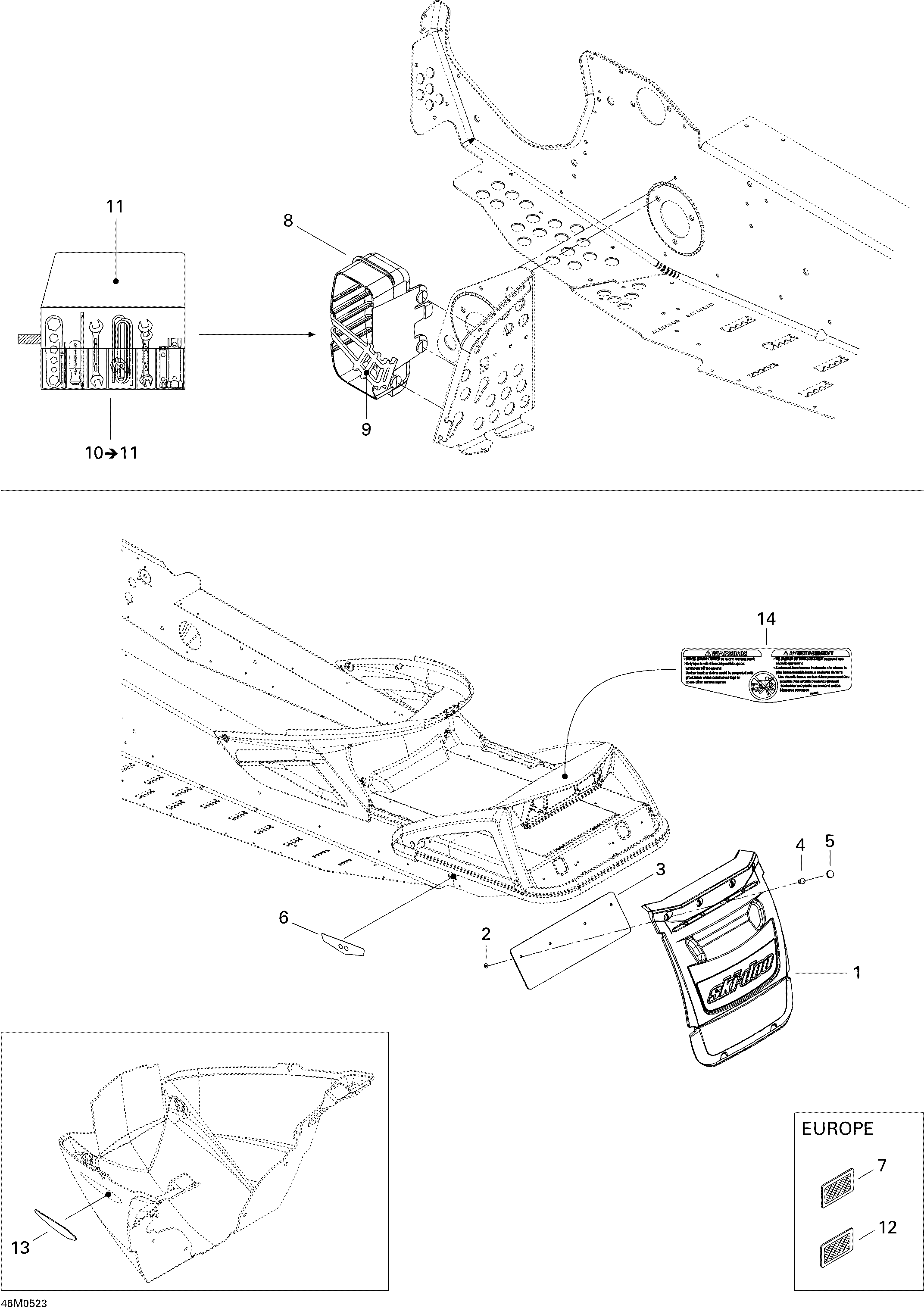

09- Utilities для BRP Ski-Doo Summit 550F - 2005
-
№АртикулНазвание
-
1520000449 Snow Guard. Canada, USASnow Guard. Canada, USA
-
1520000451 Snow Guard. EuropeSnow Guard. Europe
-
2517225900 Flat WasherFlat Washer
-
3520000423 Snow Guard ReinforcementSnow Guard Reinforcement
-
4390906800 Pop Rivet 3/16''Pop Rivet 3/16''
-
5277000203 Cap (Black)Cap (Black)
-
6520000382 Rear Reflector. Canada, USARear Reflector. Canada, USA
-
6520000383 Rear Reflector. EuropeRear Reflector. Europe
-
7520000271 Reflector Amber (Europe). EuropeReflector Amber (Europe). Europe
-
8520000322 TrunkTrunk
-
9570069700 LatchLatch
-
10529035596 Tool KitTool Kit
-
11520000047 Tool BagTool Bag
-
12415037900 Reflector White (Europe). EuropeReflector White (Europe). Europe
-
13516001336 Front ReflectorFront Reflector
-
14516002832 Warning Label, TrackWarning Label, Track
