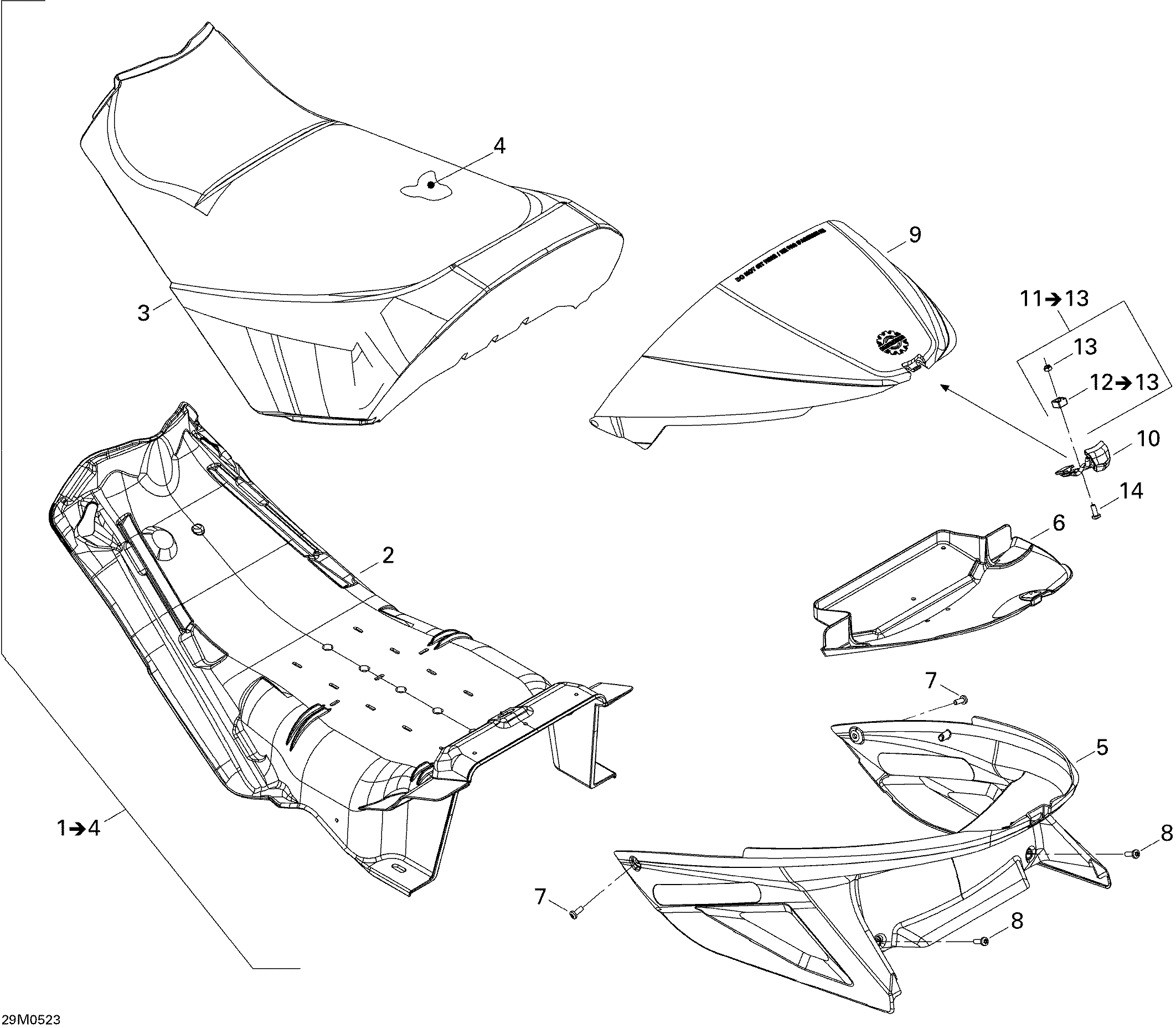

09- Seat для BRP Ski-Doo Summit 550F - 2005
-
№АртикулНазвание
-
2510004575 Seat BaseSeat Base
-
3510004596 Seat CoverSeat Cover
-
4510004275 Seat FoamSeat Foam
-
5510004230 Trunk, Noir, B-160Trunk, Noir, B-160
-
6510004600 Box LinerBox Liner
-
7250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
8250000128 Torx Screw M6 X 20Torx Screw M6 X 20
-
9510004311 Cover, Noir, B-160Cover, Noir, B-160
-
10510003917 BracketBracket
-
11708000046 Nut Housing Ass'y, M6Nut Housing Ass'y, M6
-
12269500252 Nut Housing Ass'YNut Housing Ass'Y
-
13232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
14250000129 Torx Screw M6 X 16Torx Screw M6 X 16
