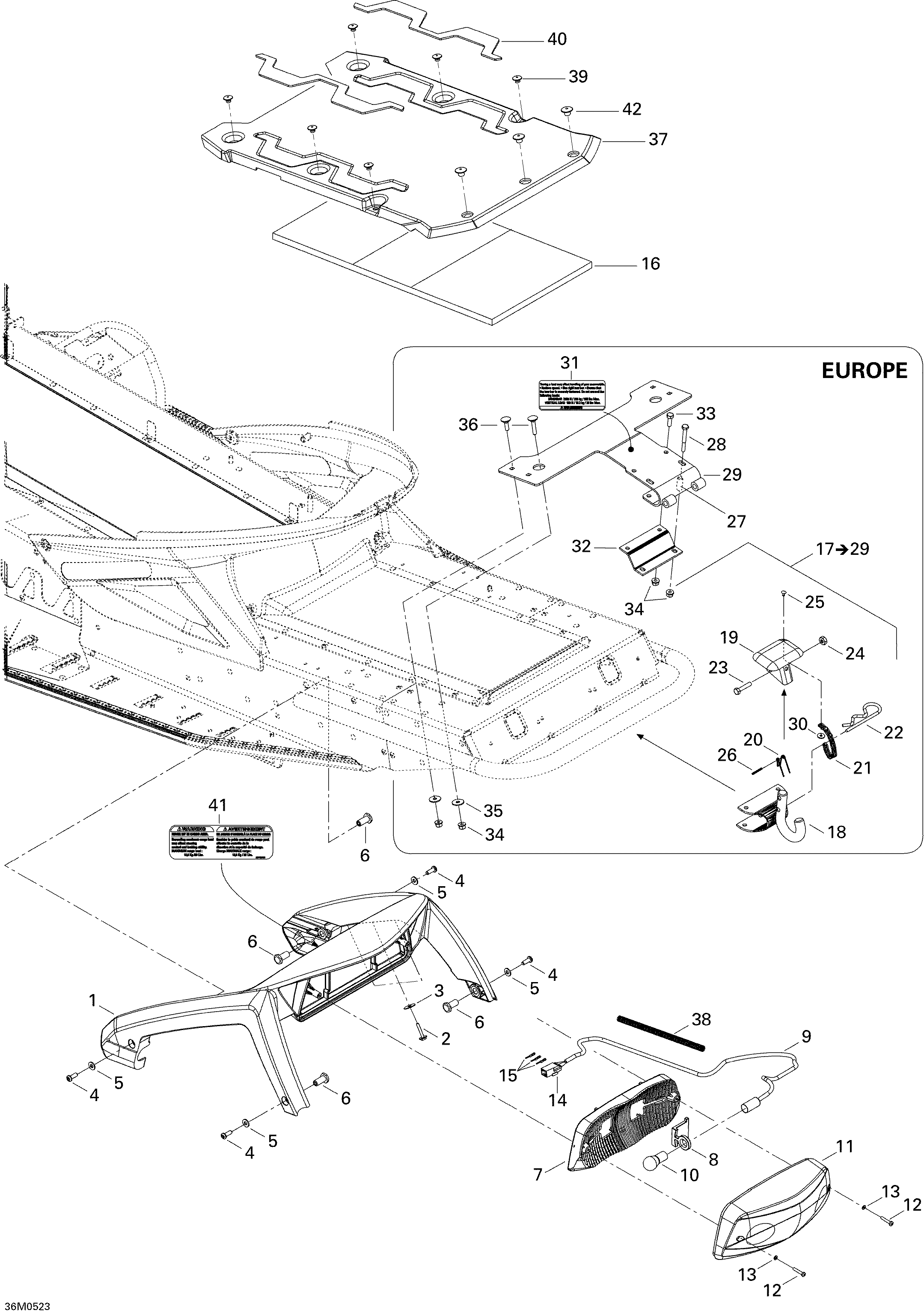

09- Luggage Rack для BRP Ski-Doo Summit 550F - 2005
-
№АртикулНазвание
-
1511000424 Luggage Rack. EuropeLuggage Rack. Europe
-
1511000425 Luggage RackLuggage Rack
-
2250000202 Self Tapping Screw #8 X 5/8Self Tapping Screw #8 X 5/8
-
3250200040 Flat WasherFlat Washer
-
4250000168 Socket Screw M6 X 16Socket Screw M6 X 16
-
5250200039 Flat WasherFlat Washer
-
6511000398 InsertInsert
-
7510004442 ReflectorReflector
-
8511000431 Bulb SupportBulb Support
-
9511000428 Bulb SocketBulb Socket
-
10410504100 Tail Lamp BulbTail Lamp Bulb
-
11511000315 LensLens
-
12209632580 Phillips Tapping Screw 3.9 X 25Phillips Tapping Screw 3.9 X 25
-
13414516400 WasherWasher
-
14515175494 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
15515175232 Male TerminalMale Terminal
-
16511000364 Radiator Cover ShimRadiator Cover Shim
-
17861789600 Hitch Ass'y Kit. Europe, Includes 17 to 26Hitch Ass'y Kit. Europe, Includes 17 to 26
-
18517199300 Hitch. EuropeHitch. Europe
-
19517152700 Hitch Protector. EuropeHitch Protector. Europe
-
20517152800 Spring. EuropeSpring. Europe
-
22114045200 Hair Pin. EuropeHair Pin. Europe
-
23207063044 Hex Screw M6 X 30. EuropeHex Screw M6 X 30. Europe
-
24232561414 Elastic Stop Nut M6. EuropeElastic Stop Nut M6. Europe
-
25390409400 Pop Rivet 5/32''. EuropePop Rivet 5/32''. Europe
-
26732804000 Spring Pin M3 X 24. EuropeSpring Pin M3 X 24. Europe
-
27517191700 Spacer. EuropeSpacer. Europe
-
28207065044 Hex Screw M6 X 50. EuropeHex Screw M6 X 50. Europe
-
29511000251 Fixation. EuropeFixation. Europe
-
31516002685 Hitch Security Label. EuropeHitch Security Label. Europe
-
32511000022 Reinforcement. EuropeReinforcement. Europe
-
33207162044 Hex Screw M6 X 20. EuropeHex Screw M6 X 20. Europe
-
34233261414 Elastic Flanged Nut M6. EuropeElastic Flanged Nut M6. Europe
-
35224061201 Flat Washer. EuropeFlat Washer. Europe
-
36207762044 Carriage Bolt M6 X 20. EuropeCarriage Bolt M6 X 20. Europe
-
37511000436 Radiator CoverRadiator Cover
-
37511000437 Radiator Cover. EuropeRadiator Cover. Europe
-
38515175442 Tubing, 6 mmTubing, 6 mm
-
39293150103 Rivet Pop 3/16''Rivet Pop 3/16''
-
40511000396 CarpetCarpet
-
41516002666 Maximum Cargo Load LabelMaximum Cargo Load Label
-
42293730006 Black DartBlack Dart
